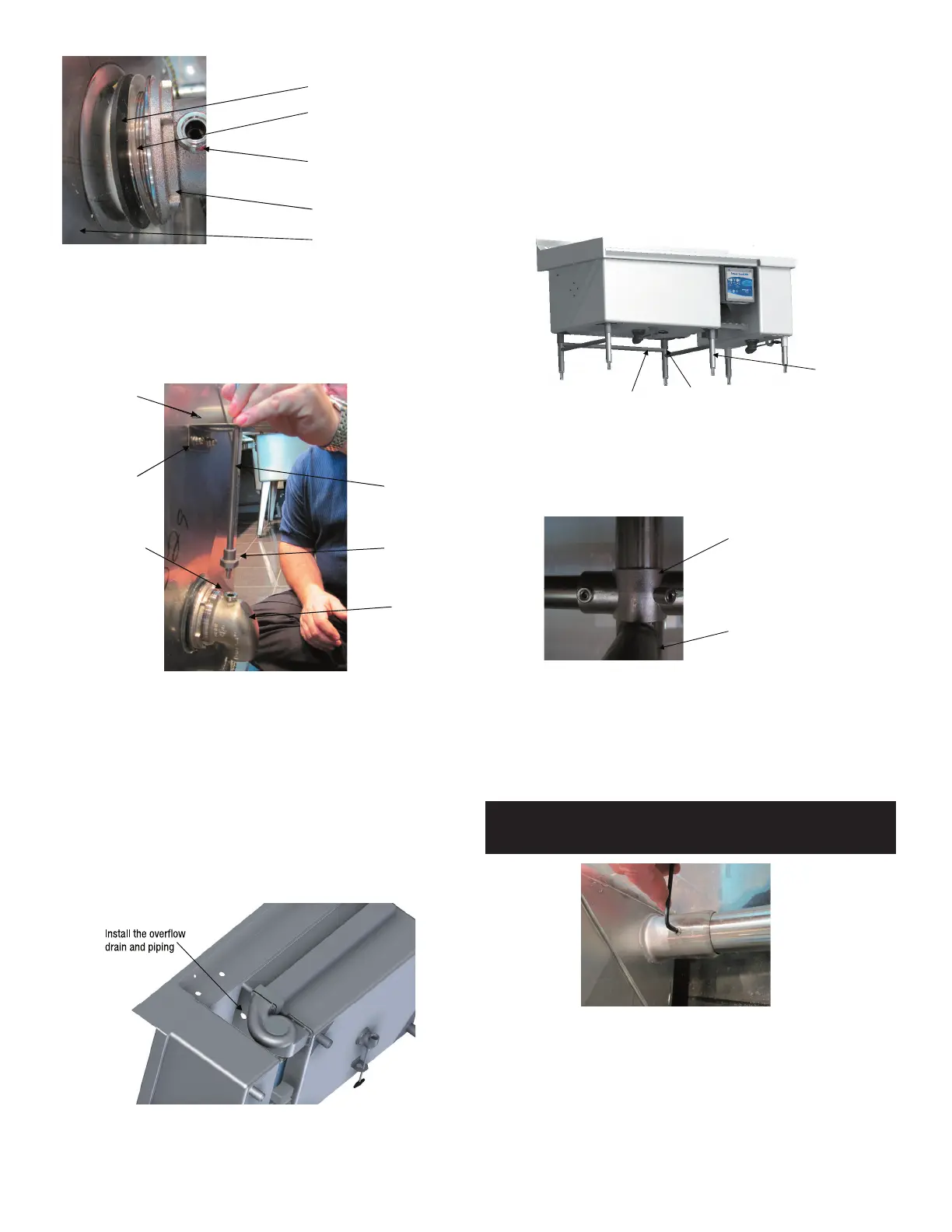

7 OM-SKEWER SOAK
RUBBER VIBRATION RING
TEFLON RING
FLANGE NUT
HANDLE CONNECTION
ORIENTED TOWARD THE
FRONT OF THE MACHINE.
BOTTOM OF SINK (Sink is laying
on its back side in this illustration)
Using two nuts, attach the drain handle bracket to the studs on the bottom of the
tank. Insert the drain valve handle through the bracket and into the drain body. It
may be necessary to rotate the handle a partial turn to align the flats on the end of
the handle shaft with the flats on the valve so that the handle will fully insert into the
valve. Secure the handle to the valve body by screwing the handle nut onto the valve
body connection.
HANDLE
BRACKET
HANDLE
HANDLE NUT
VALVE BODY
CONNECTION
FOR HANDLE
DRAIN
BODY
NUTS
While holding the drain body to prevent it from rotating, tighten the flange nut with a
wrench to firmly seat the nut against the rubber vibration ring and the vibration ring
against the surface of the sink (approximately ¼ turn past “hand tight”). Wipe or trim
the excess sealant from around the drain flange inside the sink. If silicone is used,
allow the sealant to dry before filling the sink with water (see instructions on the side
of the sealant container for drying time). After the sealant has dried, fill the sink with
water and check for leaks around the drain. Plumber’s Putty does not require a drying
time and may be leak tested right away.
Overflow Drain
Place some cardboard or soft packing material on the floor to prevent scratching the
surface and set the sink over on to its front face in order to see the top overflow drain
hole.
The top overflow drain on the side wall of the Skewer wash tank will need to have the
drain installed and piping (not furnished by Power Soak Inc.) connected to the drain.
It is easier to install the plumbing from the drain to a location below the motor before
the sink is set upright.
Install Legs
The Skewer Soak is usually shipped without the leg assembly attached to the machine.
Different options have different types of leg assemblies. Some leg assemblies are all
welded together and others are pieces that need to be assembled. If the leg set is
welded together, skip to the section labeled “Leg Set and Sink”.
Leg Set Assembly
Locate the two leg end weldments and stretcher. The stretcher is the horizontal
tube that connects between the legs to provide lateral stability to the legs. The long
stretcher will be installed between the back legs of the Skewer wash tank.
INSTALL THE LONG
STRETCHER BETWEEN
BACK LEGS
INSTALL THE SOCKETS
ABOVE THE WELD JOINT
LEG END
WELDMENT
Orient the stretcher socket with the set screw facing toward the interior of the sink
and then slide the stretcher sockets over the top of the leg sets so that the stretcher
will be positioned above the welded joint of the leg when the legs are assembled onto
the sink. Install the long stretcher between the leg sets by inserting it into the sockets
before inserting the legs into the sockets on the bottom of the Skewer Wash tank.
SET SCREWS ARE ORIENTED
TOWARD THE INTERIOR OF
THE SINK AND THE SOCKET IS
ON TOP OF THE WELDED
STRETCHER
WELDED STRETCHER
Leg Set and Sink
Insert the leg assembly into the sockets on the bottom of the sink. Insert the leg set
into the sanitizer sink (sanitizer sink is an option and may not be included). Be sure
that all the legs are seated in the bottom of the sockets. Use an allen wrench (5/32)
to tighten the set screws in all of the sockets. After tightening the set screws, apply
silicone sealant (supplied with the machine) to the set screw openings in order to seal
the openings in a clean and sanitary manner.
IMPORTANT:
AFTER TIGHTENING THE SET SCREWS, FILL THE OPENINGS IN A CLEAN
AND SANITARY MANNER WITH THE SILICONE SEALANT THAT IS SUPPLIED
WITH THE MACHINE.
Adjusting the Feet
Use a tape measure and adjust the feet to the approximate height required. Turn the
hexagon foot clockwise to shorten the height of the sink or counterclockwise to raise
the height of the sink. Final adjustment of the feet will be done after the sink is in the
installed location. Set the sink and leg assembly upright on its feet.
