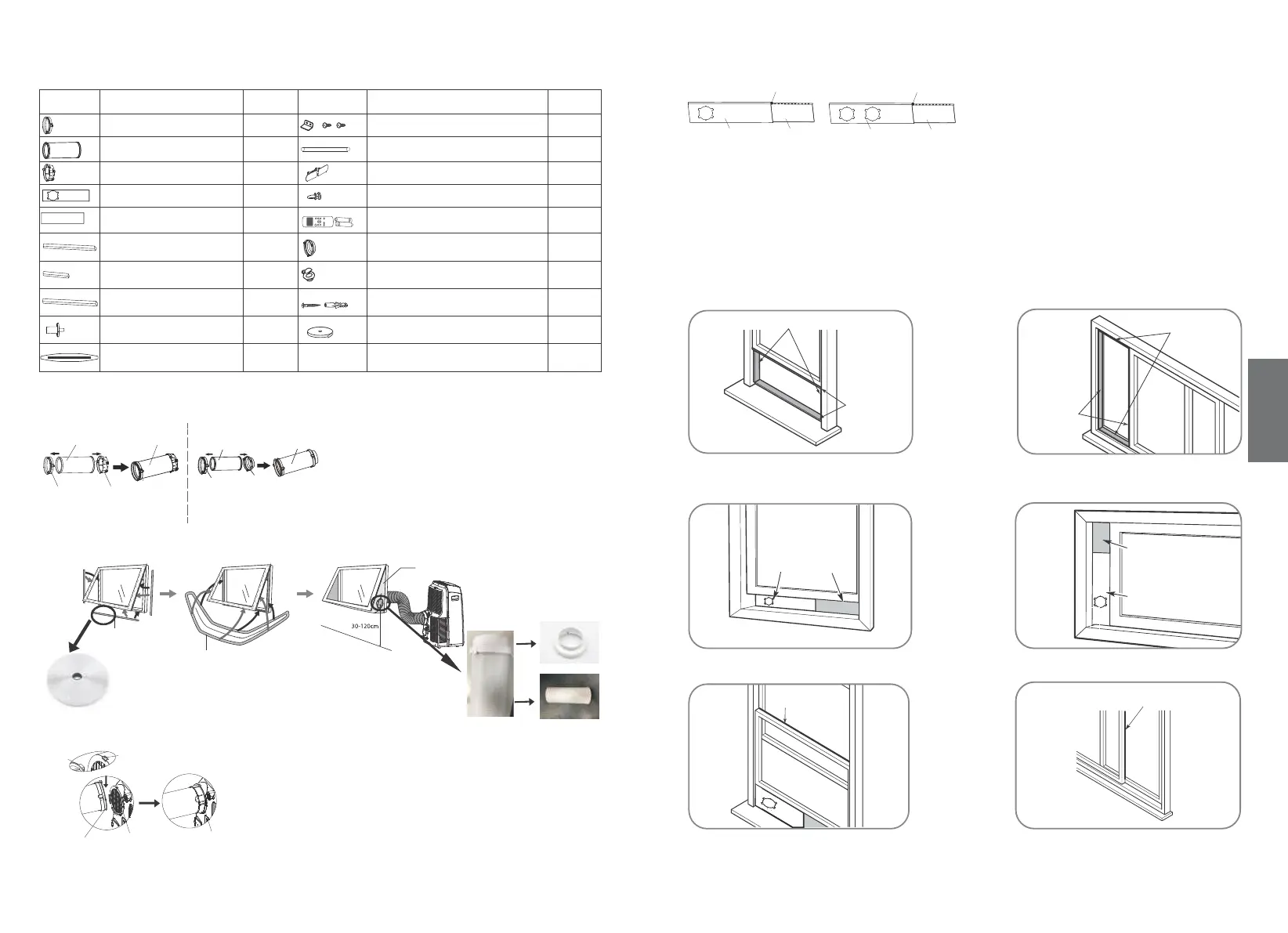

Accessories
Shape Name of Accessories Qty. Shape Name of Accessories Qty.
Unit Adaptor
Exhaust Hose
Window Slider A
Window Slider B
Foam Seal A (Adhesive)
Foam Seal B (Adhesive)
Foam Seal C (Non-adhesive)
Drain Hose Adaptor
(only for heat pump mode)
Sealing Cloth
1 pc
1 pc
1 pc (*)
1 pc (*)
1 pc (*)
2 pc (*)
2 pc (*)
1 pc (*)
1 pc (*)
1 pc (*)
1 set (*)
1 pc
1 pc
1 pc (*)
1 set (*)
1 pc (*)
1 pc (*)
4 set (*)
1 pen
Security Bracket and 2 Screws
Drain Hose
Power Cord Buckle
Bolt
Remote Controller and Battery
(only for remote control models)
Wall Exhaust Adaptor A
(only for wall installation models)
Wall Exhaust Adaptor B (with cap)
(only for wall installation models)
Screw and anchor
(only for wall installation models)
Magic Tape
Window Slider Adaptor
Window Installation Kit
Step One: Preparing the Exhaust Hose assembly
Press the exhaust hose (or extended exhaust
hose) into the window slider adaptor (or wall
exhaust adaptor) and unit adaptor, clamp
automatically by elastic buckles of the adaptors.
Exhaust hose
Unit adaptor
Window slider adaptor
Exhaust hose
assembly
Type window installation
Exhaust hose
Unit adaptor
Exhaust hose
assembly
Wall exhaust
adaptor A
Type window installation
Magic Tape
Sealing Cloth
Hook
Hole seat
Adaptor
Lower groove
Make sure the adaptor is
inserted into the lower
groove of the air outlet
Window Installation
Sealing Cloth
Step Two: Install the Exhaust hose assembly to
the unit
Insert unit adaptor of the Exhaust hose
assembly into the lower groove of the air outlet
of the unit while the hook of the adaptor is
aligned with the hole seat of the air outlet and
slide down the Exhaust hose assembly along the
arrow direction for installation.
Step Three: Preparing the Adjustable Window
Slider
Depending on the size of your window, adjust
the size of the window slider.
If the length of the window requires two or three
window sliders, use the bolt(s) to fasten the
window sliders once they are adjusted to the
proper length.
Bolt
Window slider A Window slider B
MODEL A MODEL B
Bolt
Window slider A Window slider B
Installation
NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared,
choose from one of the following two installation methods.
Type 1: Hung Window or Sliding Window Installation
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
OR
1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to
the window sash.
Window
slider A
Window
slider B
(if required)
Window slider A
Window slider B
(if required)
OR
2. Insert the window slider assembly into the window opening.
3. Cut the non-adhesive foam seal C strip to match the width (or height) of the window.
Insert the seal between the glass and the window frame to prevent air and insects from
getting into the room.
Foam seal C
(Non-adhesive type)
Foam seal C
(Non-adhesive type)
OR
2322
GB
