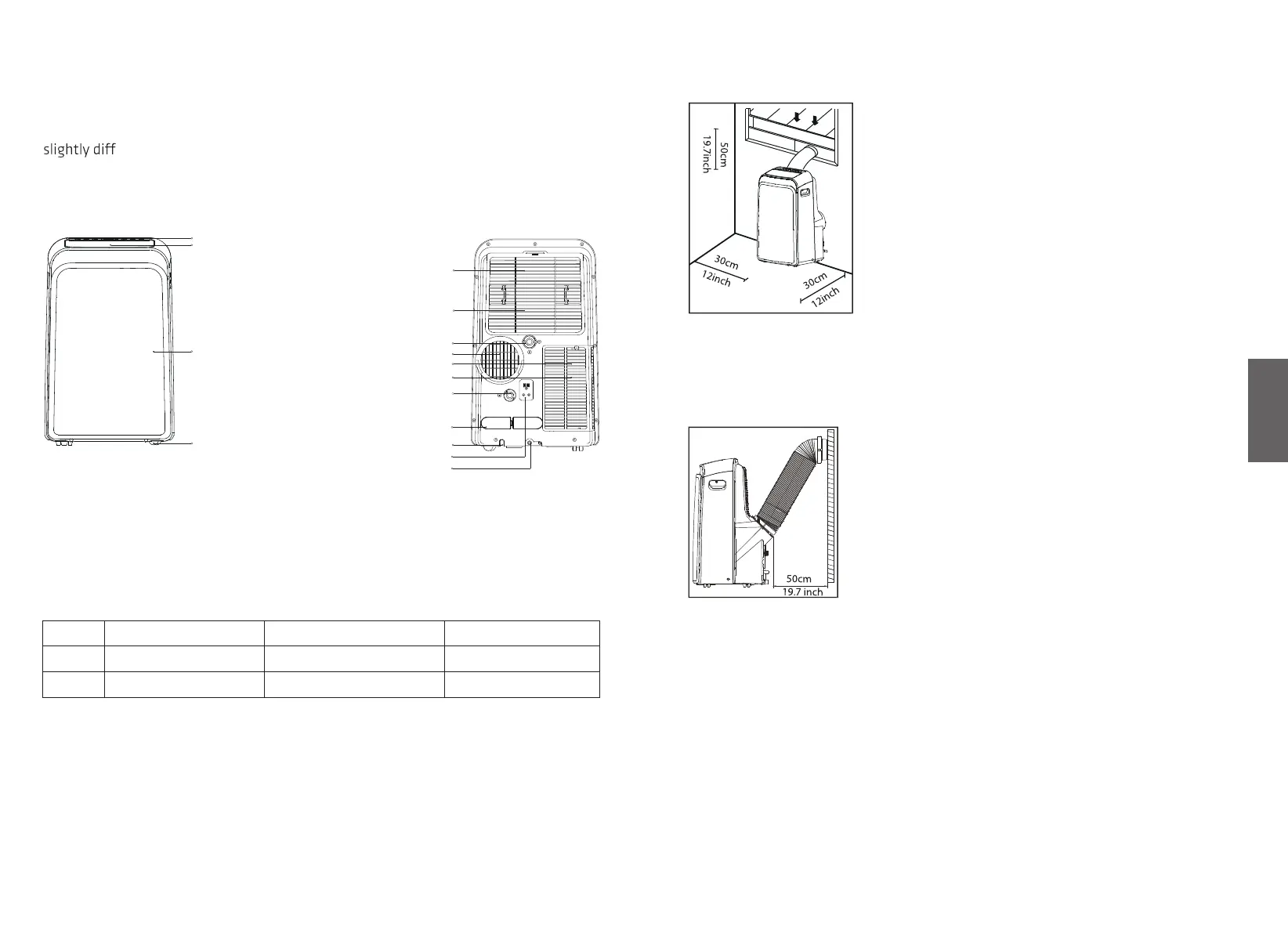

Installation Instructions
Preparation
NOTE:
All the illustrations in the manual are for explanation purpose only. Your unit may be
erent.
The actual shape shall prevail. The unit can be controlled by the unit control panel alone
or with the remote control. This manual does not include Remote Control Operations,
see the <<Remote Control Instruction>> packed with the unit for details.
Control panel
Horizontal louver blade
(swing automatically)
Panel
Caster
Front
Upper air filter
(behind the grille)
Upper air intake
Drain outlet
Air outlet
Lower air outlet
Lower air intake
Power cord buckle
Power cord outlet
Power plug socket
Bottom tray
Drain outlet
Rear
Design Notice
In order to ensure the optimal performance of our products, the design specifications
of the appliance and remote control are subject to change without prior notice.
Ambient Temperature Range For Unit Operating.
MODE
Cool
Dry
Temperature Range
17-35°C(62-95°F)
13-35°C(55-95°F)
MODE
Heat(pump heat mode)
Temperature Range
5-30°C(41-86°F)
Exhaust hose Installation
The exhaust hose and adaptor must be installed or removed in accordance with the
usage mode. For COOL, HEAT (heat pump type) or AUTO mode must be installed
exhaust hose. For FAN or DRY mode, the exhaust hose must be removed.
Your installation location should meet the following
requirements:
• Make sure that you install your unit on an even surface
to minimize noise and vibration.
• The unit must be installed near a grounded plug, and
the Collection Tray Drain (found on the back of the unit)
must be accessible.
• The unit should be located at least 30cm (12”) from the
nearest wall to ensure proper air conditioning. The
horizontal louver blade should be at least 50cm (19.7”)
away from obstacles.
• DO NOT cover the Intakes, Outlets or Remote Signal
Receptor of the unit, as this could cause damage to the
unit.
Recommend Installation
Choosing The Right Location
Energy Rating Information
The energy rating and noise information for this
unit is based on the standard installation using an
un-extended exhaust duct (Diameter:150mm,
Length:1.5m) without window slider adaptor or
wall exhaust adaptor A.
Tools Needed
• Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;
• Saw (On some models, to shorten window adaptor for narrow windows)
2120
GB
Drain outlet
