32

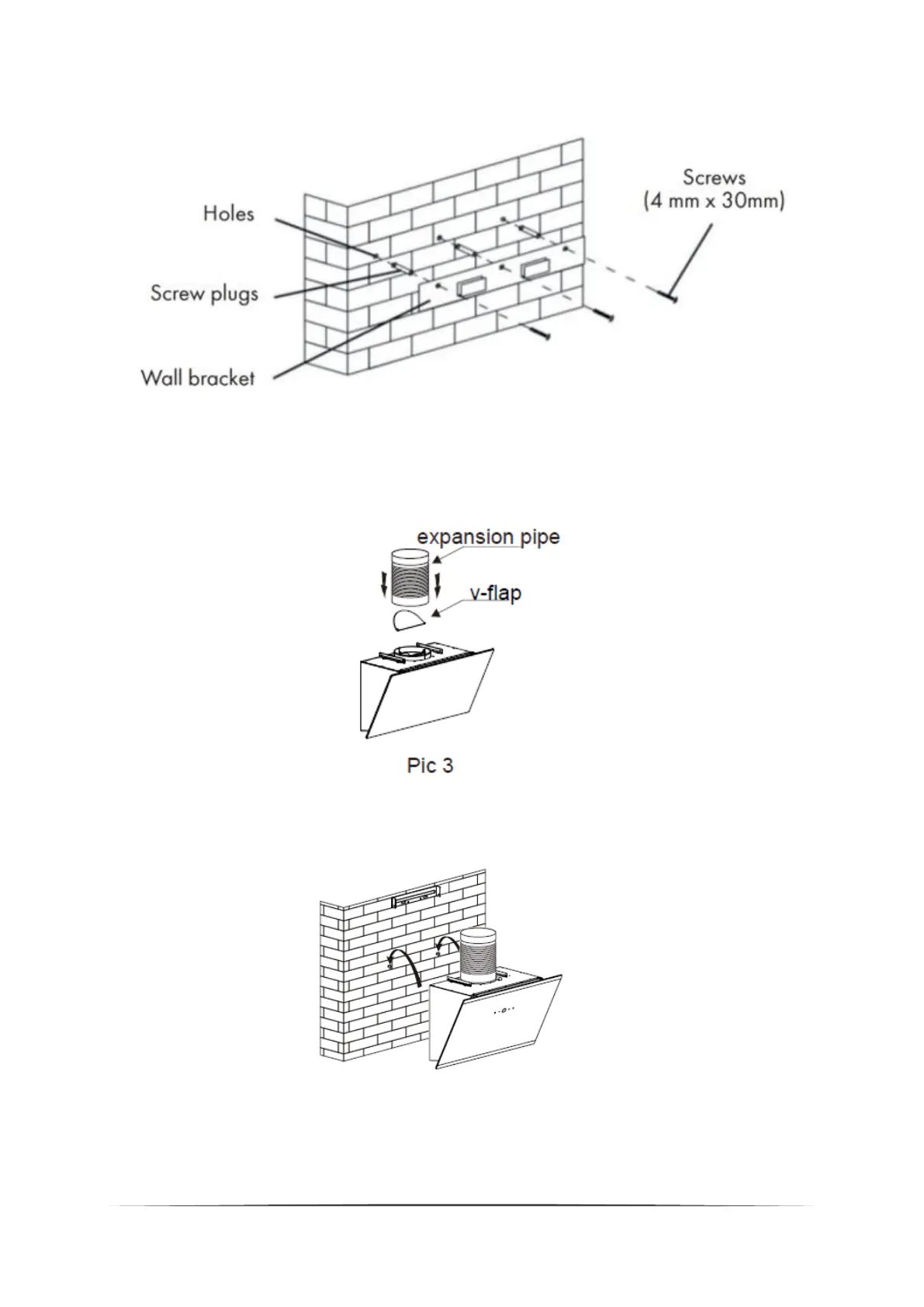

Pic 2
9. Install the v-flap and expansion pipe onto the cooker hood. See Pic 3.
10. Put the hood hang on the wall in the fixed position, adjusting the cooker hood
position, fix the cooker hood with 2pcs ST4*30mm safety screws. Note: The
two safety vents are positioned on the back housing, with a diameter of 6mm.
See pic 4&6.
Pic 4
11. Install the outside chimney bracket onto the outside chimney with 2 pcs
ST4*8mm screws, make sure the inside chimney can be flexed freely. See Pic
5. And then put the chimney to the hood, use 2 pcs ST4*8mm screws fix the
