WARNING! Do not damage the wiring in the wall while drilling. RISK
OF ELECTRIC SHOCK!
NOTICE! At least two persons are required for installation.
If you have an exhaust air duct to the outside, the extractor hood can be installed
by using an exhaust hose (Diameter of the exhaust hose: s. chapter 6. TECHNICAL
DATA).

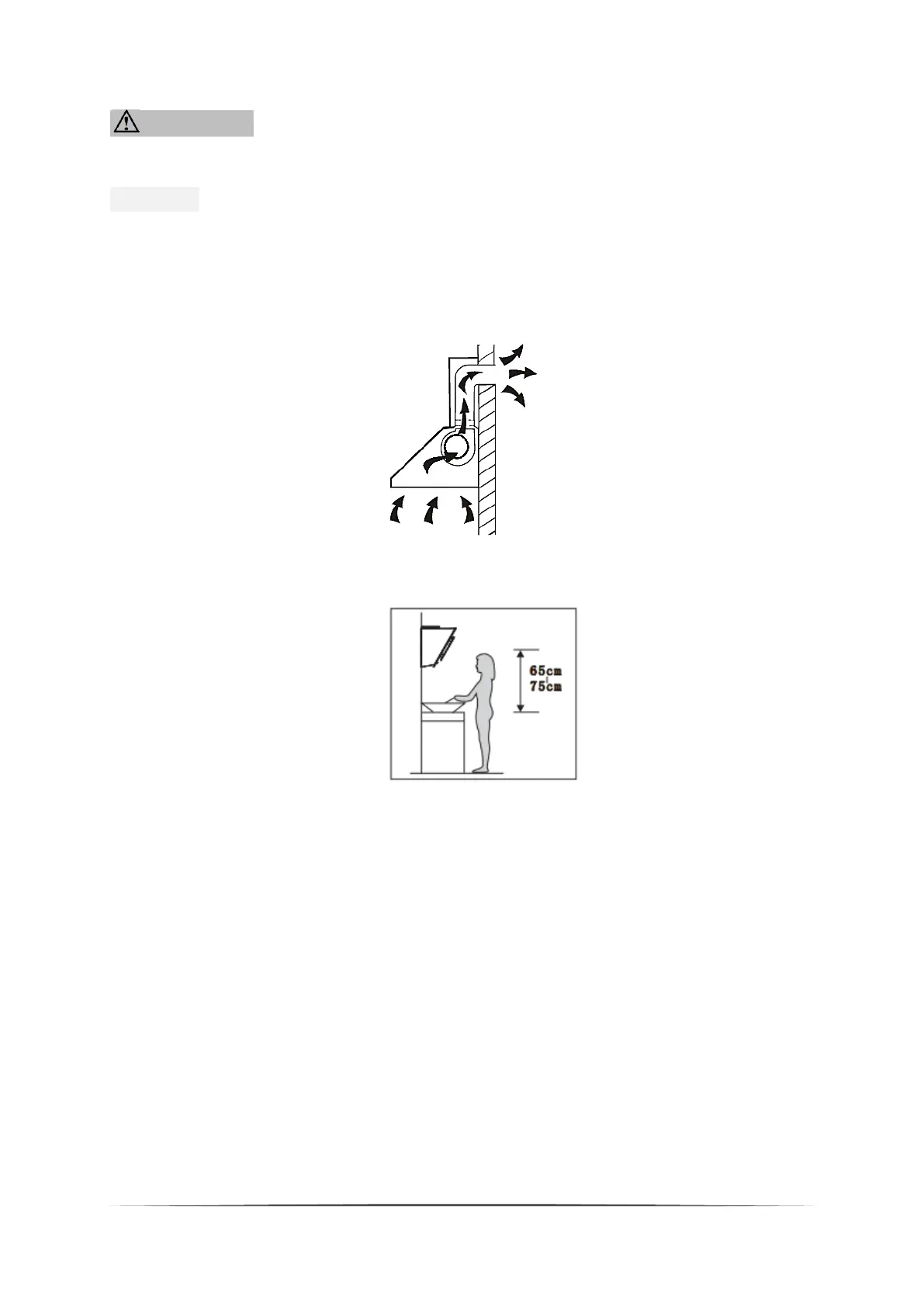

➢ S. fig. below
2.3.1 Installation steps
Pic 1
7. After deciding the cooker hood height, measure the position of the holes for
hanging hood and inside chimney bracket. Drill 8 φ8 holes and keep the hood
level. The fixed position of the inside chimney bracket is the highest place of
inside chimney. See pic 2.
8. Screw 2pcs 4 x 30mm screws on the wall with wall plugs and
the mounting screws installed should leave for 3-5mm out of the wall to hang
the hood, then use 2pcs 4mm x 40mm screws to fix the inside chimney
bracket. See Pic 2.
