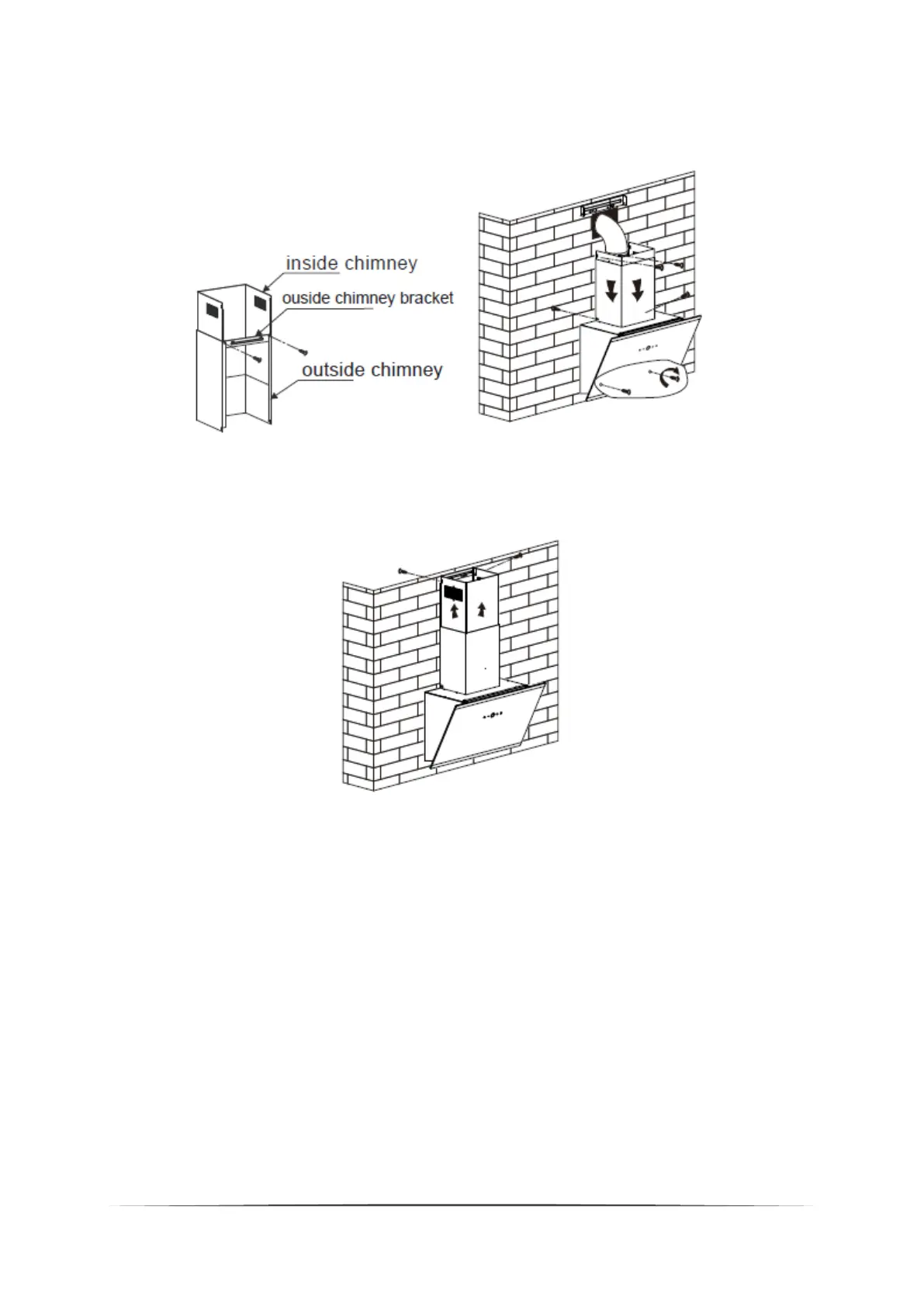

outside chimney to the hood body and the use 2pcs ST4*40mm fix it on the
wall. Lay the expansion pipe to the outside at the same time. See pic 6.
Pic 5 Pic 6
12. Adjust the height of the inside chimney to the position of the inside chimney
bracket and fix it with 2pcs ST4*8mm screws. See Pic 7.
Pic 7
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize
pressure loss.
• Failure to observe these basic instructions will reduce the performance and
increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent
person.
• Do not connect the ducting system of the hood to any existing ventilation system
which is being used for any other appliance, such as warmer tube, gas tube, hot
wind tube.
