~ 55 ~
INSTALLATION STEPS

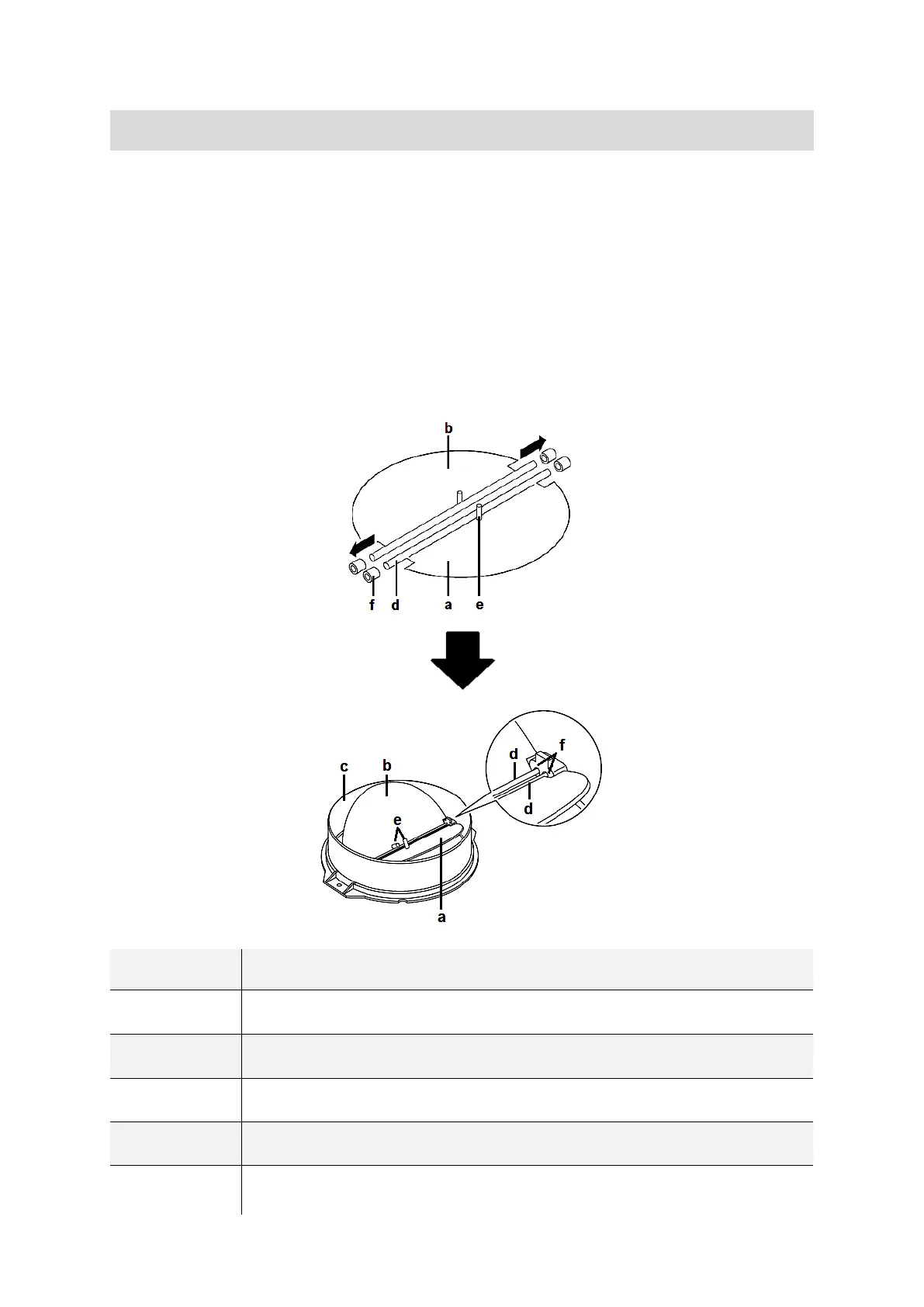

5. The two individual damper sections (a / b) each consist of a semicircle including
an axle (d). An axle pin (e / see illustration below) is located in the middle of the
axle (d) of a damper section.
6. Carefully insert the axle (d) of a damper section into the corresponding openings
(f / on both sides) in the housing of the exhaust air outlet (c); the axle pin (e)
must be pointing upwards (see fig. below).
7. Repeat the 2nd step for the other flap section.
8. Make sure that both parts of the non-return flap are properly installed. The flap
parts must not jam or get caught.
a
NON-RETURN FLAP: flap part " a "
b
NON-RETURN FLAP: flap section " b "
c
HOUSING OF THE EXHAUST AIR OUTLET
d
AXLES
e
AXLE PINS
f
OPENINGS IN THE HOUSING OF THE EXHAUST AIR OUTLET (on
both sides)
