~ 54 ~

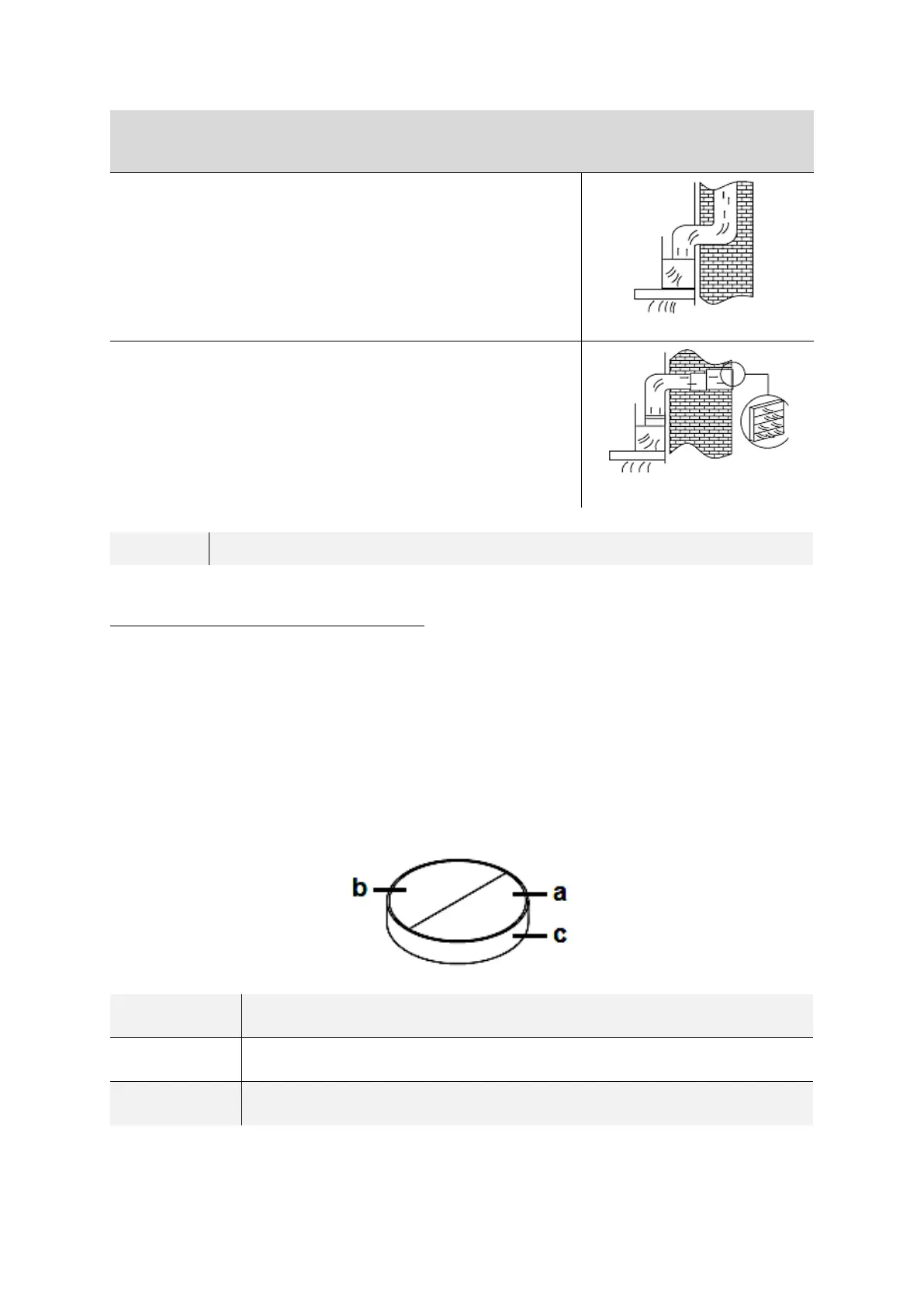

YOU CAN ROUTE THE EXHAUST AIR DUCT AS FOLLOWS
(ONLY FOR EXHAUST AIR OPERATION)
Vertical: The exhaust air hose is routed to an outlet
cap* in the roof.
Fig. similar.
Horizontal: The exhaust air hose is routed to an outlet
opening with grille* in the house wall.
Fig. similar.
*
Item not included in the scope of delivery.
2.5.1 Installing the non-return flap
❖ If the non-return flap is not installed on your appliance at the factory, you still
need to install it. The following illustrations only show an example of the
standard installation of a non-return flap, as the exhaust air outlet may vary
depending on the model and configuration of the appliance.
❖ The non-return damper consists of two damper parts (a / b). Both damper parts
must be installed individually in the housing of the exhaust air outlet (c) (see fig.
below).
a
NON-RETURN FLAP: flap part " a "
b
NON-RETURN FLAP: flap section " b "
c
HOUSING OF THE EXHAUST AIR OUTLET
