Inline product groups

6452_en_11 Phoenix Contact 51 / 188

5.2.12 Inline adapter terminal (INTERBUS-Master) at a

PLCnext Control

The AXC F IL ADAPT Inline adapter terminal , item no. 1020304, is an INTERBUS master.

The terminal is designed to be aligned to the right of an Axiocontrol series PLCnext Con-

trol device.

The Inline adapter terminal can be used to set up an Inline station for PLCnext Technol-

ogy and to integrate INTERBUS devices.

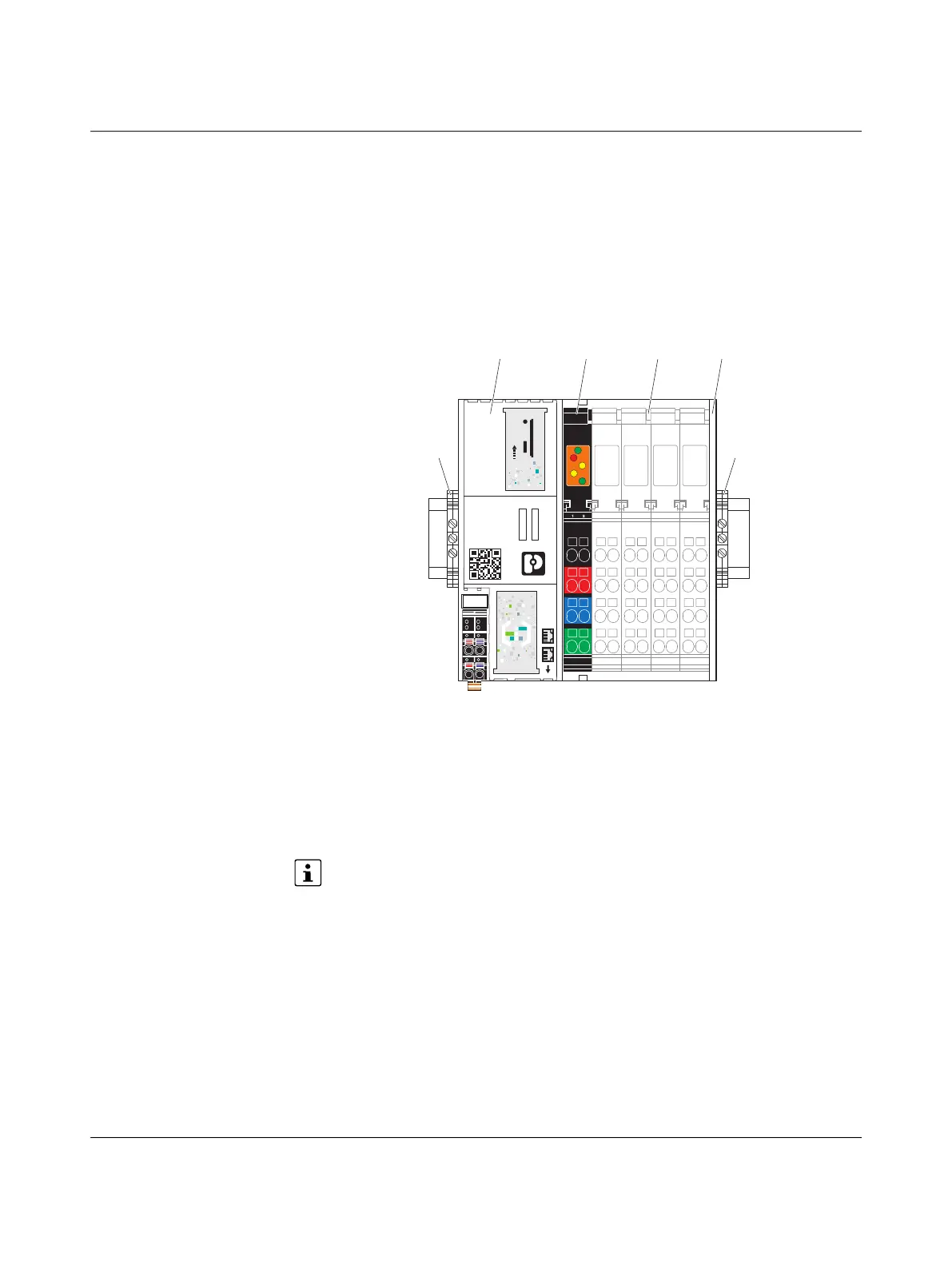

Figure 5-18 Example of the design of an Inline station

1 End clamp (e.g., CLIPFIX 35-5, Item No. 3022276)

2 PLCnext control for Axioline F (in the example: AXC F 2152)

3 Inline adapter terminal (AXC F IL ADAPT, Item No. 1020304)

4 Inline terminals corresponding to the application

5 End plate (snap onto the DIN rail as station end, included in the scope of supply of

the Inline adapter terminal)

Detailed information can be found in the terminal-specific data sheet.

SD-CARD

R

X4

MAC Addr.: XX.XX.XX.XX.XX.XX

Ord.

No. 2404267

AXC F 2152

X1

X2

1

2

BSA

U

PF

RDY

FAIL

1

3 4 5
