5.2.13 Branch terminals (no longer in product range)

5.2.13.1 Branch terminal for integrating a Fieldline Modular local bus in an Inline

station

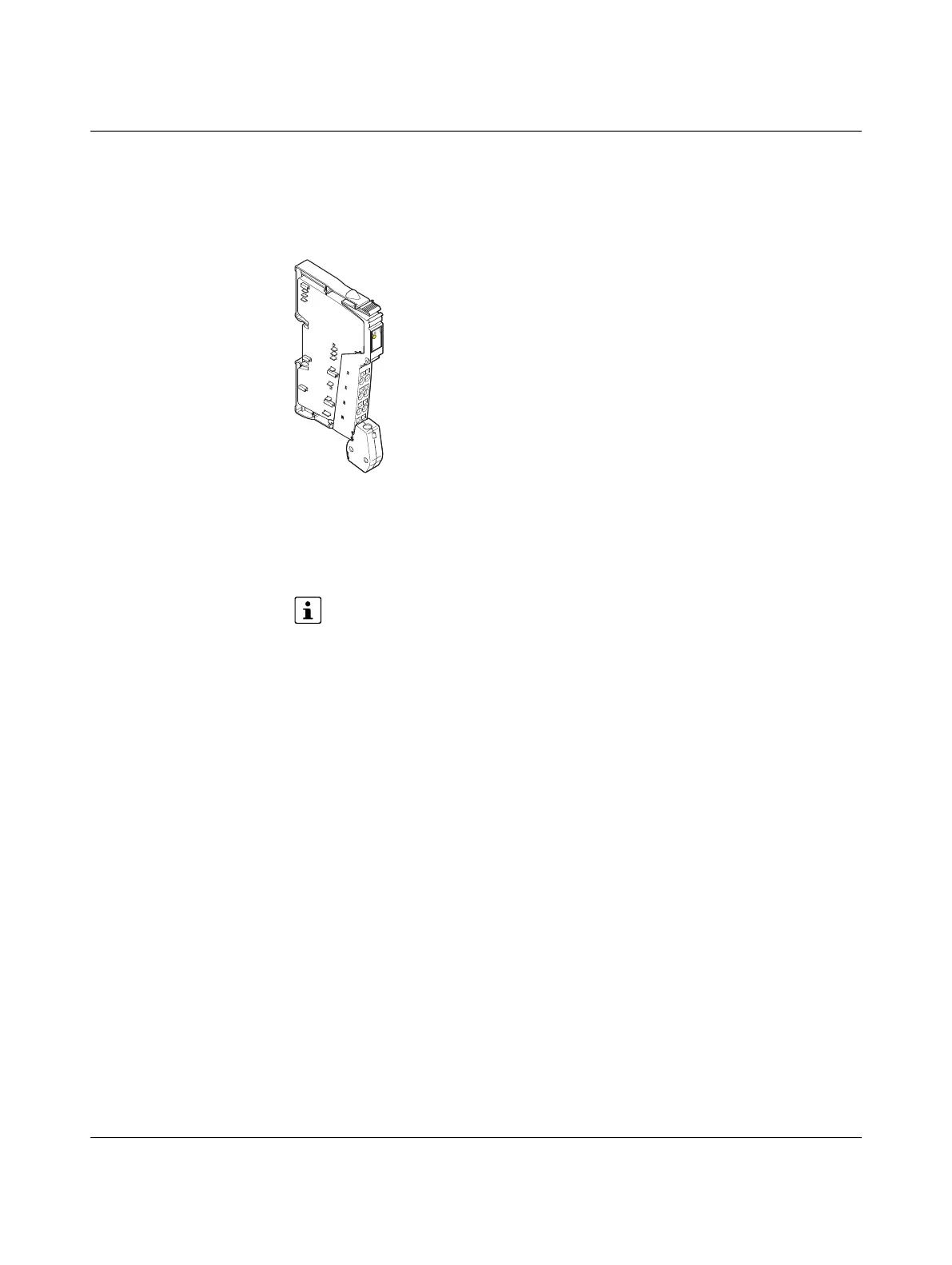

Figure 5-19 Example of a branch terminal: IB IL 24 FLM-PAC

These branch terminals can be used to integrate sensors and actuators in close proximity

to the station, which are connected to the Fieldline Modular M8 or M12 local bus with

IP65/67 protection, in your bus system.

The terminal converts the physical transmission method of the Inline local bus to the

physical transmission method of the Fieldline Modular local bus.

For additional information, refer to the terminal-specific data sheet and the docu-

mentation for Fieldline Modular.
