IL SYS INST UM E

28 / 188 Phoenix Contact

6452_en_11

5.2.4 Example of an Inline station

Figure 5-2 shows a typical Inline station. It contains just a few terminals from the exten-

sive product range. The functions and special features of the individual product groups

are described in the sections below.

In addition, Figure 5-2 also shows the structure of the main and segment circuits. This

structure can be created using power and/or segment terminals (see Section “Power,

segment, and accessory terminals” on page 30).

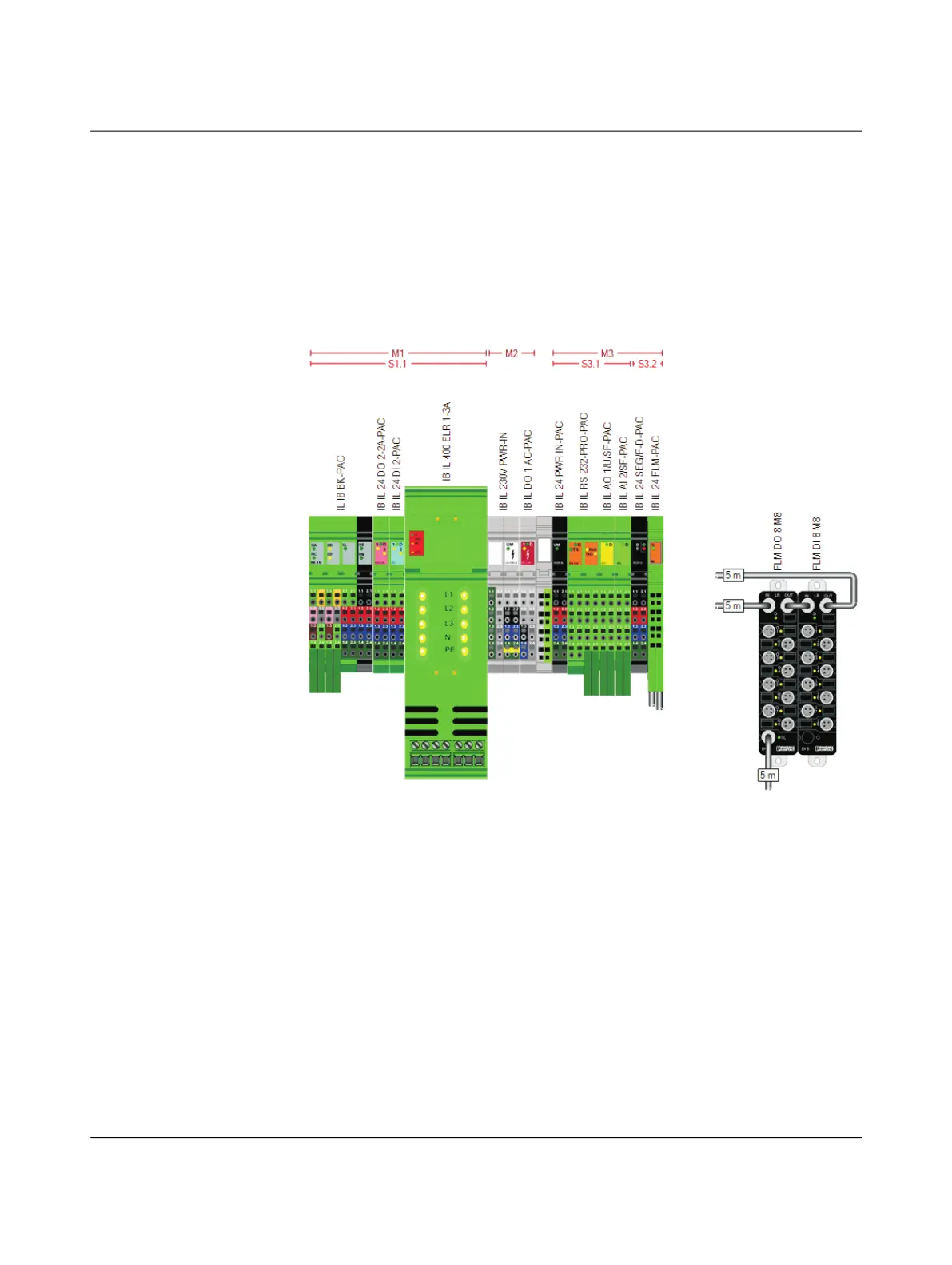

Figure 5-2 Typical Inline station

1 Bus coupler (here: with supply voltages supplied)

2 I/O terminals for 24 V area

3 Power-level terminal

4 Power and end terminal for a 230 V area

5 Output terminal for 230 V area

6 Power terminal for 24 V area

7 Segment terminal

8 Branch terminal (here: to connect Fieldline Modular M8 devices)

9 Fieldline Modular M8 devices

122 222

3

44

5

6

7

8

9

-PAC

M1, M2, M3 Main circuit 1, 2, 3

S1.1 Segment circuit 1 in main circuit 1

S3.1, S3.2 Segment circuit 1 and 2 in main circuit 3
