Inline product groups
6452_en_11 Phoenix Contact 29 / 188
5.2.5 Bus couplers and terminals with remote bus branch

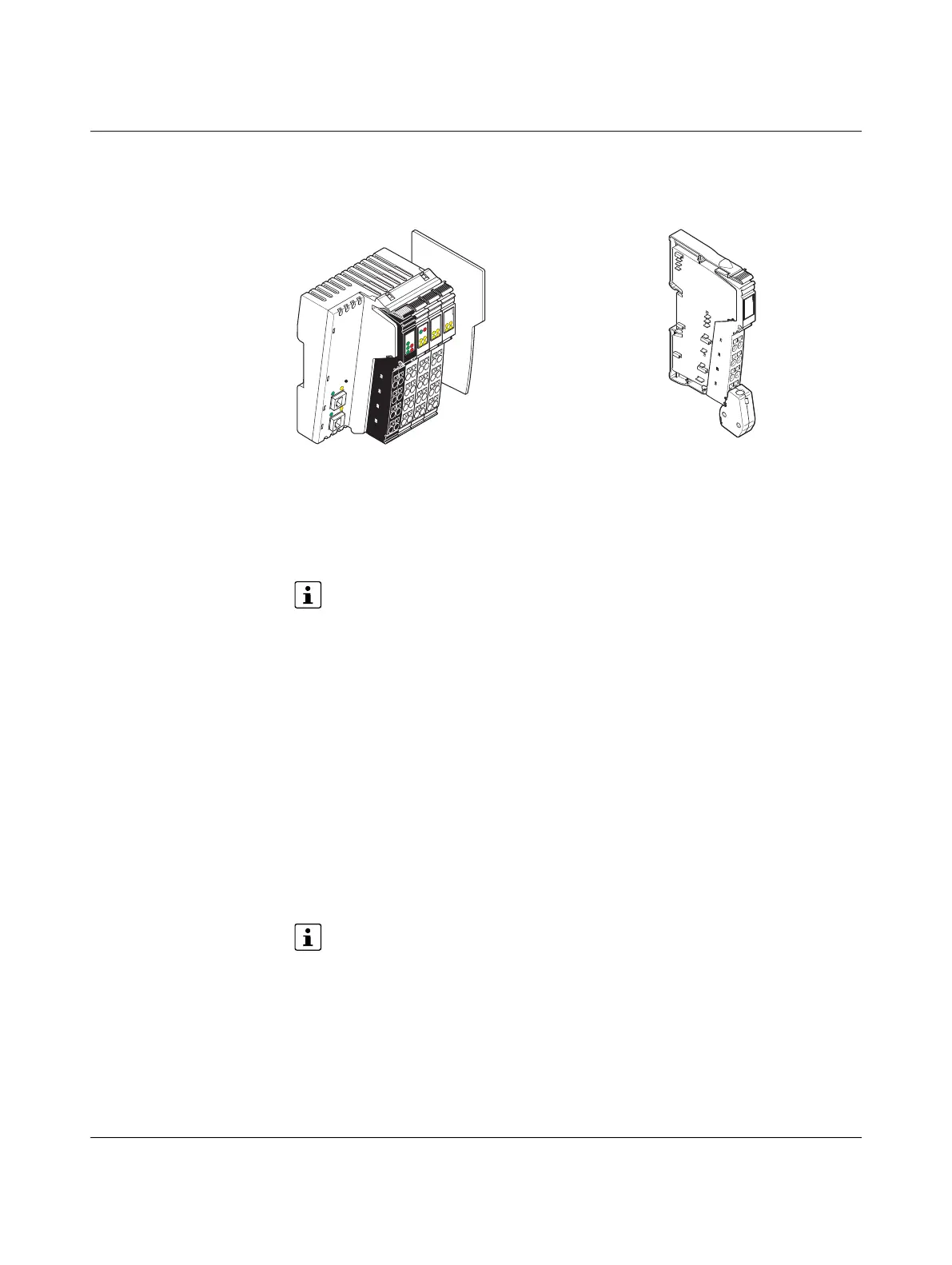

Figure 5-3 Example: Bus coupler and terminal with remote bus branch
5.2.5.1 Bus coupler
A bus coupler is required to connect an Inline station to a bus. Bus couplers are available
for various bus systems (see Table 5-1).
The bus couplers are described in detail in a separate document.
Not all Inline terminals can be used with every bus coupler.
INTERBUS:
Every Inline I/O terminal can be operated downstream of an INTERBUS bus cou-
pler.
Other bus systems/networks:
The Project+ software is available as a configuration tool for Inline stations.
Use this software particularly when you configure stations at bus couplers that sup-
port a bus system or network other than INTERBUS.
You will be notified by the software if there are restrictions for I/O terminals.
5.2.5.2 Terminals with remote bus branch
A terminal with remote bus branch can be used downstream of the following bus cou-
plers:
– INTERBUS bus coupler IBS IL 24 BK ...
– PROFINET bus coupler IL PN BK-PAC
– Ethernet bus coupler IL ETH BK-PAC
For more detailed information about this, please refer to the IB IL SYS PRO UM E
user manual or the data sheet for the terminal with remote bus branch.
Bus coupler for PROFINET:
IL PN BK DI8 DO4 2TX-PAC
Terminal with remote bus branch:
IBS IL 24 RB-T-PAC
UL
US
UM
BF
SF
PWR
DE
O1
1
3
2
4
I1
1
3
2
4
I2
65
87
LN
K
1
ACT1
LNK
2
ACT
2
X
1
X2
R
ES
ET
