IL SYS INST UM E

146 / 188 Phoenix Contact

6452_en_11

Insert the assembled connector into connection X11 () of the power-level terminal

(Figure 12-14, Figure 12-15).

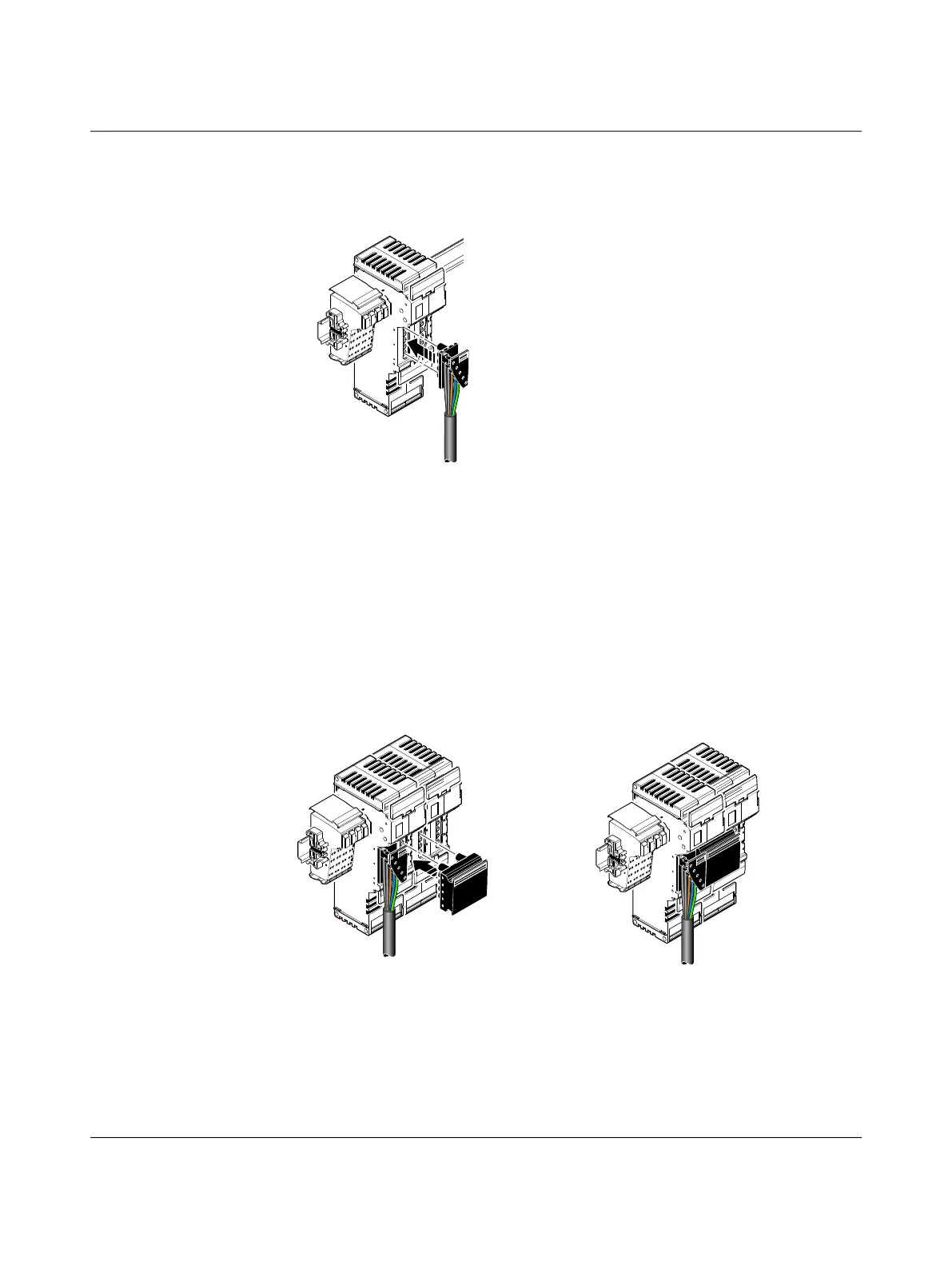

Figure 12-15 Connecting a power connector

You can forward the mains supply using a power bridge.

If several power-level terminals are connected one after the other, a power-level termi-

nal can be connected to the preceding power-level terminal using a power bridge. If the

preceding terminal is supplied with voltage, this voltage is led via the power bridge.

• Insert the power bridge on two adjacent power-level terminals so that connection

X12 (outgoing mains) of the preceding terminal is connected to connection X11 (in-

coming mains) of the following terminal. The power bridge can carry a maximum of

20 A.

Figure 12-16 Inserting a power bridge Figure 12-17 Power-level terminals

with a mains connector

and power bridge
