Connecting cables

6452_en_11 Phoenix Contact 147 / 188

12.6.2 Connecting the motor circuit connector

WARNING: Dangerous contact voltage

Only connect or remove the motor circuit connector when the mains voltage is dis-

connected.

The motor output is connected via a 4-pos. HV-COMBICON connector.

When assembling the motor circuit connector, proceed as shown in Figure 12-18:

• Strip approximately 30 mm off the cable sheath (detail A) and 7 mm off the wires

(detail B). Fit the wire ends with ferrules.

• Connect the wires to the connector (detail C). The pin assignment is shown in

Table 12-8.

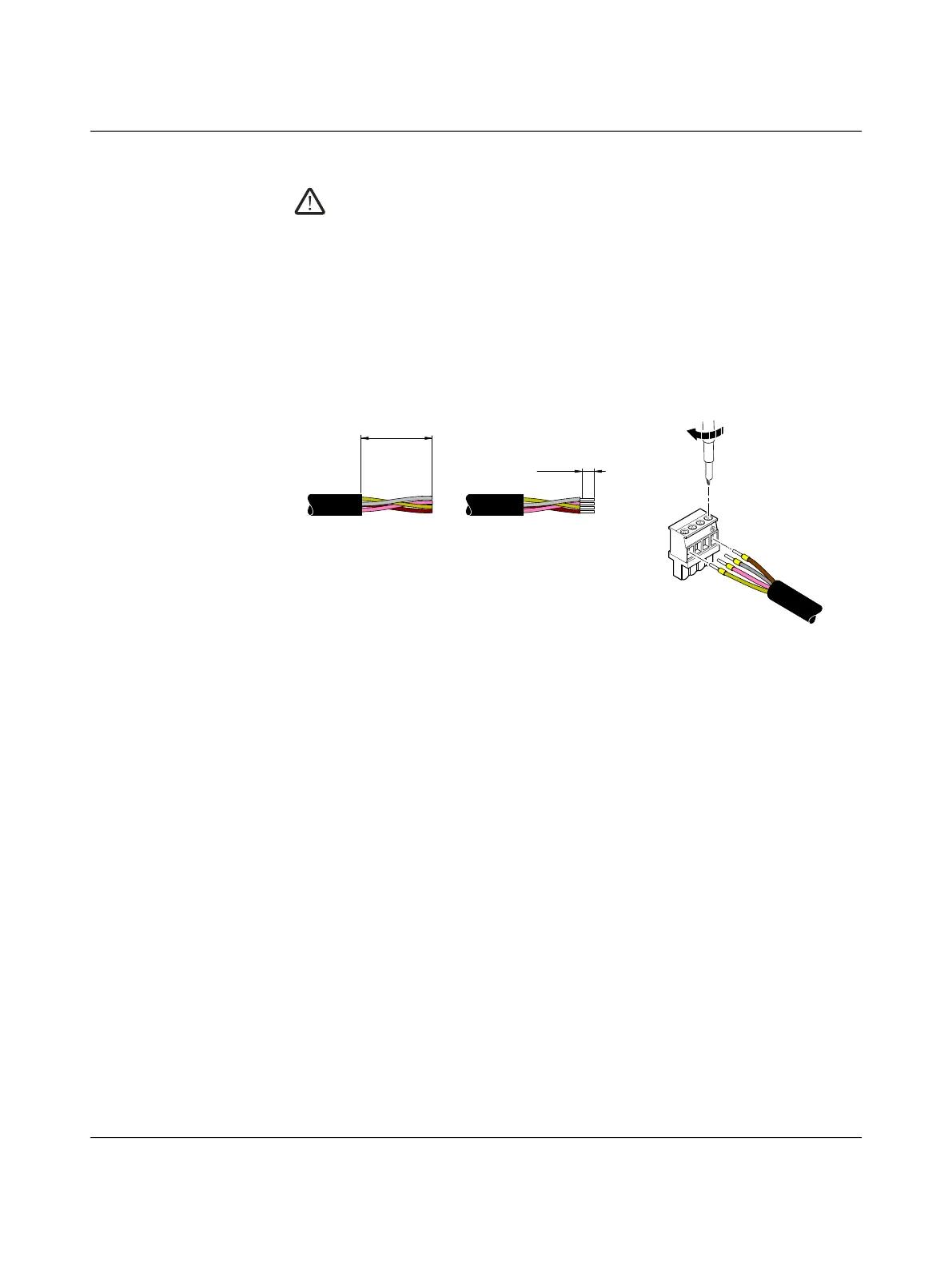

Figure 12-18 Assembling the motor circuit connector (dimensions in mm)

T1 T2

T3

ca. 30

ca. 7

A

B

C
