Connecting cables

6452_en_11 Phoenix Contact 145 / 188

12.6.1 Connecting or forwarding the incoming mains

WARNING: Dangerous contact voltage

Only remove or insert the power connector or the power bridge when the mains

voltage is disconnected.

There are two ways of connecting the incoming mains to a power-level terminal:

You can connect the incoming mains using a power connector.

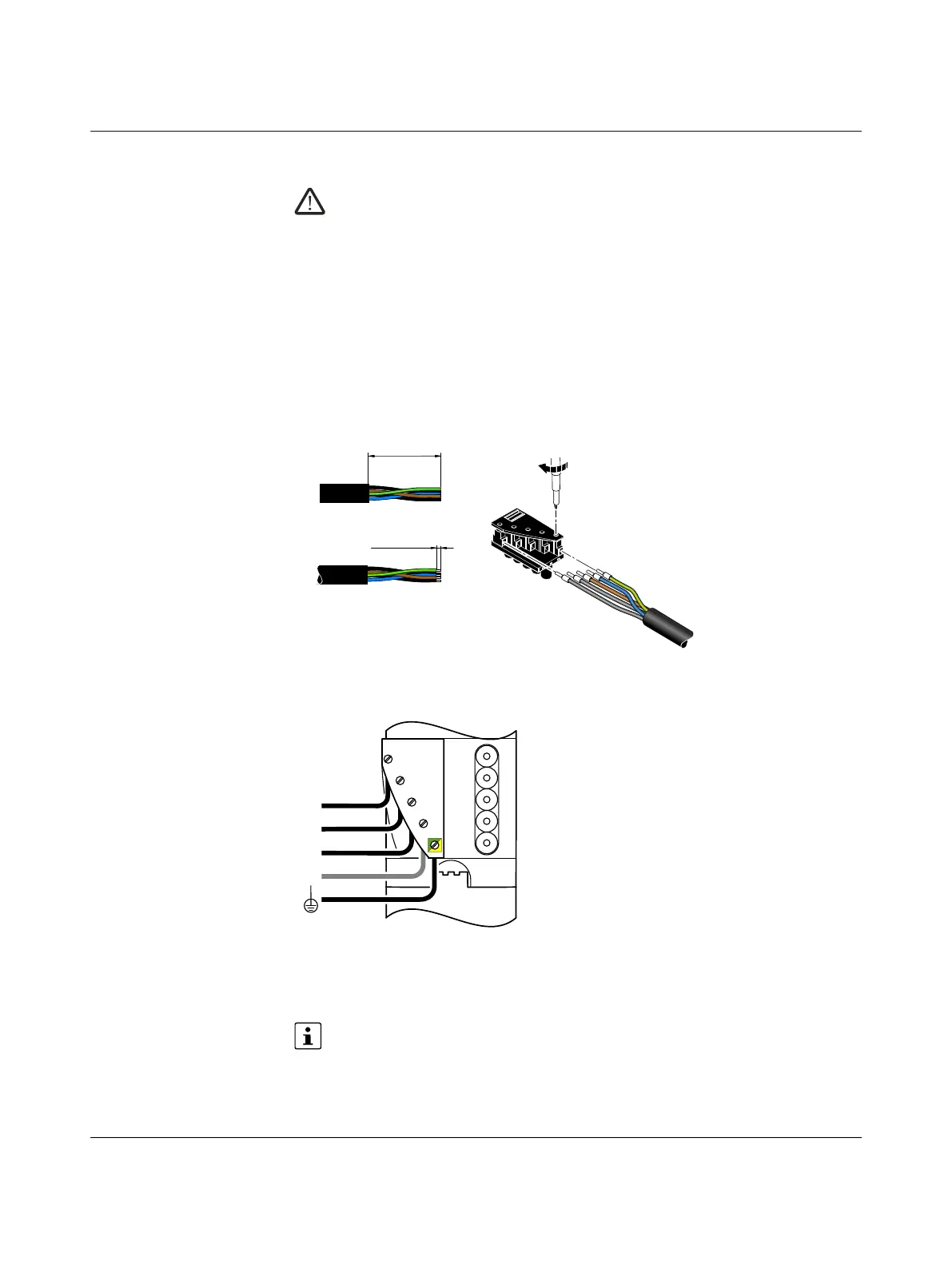

When assembling the power connector, proceed as shown in Figure 12-13:

• Strip approximately 80 mm off the cable sheath (detail A) and 7 mm off the wires

(detail B). Fit the wire ends with ferrules.

• Connect the wires to the connector (detail C). The assignment is shown in

Figure 12-14.

Figure 12-13 Assembling a power connector (dimensions im mm)

Figure 12-14 Power connector assignment

The PEN conductor (N) is not required for power-level terminals. However, the con-

nectors offer the option of connecting and forwarding the PEN conductor.

X11 Incoming mains

X12 Outgoing mains

ca. 80

ca. 7

A

B

C

L1

L2

L3

N

L1

L2

L3

L1

L2

L3

N

PE

X11 X12
