IL SYS INST UM E

144 / 188 Phoenix Contact

6452_en_11

12.6 Connections on a power-level terminal (Inline)

WARNING: Dangerous contact voltage

Only connect and remove the connectors of a power-level terminal when the mains

voltage is disconnected and cannot be switched on again.

A power-level terminal has slots for the following connections:

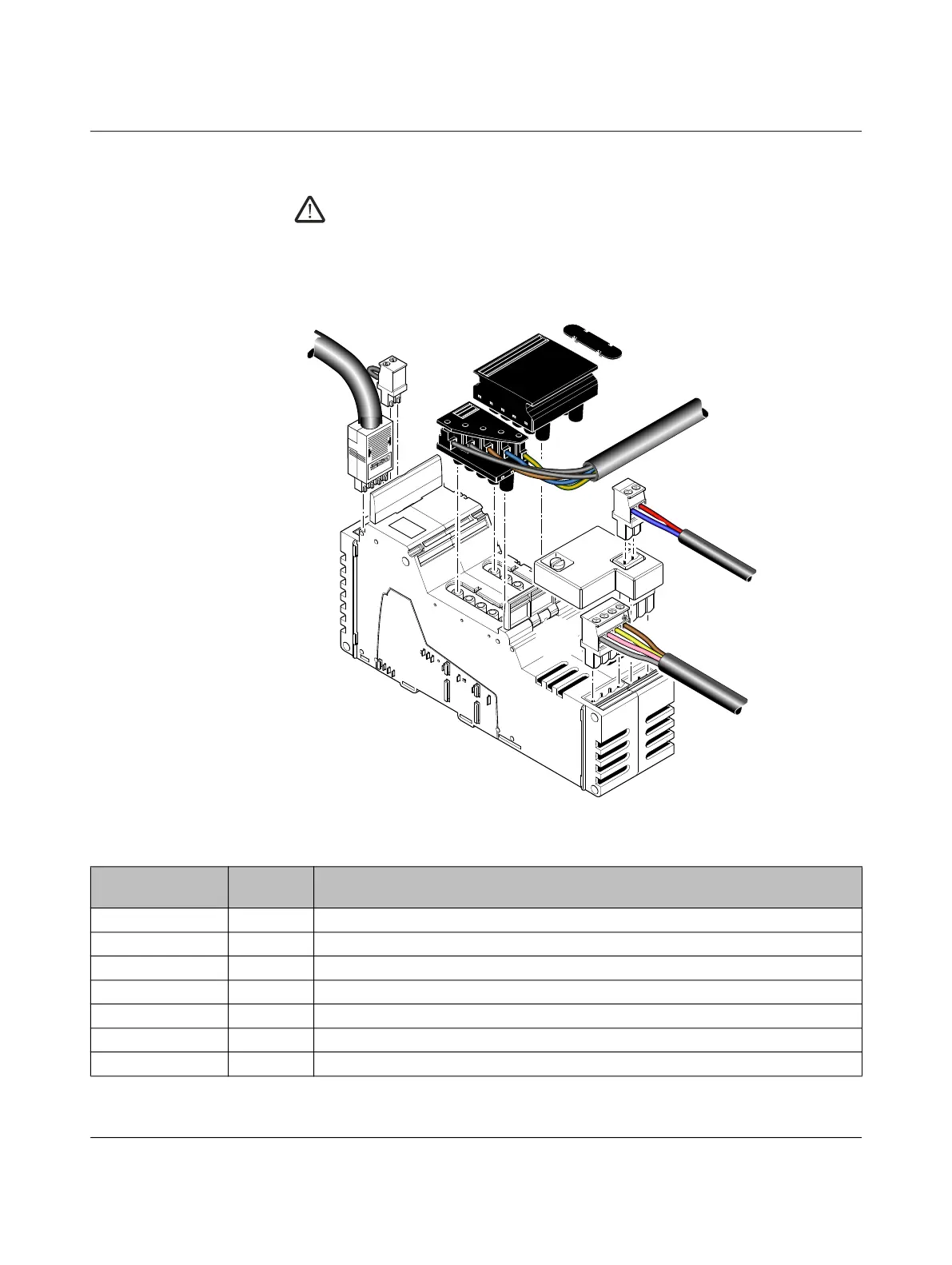

Figure 12-12 Power-level terminal with all possible connectors

3

2A

1

4

7

6

5

14

13

O

+

T1 T2

T3

2B

Table 12-7 Slots and connectors of a power-level terminal

No. in

Figure 12-12

Slot Connector/connection

1 X11 Incoming mains (here: power connector)

2 X12 Outgoing mains (power bridge (2A) or cover (2B))

3 X10 Motor output

4 X8 Brake module (including brake switch and connection for brake)

5 X9 Connection of the brake to the brake module

6 X32 Hand-held operator panel connection (hand-held operator panel mode)

7 X18 Enable power level
