Connecting cables

6452_en_11 Phoenix Contact 143 / 188

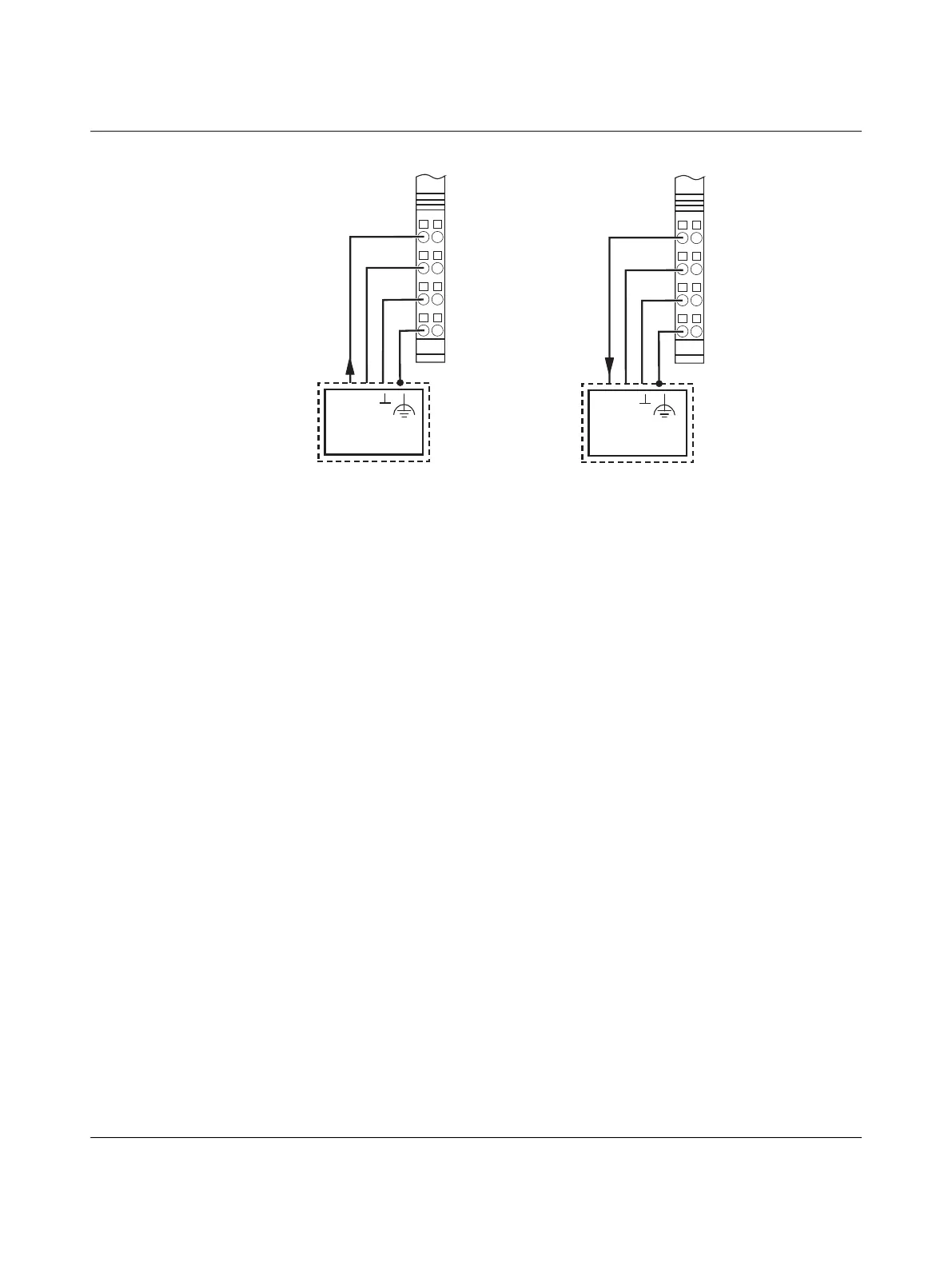

4-wire technology Figure 12-11 4-wire termination for digital devices

Sensor Figure 12-11, detail A, shows the connection of a shielded 4-wire sensor. The sensor

signal is led to terminal point IN1. The sensor is supplied via terminal points U

S

and GND.

The sensor is grounded via the FE terminal point.

Actuator Figure 12-11, detail B, shows the connection of a shielded actuator. The provision of the

supply voltage U

S

means that even actuators that require a separate 24 V supply can be

connected directly to the terminal.

IN1

FE

OUT1

FE

B

A

U

S

GND

U

S

GND

IN1

+24 V

OUT1

+24 V
