Installation

4083_en_C PHOENIX CONTACT 25/46

Figure 4-5 Terminal block connections

4.6.1 AC power

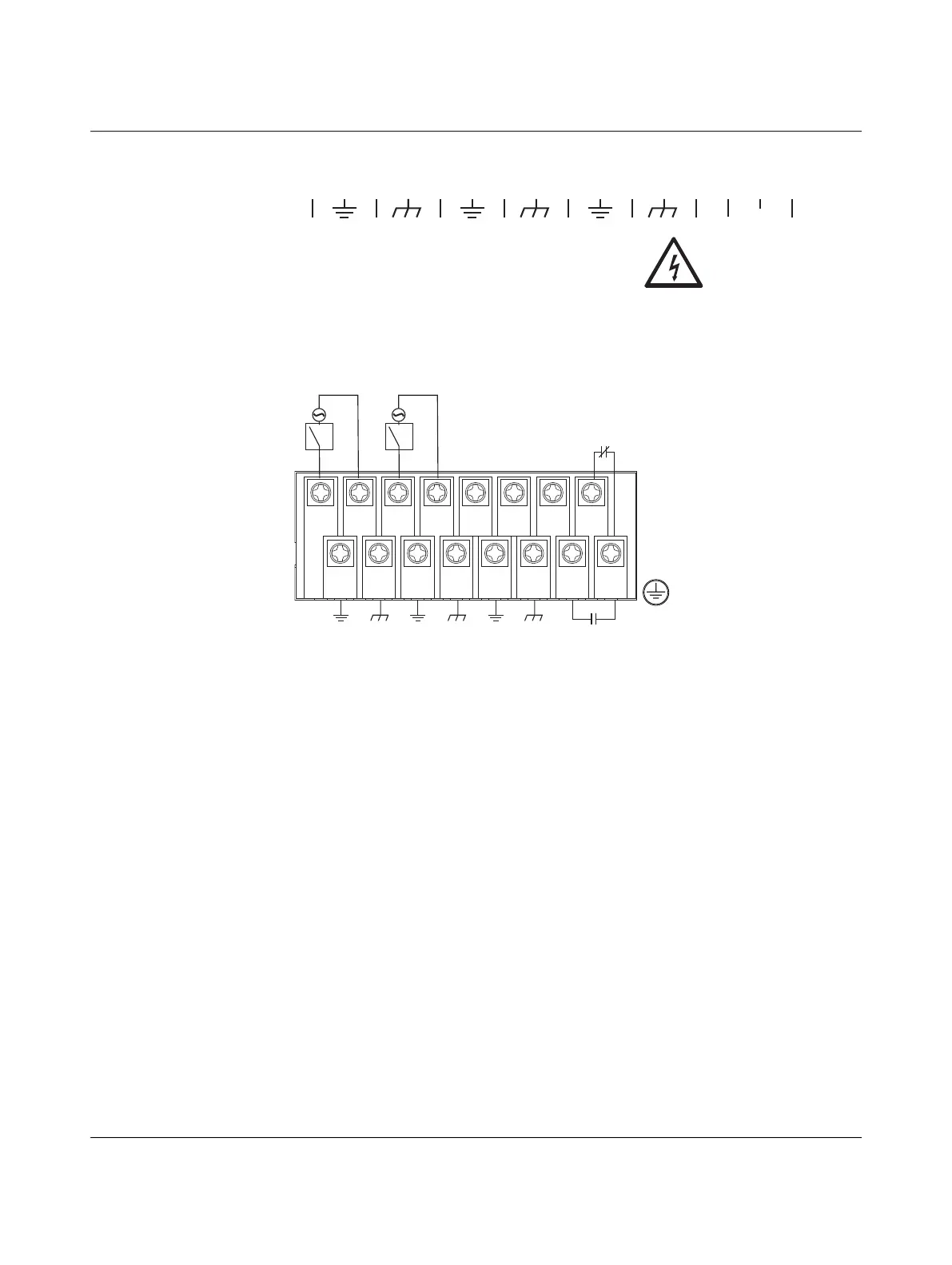

Figure 4-6 AC power connections

For 100-240 V AC rated equipment, protection for earth fault is provided by a 20 A max-

imum branch circuit from AC input in the building installation. The protection in the build-

ing installation is relied upon for short-circuit backup protection.

– The specification for AC breaker is 5 A, 2P, 277 V AC (min) circuit breaker, thermo-

magnetic or equivalent type.

– The plug connector and wire gauge sizing is to be selected with appropriate design as

per the electrical code for a 60 W, 1-phase device.

All equipment must be installed according to applicable local wiring codes and standards.

Always use conductors that are rated for the operating ambient temperature of 85°C.

Note for IT power distribution systems:

– This product is also designed for IT power distribution system with phase-to-phase

voltage 230 V.

– This equipment must be connected to an earthed mains socket/outlet.

To connect the power source:

1. Remove the transparent plastic finger-safe cover from the terminal block.

2. If an FL SWITCH EP7400-PS-HV power module is installed in PS1:

a) Connect the ground from the first power source to GND1 terminal screw (pin 2).

b) Connect the Live from the first power source to the PWR1 V+/L terminal screw.

c) Connect the Neutral from the first power source to the PWR1 V-/N terminal

screw.

3. If an FL SWITCH EP7400-PS-HV power module is installed in PS2:

12345678910111213141516

(+/L) (-/N)

PWR 1 PWR2

Alarm Relay

24VDC, 1A

Options

(+/L) (-/N)

HV Specs: 100-240 VAC, 1A, 50/60Hz, 100-240 VDC, 1A

MV Specs: 48 VDC, 1.25A

LV Specs: 24 VDC, 2.5A

13579111315

2 4 6 8 10 12 14 16

PEPEPE

LN NCL

L = Line

N = Neutral

PE = Protective earth

NO = Normally open

NC = Normally closed
