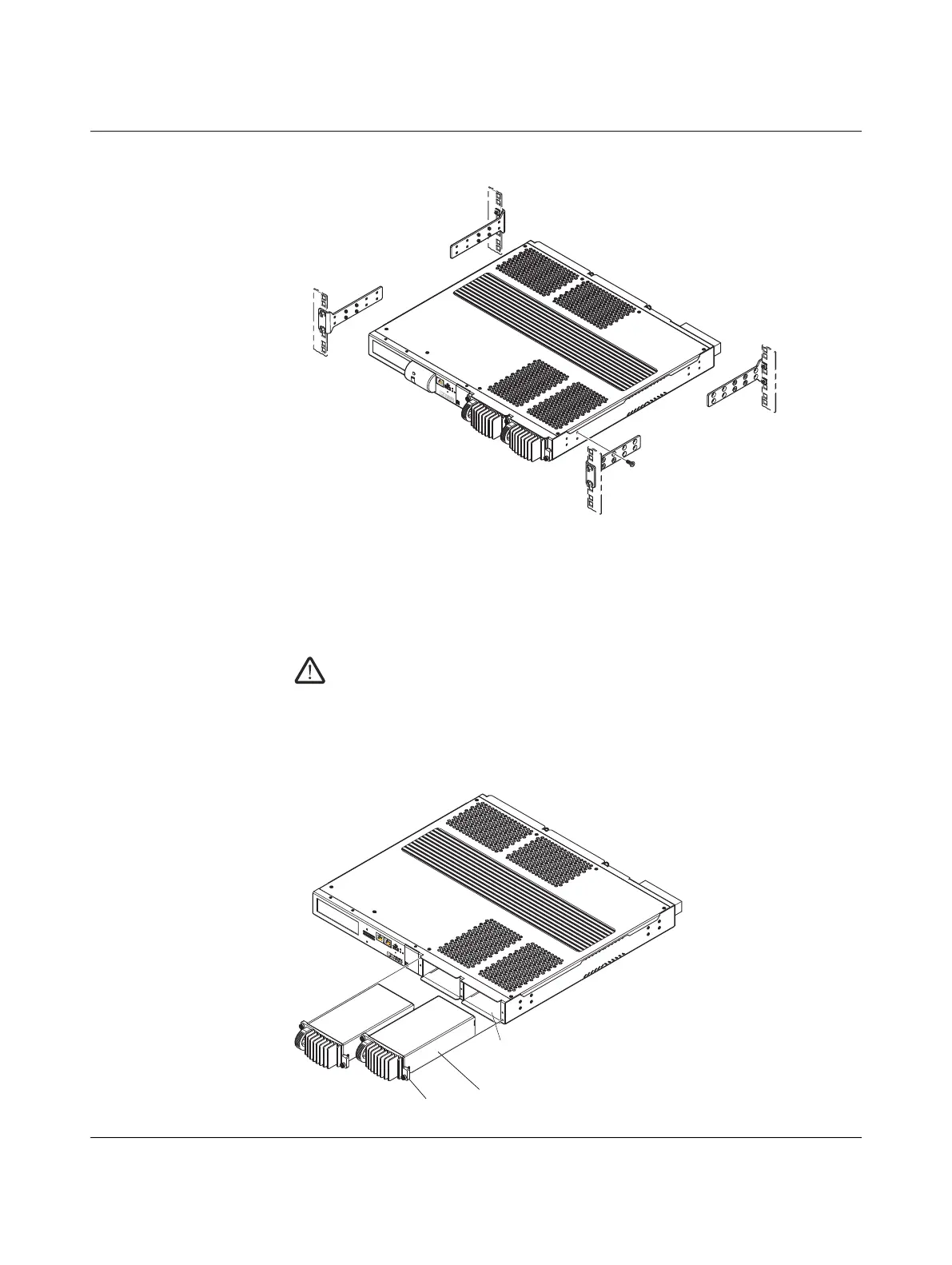

Figure 4-2 Rack mounting brackets showing four mounting brackets
4.5.2 Power supply module installation
The FL SWITCH EP7… switch accepts up to two (for redundancy) FL SWITCH EP7400-PS-
… power supply modules. A slot cover is provided if the switch is operated with only one
power supply module.
WARNING:
Never install or operate the device with an open power supply module slot. Always
have a cover or power module installed.
Never connect AC power cables to a 24 or 48 V DC power supply terminal block.
Always install equipment according to applicable federal, state, and local laws.
Figure 4-3 Power supply module installation
CONSOLE
MGMT
PS2
PS2
PS1
RESET
1
2
SD CARD
PS1
ALARM
SD
CONSOLE
MGMT
PS
2
P
S2
PS1
RES
ET
1
2
SD CARD
PS
1
ALA
RM
1
2
3
