NOTE:
…M8POE modules require FL SWITCH EP7428R-L3F1P (Item 1539668).
3.3 Power supply modules
Two slots in the switch base allow installation of the power modules. The slots are the
same and any available power supply module may be installed in any slot.
Three power supply modules are available:
– FL SWITCH EP7400-PS-LV (Order No. 1144367) accepts a 10 to 36 V DC (24 V DC
nominal) input signal.
– FL SWITCH EP7400-PS-MV (Order No. 1144372) accepts a 36 to 72 V DC (48 V DC
nominal) input signal.
– FL SWITCH EP7400-PS-HV (Order No. 1144175) accepts 88 to 300 V DC and 85 to
264 V AC, 50/60 Hz input signals.

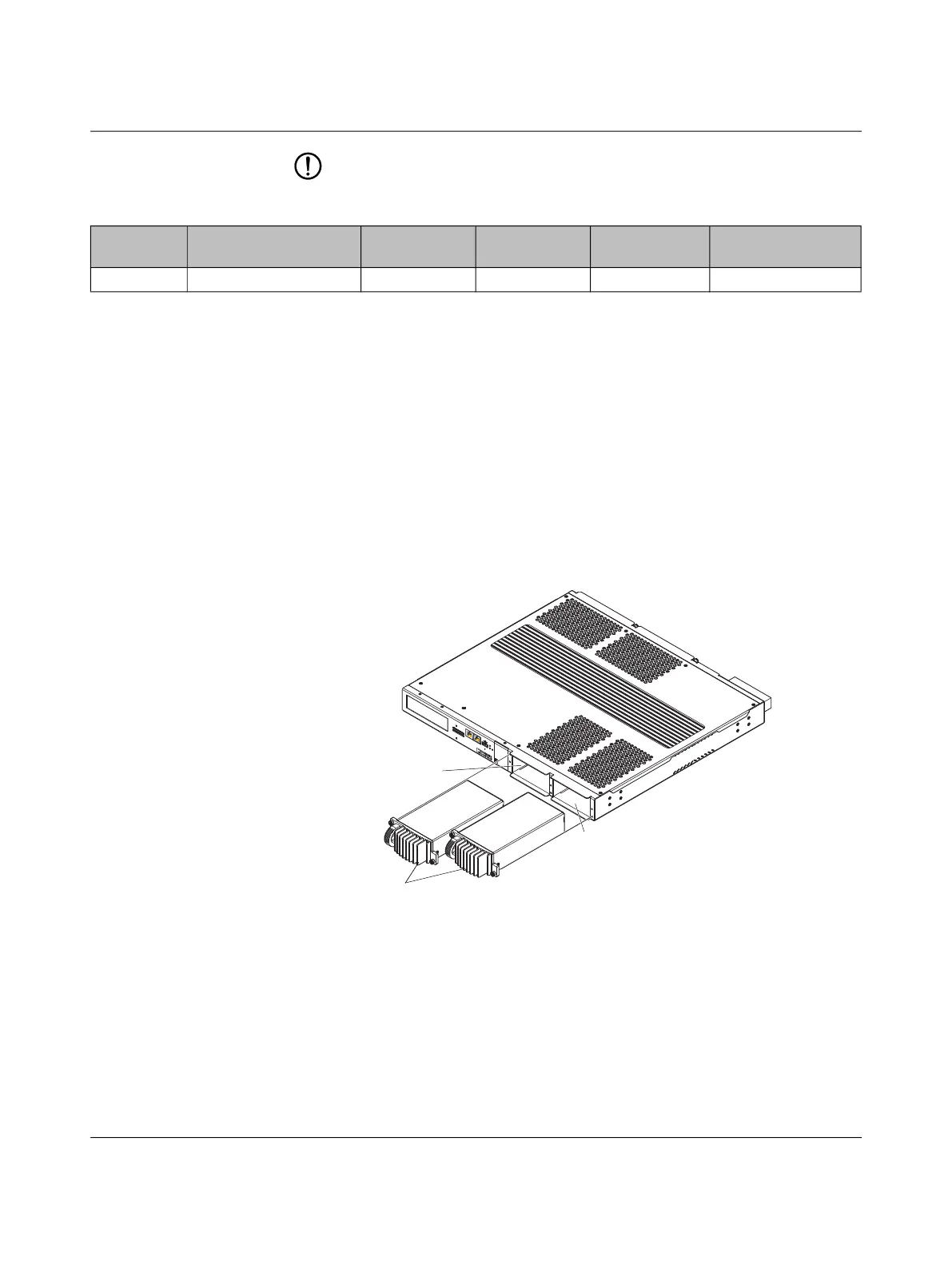

Figure 3-6 Power supply module installation
Table 3-5 PoE communication modules
Item No. Descriptor
FL SWITCH EP7400-…
Slot usage No of ports Type of port Data rate
1539669 …M8POE 1-3 8 PoE RJ45 10/100/1000 Mbps
CONSOLE
MGMT
PS
2
P
S2
PS1
RES
ET
1
2
SD CARD
PS
1
ALA
RM
1
2
1 Power supply slot 1 (PS1)
2 Power supply slot 2 (PS2)
3 Power supply modules
3
