Configuration

111433_en_00 Phoenix Contact 37 / 78

4.1.10 Modbus (only for ...-MRTU devices)

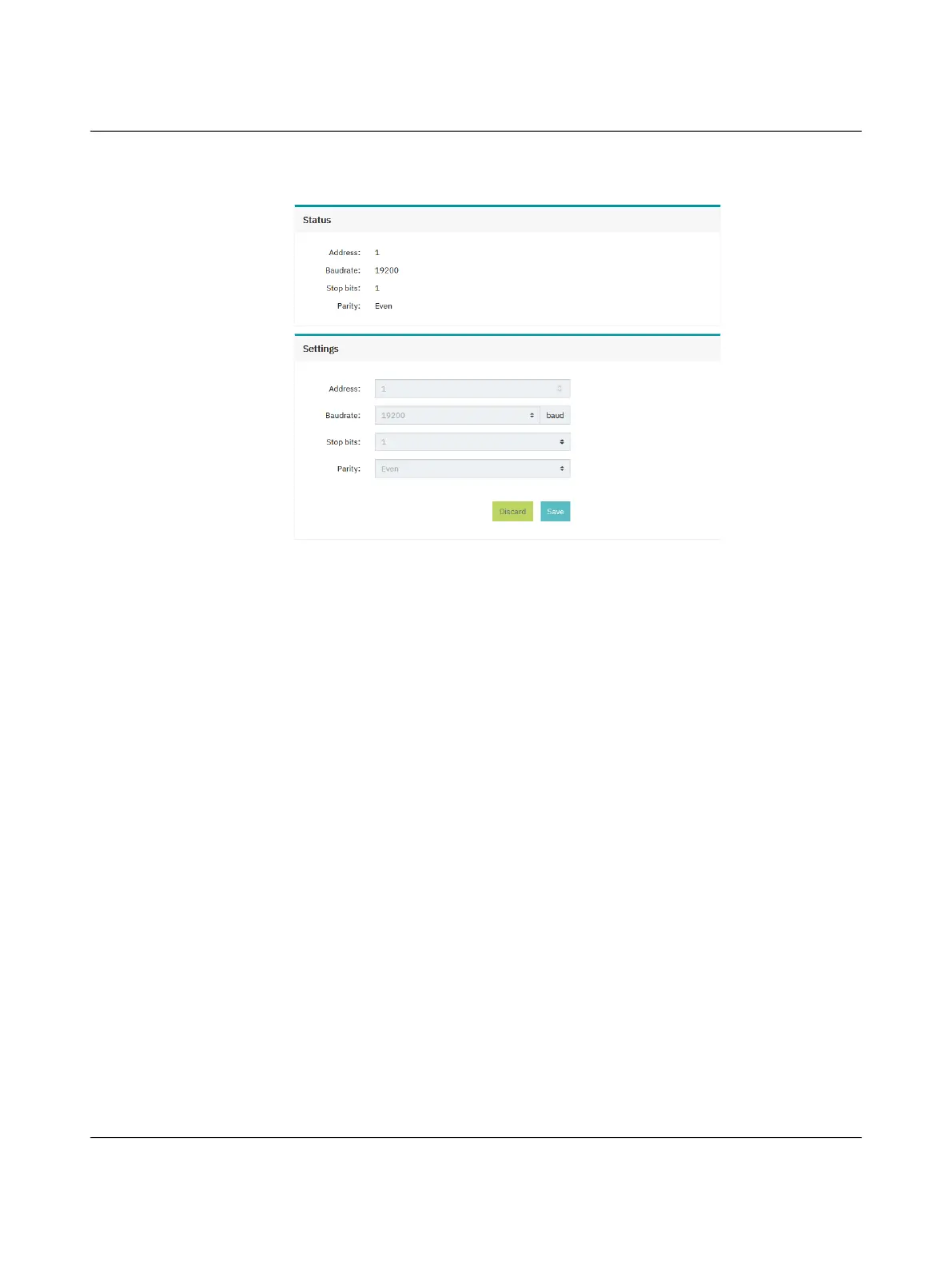

Figure 4-17 Modbus settings for MRTU devices

Address

Assign an address between 1 and 247 to each server. The default setting is “1”. Make

sure that each address in the network is only used once. Only one client may exist for

each network.

Baud rate

All devices in the network use the same baud rate. You can choose between the following

values:

– 2400 baud

– 4800 baud

– 9600 baud

– 19200 baud (default setting)

– 38400 baud

– 57600 baud

– 115200 baud

Stop bits

All devices in the network use the same stop bits. You can choose between the following values:

– 1 (default setting)

– 2

Parity

All devices in the network use the same parity. You can choose between the following values:

– Even (default setting)

– Odd

– None
