ECM – multifunctional current measuring transducers

36 / 78 Phoenix Contact

111433_en_00

4.1.9 Setting the digital input (only for devices with analog output)

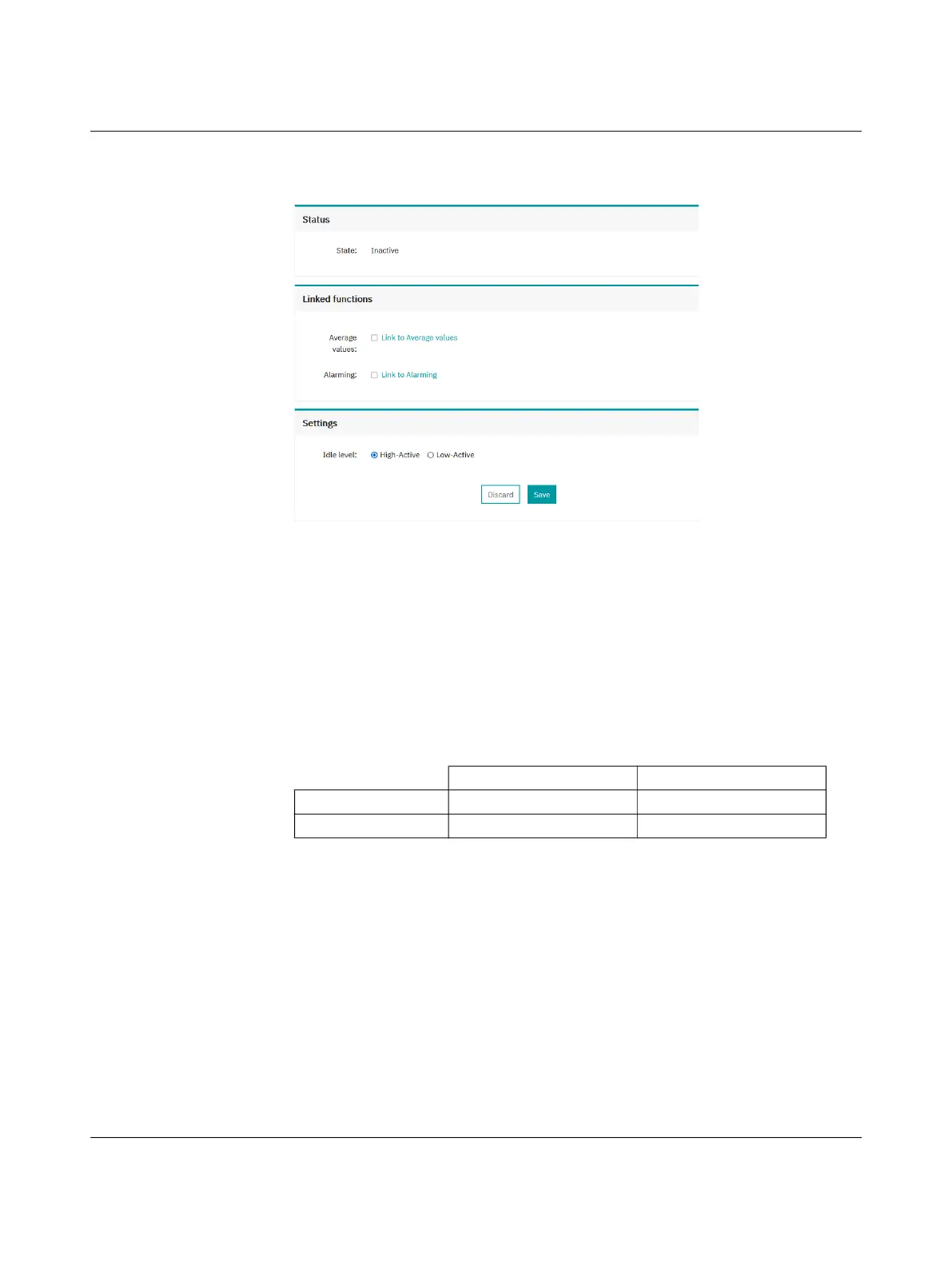

Figure 4-16 Settings for the digital input

Linked functions

Here you will find links to further settings. Click on “Link to Average values” (see 4.1.5) or

“Link to Alarming” (see 4.1.6) to be forwarded to the relevant page in the WBM.

Idle level

Specify the idle level. You can choose between the following options:

– High-Active

– Low-Active

Please refer to the following truth table:

Table 4-3 Digital input (DI) truth table

High-Active Low-Active

24 V DC applied 1 0

0 V DC applied 0 1
