AXL F CNT2 1H

10 / 60 Phoenix Contact

109925_en_04

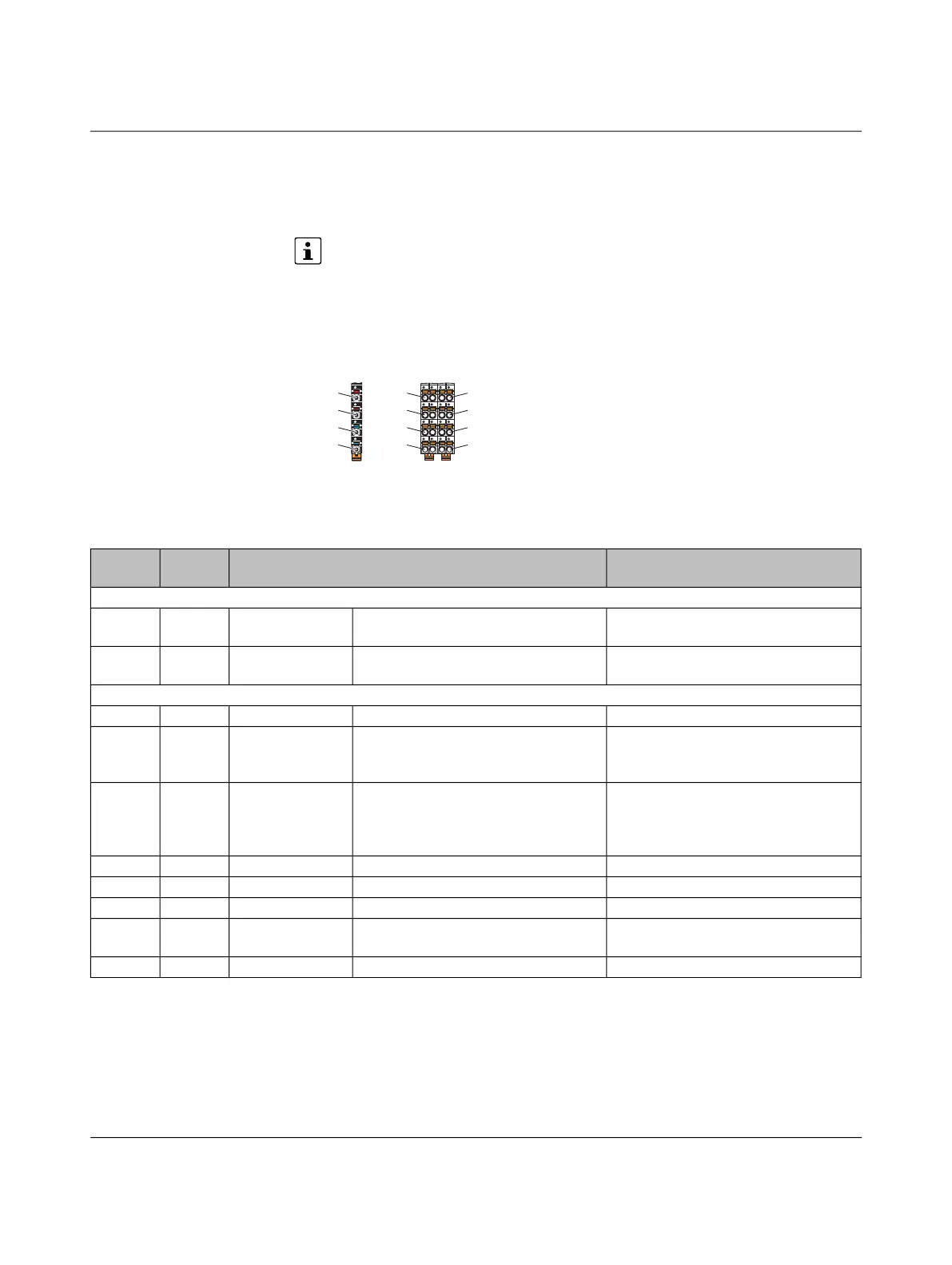

3 Terminal point assignment, diagnostic and status

indicators

This section is a copy from the data sheet.

3.1 Terminal point assignment

Figure 3-1 Terminal point assignment



0300

1310

2320

3330

Table 3-1 Terminal point assignment

Termi-

nal point

Color Assignment Parameterizable as

Supply voltage input

a1, a2 Red 24 V DC (U

) Supply voltage feed-in (bridged inter-

nally)

b1, b2 Blue GND Reference potential of the supply volt-

age (bridged internally)

Connector 2 (counter 1)

00 Orange S1 Source1, counter input for counter1

10 Orange CNT1_IN1 (G1) Counter1, input1 Gate1, control input for counter1

“Counter control (0305hex:

CNT_Control)” on page 41

20 Orange CNT1_IN2 (Dir1) Counter1, input2 Direction1, counting direction specifi-

cation for counter1

“Counting direction (0306hex:

CNT_Direction)” on page 42

30 Orange CNT1_OUT1 Counter1, output1

01 Orange CNT1_OUT2 Counter1, output2

11 Orange CNT1_IN3 Counter1, input3

21 Orange U

Sensor voltage +24VDC, for supplying

counter sensor1

31 Orange GND Reference potential of the I/O supply
