Connecting the shaft tubes (Fig. A)
1) Loosen the wing screw 7 on the upper shaft
tube 6.
2) Press the locking pin 8 and push the lower
shaft tube 9 into the upper shaft tube 6 as
far as it will go.
3) Turn the lower shaft tube 9 until the locking
pin 8 engages in the opening on the upper
shaft tube 6 and protrudes.
4) Tighten the wing screw 7 again.
NOTE
► Before each use, make sure that the shaft tubes
6/9 are firmly connected to each other.
Disassembly
1) Loosen the wing screw 7.
2) Press the locking pin 8 and simultaneously pull
the lower shaft tube 9 out of the upper one
with a slight twisting movement.
Fitting/changing the line spool
(Fig. E/F)
NOTE
► The washer n, spring washer b and nut v
are not required for fitting the line spool d
and can be removed.
1) Make sure that the motor is switched off and
remove the batteries.
2) Place the device on the ground so that it has
a secure hold. Turn it so that you can work
comfortably on the underside of the protective
cover 0.
3) Block the mounting spindle c by inserting the
hex key s sideways into the opening at the
base of the mounting spindle c.
The hex key s is then located in the guide
provided on the protective cover 0.
4) Unscrew the line spool d clockwise from
the mounting spindle c.
5) Open the spool case B by pressing the click
lock M firmly inwards on both sides of the
spool case B. Remove the cover m of the
spool case B (see Fig. F).
6) Thread the two line ends of the new spool N
into the respective line outlet V.
7) Place the spool N in the spool case B and
close the cover m by engaging the two click
locks M.
8) Screw the line spool d anticlockwise onto
the mounting spindle c. Then remove the
hex key s.
NOTE
► If you are fitting the line spool d for the first
time, skip steps 5) to 7).
Winding the line spool
♦ Instead of a new spool N, you can also pur-
chase a 2.4 mm thick, 5 m long nylon line from
a specialist retailer and wind it onto the spool
N yourself.
NOTE
► When winding manually, use the slot C on
the spool N to clamp the nylon line so that it
does not unwind on its own.
♦ You can simply thread the line with the spool
case B closed or alternatively with it open.
With closed spool case:

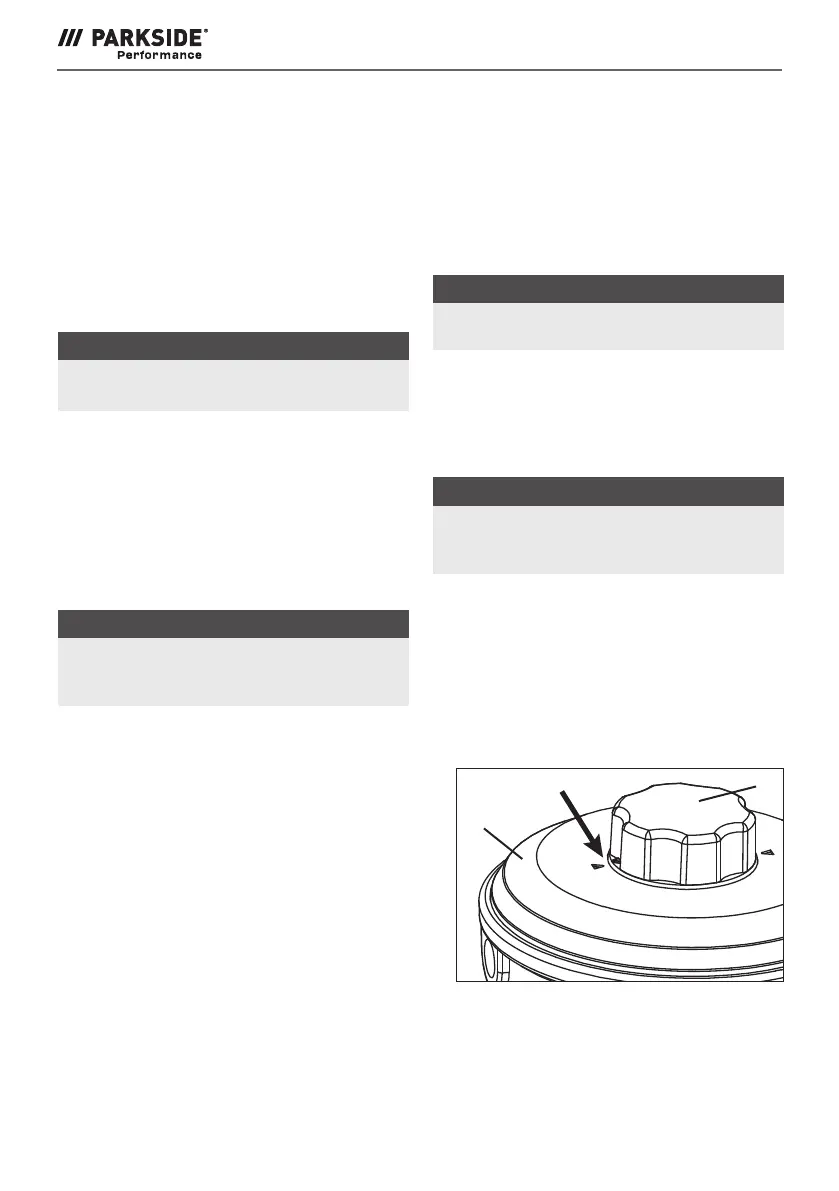

1) Make sure that the two arrows on the cover m
and on the rotary knob f of the line spool d
point towards each other (see Fig. 1).
This ensures that the line can be threaded directly
into the line channel of the spool N.
m
f
Fig. 1
2) Thread the line through one line outlet V and
further into the line channel until the line comes
out of the other line outlet V.
