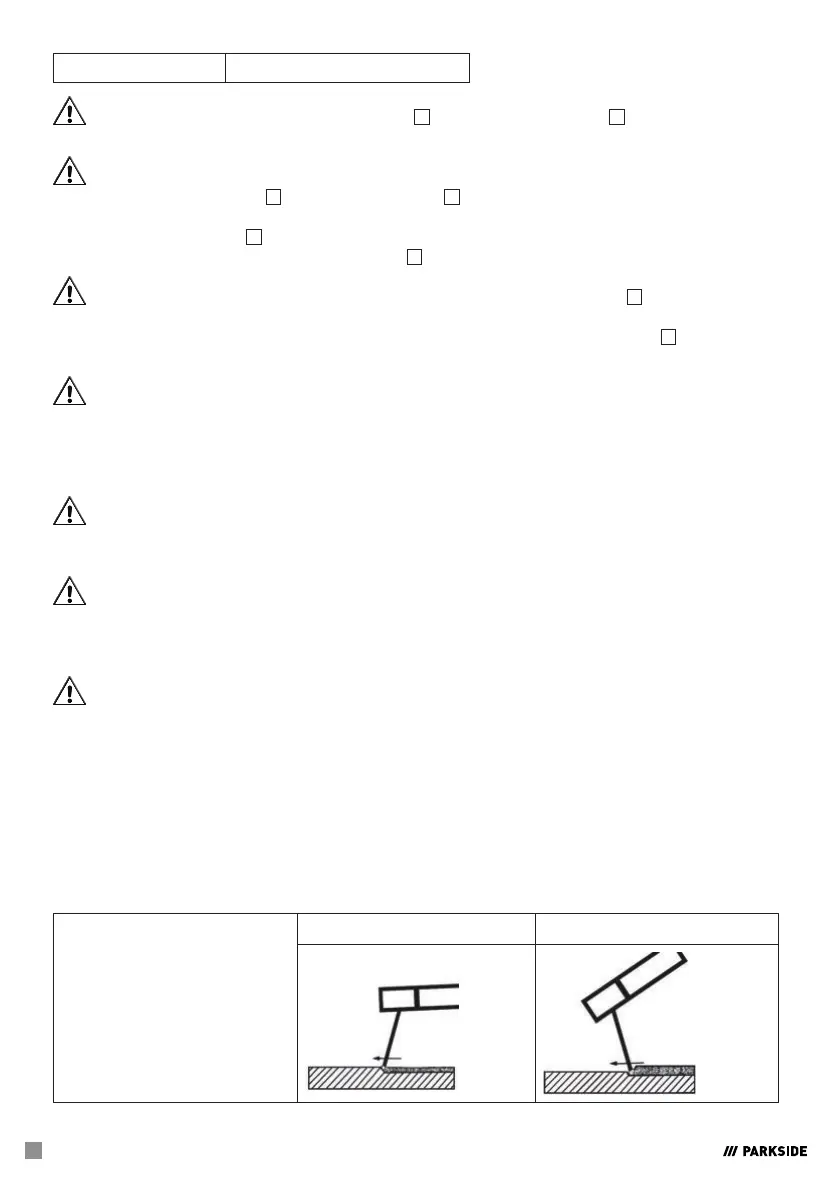

Je bekijkt pagina 16 van 61
16
GB/IE/NI
3.2 mm 100–120 A
ATTENTION: Do not bring the earth terminal
4
and the electrode holder
5
/electrodes into direct
contact with one another.
ATTENTION: When welding with electrodes (MMA – manual metal arc welding – electrode
welding), the electrode holder
5
and the earth terminal
4
must be connected in accordance with the
specifications of the electrodes to plus (+) or minus (-).
Hold the welding mask
7
in front of the face and start the welding procedure.
To stop the procedure, set the ON/OFF switch
9
to the “O” (“OFF”) position.
ATTENTION: When the thermal sensor is triggered, the yellow control lamp
2
lights up. In this
case, it will not be possible to continue welding. The device will continue to run so that the fan can cool
the device. As soon as the device is ready for operation again, the yellow control lamp
2
will switch off
automatically. The welding function can now be used again.
ATTENTION: Make sure that you do not rub the electrodes onto the workpiece. Doing this can
damage the workpiece and make it more difficult to ignite the arc. After the arc is ignited, maintain the
correct gap from the workpiece. The distance should be appropriate to the diameter of the electrode
used. When welding maintain this gap as accurately and consistently as possibly. The angle between
the electrode and the direction of operation should be between 20° and 30°.
ATTENTION: The welding clamp and welding electrodes must be placed on the insulated
bracket after welding. Wait until the electrode is cooled before removing the welding slag. To weld an
intermittent weld seam again you must first remove the welding slag at the welding position.
ATTENTION: A voltage which is 10% below the rated input voltage of the welder can have the
following consequences:
The power to the device will reduce.
The arc stops or becomes unstable.
ATTENTION:
The arc radiation can lead to inflammation of the eyes and skin burns.
Casting and welding slag can cause eye injuries and burns.
Wear tinted safety goggles or a protective mask.
The safety mask must meet the EN175 safety standards.
It is essential that you only use the welding cable which is included with the delivery (10 mm
2
).
z Welding
Choose between push and drag welding. The following section shows the impact of the direction of
movement on the properties of the weld seam:
Push welding Drag welding
