2. Continue turning the spray unit
[4] until you
have aligned
[5] with [] (Fig. D).
3. Pull the spray unit
[4] out of the motor unit []
(Fig. C).
Fastening the spray unit
1. Insert the connecting tube [6] into the spray
connection
[] (Fig. C).
2. Align
[5] with []. Turn the spray
unit
[4] clockwise until it engages in the lock []
(Fig. D).

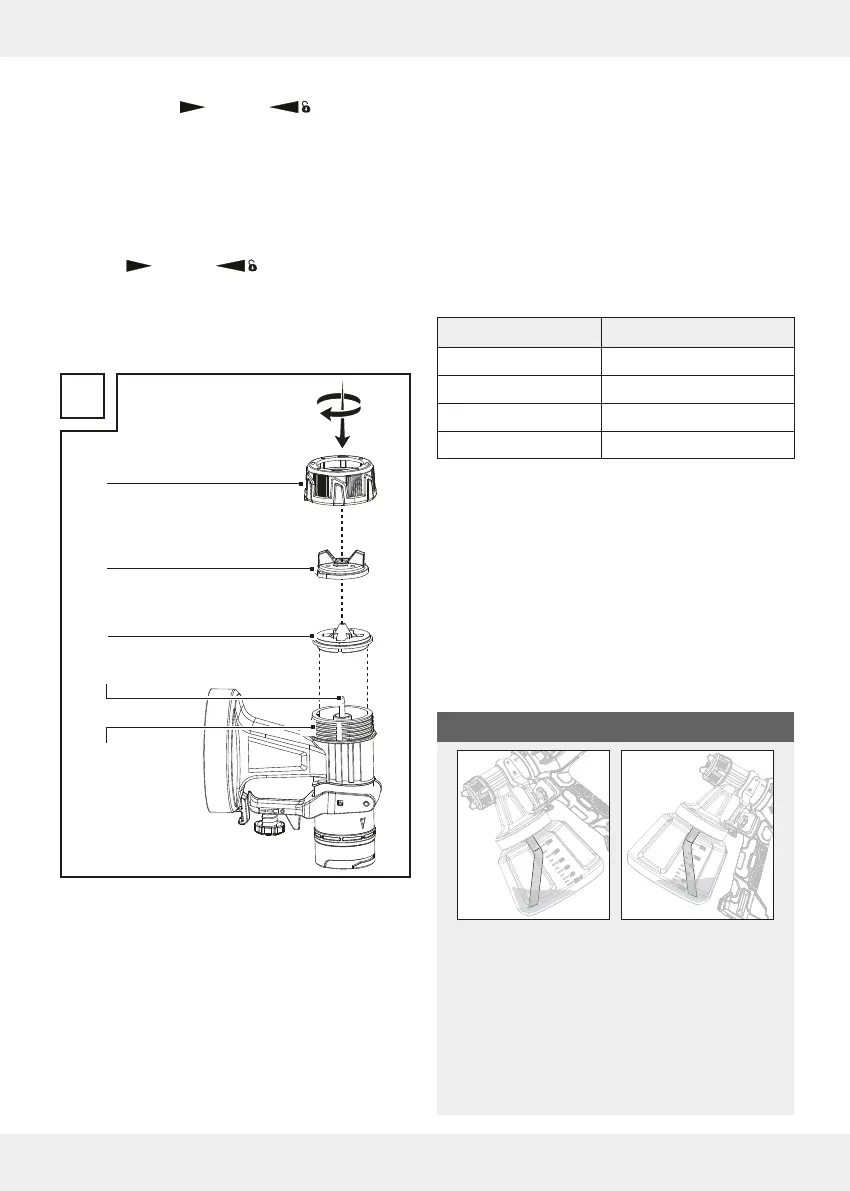

Changing/inserting the nozzle
I
[]
[]
[1]
[3]
[2]
1. Hold the product with the nozzle head []
facing upwards before unscrewing the union
nut
[]. This prevents parts from falling out.
2. Turn the union nut
[] in a counter-clockwise
direction.
3. Remove the union nut
[] together with the
nozzle head
[] from the spray unit [4].
4. If a nozzle
[1] is already mounted:
– Remove the nozzle from the needle
[2].
– If necessary, lever the nozzle out carefully
with a screwdriver.
5. Place the desired nozzle
[1] on the needle [2].
6. Place the nozzle head
[] on the nozzle [1].
7. Place the union nut
[] on the small thread [3].
8. Tightening: Turn the union nut
[] in a clockwise
direction.
Choosing the correct nozzle
[1] Nozzle*
Application
White 1.5 mm Low viscosity
Black 1.8 mm Water-based paints
Red 2.2 mm High viscosity
Cyan 2.6 mm Oil-based paints
* The diameter of the nozzle-opening is imprinted
on the inside of the nozzle
[1].
o More information:
see “Checking viscosity”
Filling in spray material
Fig. G
1. Unscrew the paint container
[9] from the spray
unit
[4].
2. Insert the riser tube
[] into the large thread [].
NOTE
u For working on a low-placed spraying area:
Attach the riser tube
[] so that it points
forward:
Towards the nozzle head
[]
u For working on a higher placed spraying
area: Attach the riser tube
[] so that it points
backwards:
Towards the motor unit
[]
