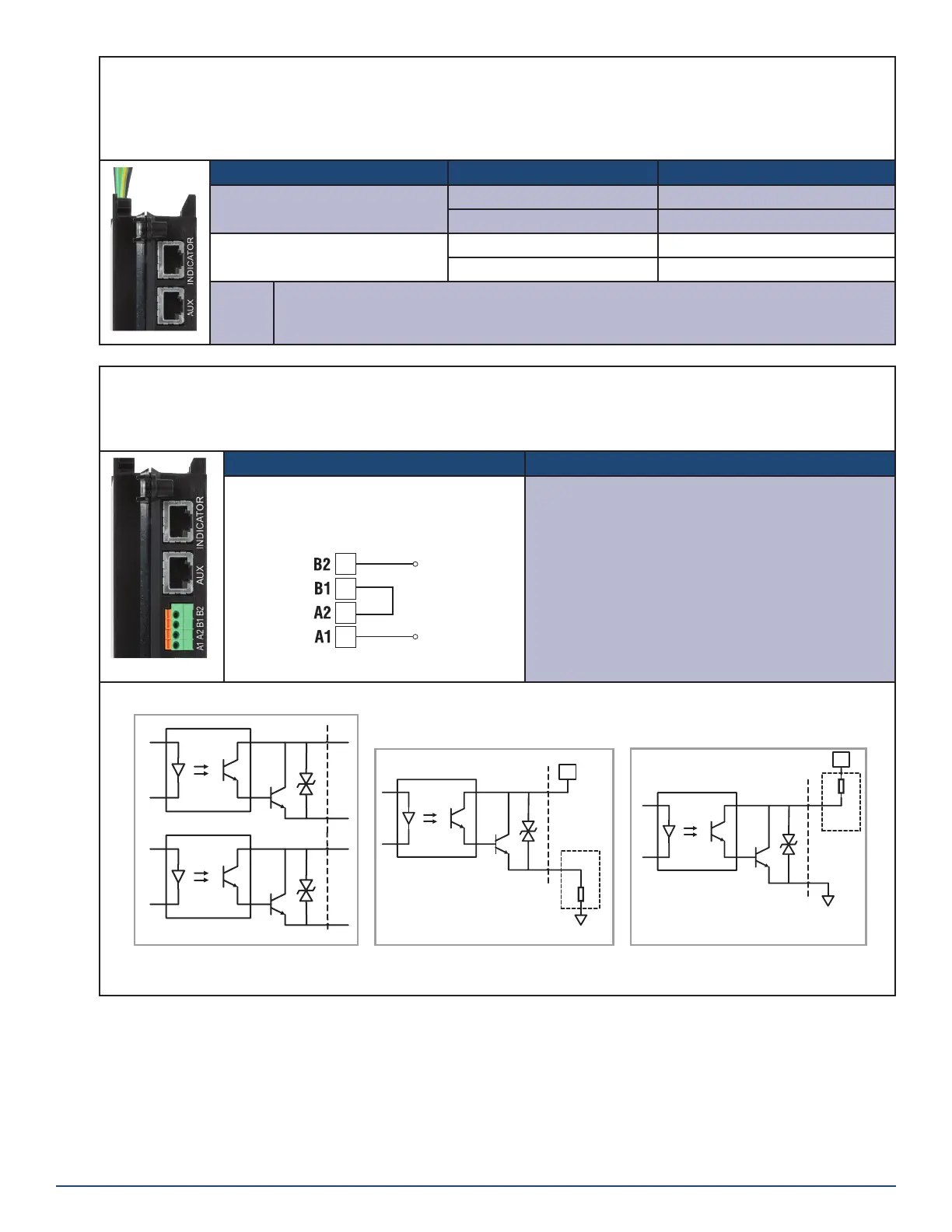

INDICATOR MODULE
The 2.0 AVT isolation module is compatible with up to two indicator modules. The test can be initiated at either location and
results will be shown simultaneously on both indicators. Primary indicator must be installed locally near the isolation module.
A combination of battery-powered and battery-free indicators can be used in either port. Refer to the table below for maximum
system cable length.
Indicator Module Port Indicator Type(s) Supported Maximum System Cable Length
INDICATOR
(Primary Indicator)
Battery Free 30 feet (9.1 m)
Battery Powered (see NOTE 2) 30 feet (9.1 m)
AUX
(Auxiliary Indicator, see NOTE 1)
Battery Free 500 feet (152.4 m)
Battery Powered (see NOTE 2) 500 feet (152.4 m)
NOTES: 1. AUX port does not accept battery power.
2. Battery powered indicator module can be used in the AUX port, however the battery will not
have any impact on powering the AVT.
ABSENCE OF VOLTAGE OUTPUTS
The AVT includes a set of redundant isolated transistor outputs for optional use with control systems. These outputs are located
on the isolation module. These outputs are normally inactive, and are only active when the green absence of voltage indicator is
illuminated. By utilizing these outputs, the AVT can be used to interface with a control system.
Recommended Wiring Output Specifications
For redundant monitoring of output state.
Outputs are normally inactive, and active only
when absence of voltage is detected.
NPN Transitor output
8kVrms Input/Output Isolation
Applied Voltage maximum 24 VDC
Load Current 80 mA DC
SIL3 compliant
Duty Cycle: 10 seconds per test cycle
Connector / Wiring Requirements
Wire Range: AWG #26 - 16 SOL / STR (1 wire only)
Wire strip length: 9.0mm (min) / 10.0mm (max)
B
B
2
B
1
A
A
2
A
1
PLC
in
V
t
R
PLC
in
V
t
R
ISOLATED NPN OUTPUTS
SOURCING
SINKING
