10/06/2022 5 1002985, B21110_EN_rev4

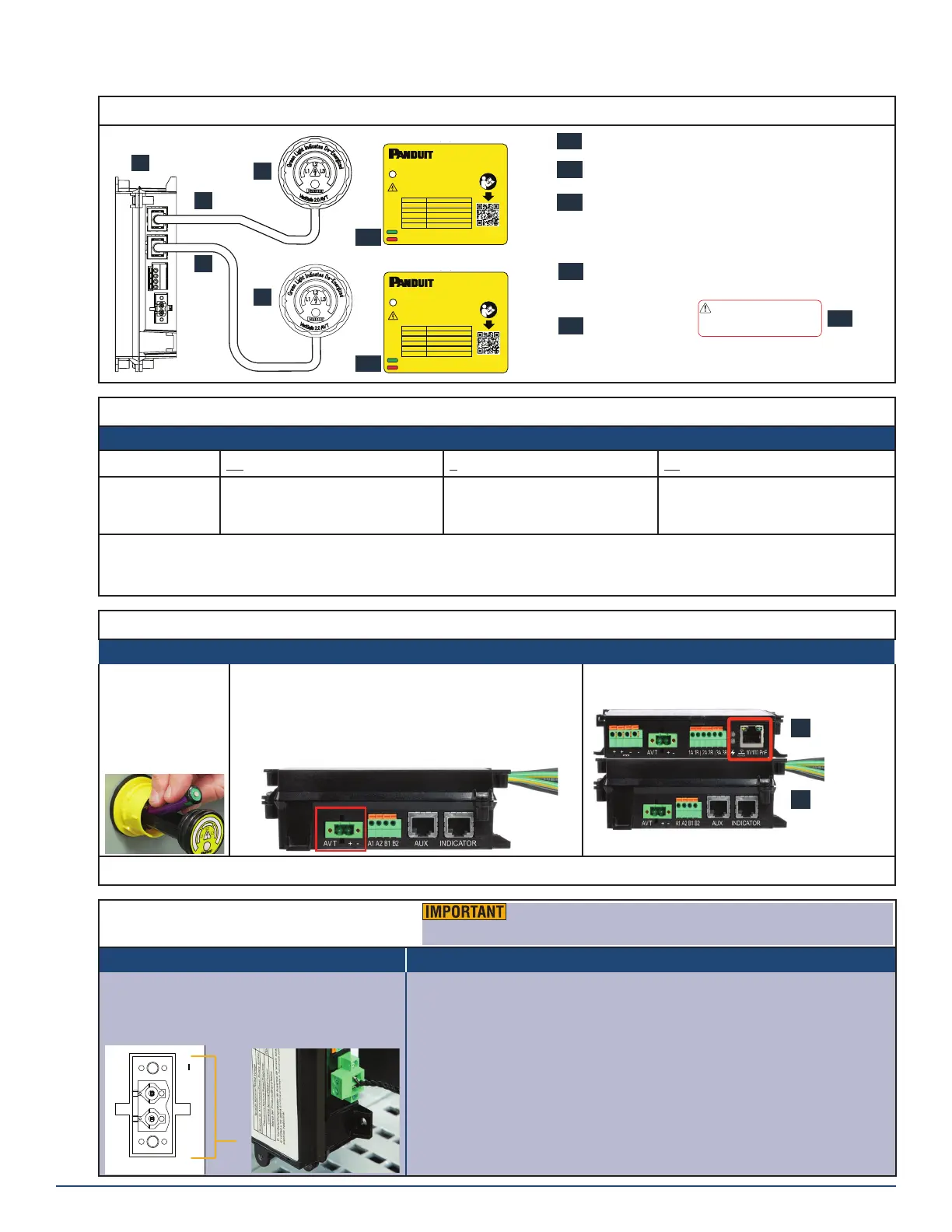

System Configuration
COMPONENTS
1
2
3
2
3
Isolation Module
System Cable
Indicator Module
3.6V Battery Powered option shown
Battery Free option available
Instruction Label
Place a Label for each Indicator used
Warning Label
For Hazardous Locations, place label on
exterior of enclosure near Indicator Module
5
5
4
1
2
4
3
Flashing - Test in Progress
Solid - Voltage may be Present
Equipment De-Energized, < 3V
Push Button to Begin Test
Hazardous Voltage Present
Line Load Other _________
Tester location:
# Flashes Description
1
2
4
5, 6, 7 or 8
Check Battery
Voltage above Threshold
Installation Not Verified
See User Manual
3
Temperature Out of Range
See Diagnostic Code for Status:
V
ERI
S
AFE 2.0
Absence of Voltage Tester
CAT IV (1000V), CAT IV (600V)
_________
Follow safety
procedures &
use required PPE
2.65
[67.3]
3.20
[81.3]
PART NUMBER IDENTIFICATION
VS2-AVT-XYZ-##
VS2-AVT XY Power System Z Indicator ## System Cable
VeriSafe 2.0 AVT 3P = Three-Phase System
1P = Single-Phase / DC System
F = Battery Free Indicator
B = Battery Powered Indicator
02 = 2’ (0.6m) System Cable
08 = 8’ (2.4m) System Cable
16 = 16’ (4.8m) System Cable
NOTE: Accessories are available for the VS2-AVT, refer to www.panduit.com.
NOTE: Indicator Module Models VS2-AVT-xIF and VS2-AVT-xIB shall only be connected with the Isolation Module Model
VS2-AVT-xP-ISO [x denotes single-phase / DC (1) or three-phase (3)]
POWER FOR AVT TEST
Battery Auxiliary DC Power over Ethernet (PoE)*
3.6V lithium
industrial
battery.
Replace without
opening the
enclosure.
12 - 24 VDC
Must be available when main is de-energized.
Aux power is only used for powering the AVT in use
cases without the network module*. Do not apply
power to the AVT when using the network module*.
10/100 PoE
IEEE 802.3af Type 1 Class III PoE topology.
*Refer to network module instruction manual, available at www.panduit.com.
DC POWER INPUT
The 2.0 AVT includes an optional DC Power Input.
Recommended Wiring DC Input and Connector Specifications
This connection features a pluggable screw-
terminal connector and is used for DC power
input or connection to the network module
(optional).
Approved Power Source Type: IEC Class I regulated power supply;
12 - 24 VDC, 50 mA (minimum) output
Power Requirement: 35 mA max @ 12 VDC; 17 mA max @ 24 VDC
Connector / Wiring Requirements;
Wire Range: (1 wire): AWG #24 - 12 [2.5mm2] SOL / STR
(2 wire): AWG #18 [1.0mm2] SOL
AWG #18 [1.5mm2] STR
Wire strip length: 7.0mm (min) / 8.0mm (max)
Screw Drive Size: M3x0.5
Screw Torque Required: 5.0 in-lb [0.57 N-m] +/- 10%
1
2
Network
Module*
Isolation
Module
+
A1 A2 B1 B2
AVT AUX INDICATOR
DC Power Input Absence of
Voltage Outputs
Primary Indicator
Module Input
Second Indicator
Module Input
(optional)
Flashing - Test in Progress
Solid - Voltage may be Present
Equipment De-Energized, < 3V
Push Button to Begin Test
Hazardous Voltage Present
Line Load Other _________
Tester location:
# Flashes Description
1
2
4
5, 6, 7 or 8
Check Battery
Voltage above Threshold
Installation Not Verified
See User Manual
3
Temperature Out of Range
See Diagnostic Code for Status:
V
ERI
S
AFE 2.0
Absence of Voltage Tester
CAT IV (1000V), CAT IV (600V)
_________
Follow safety
procedures &
use required PPE
2.65
[67.3]
3.20
[81.3]
4
The power supply must be surge protected, otherwise external
surge protection is required at the input to the supply.
