For Technical Support: www.panduit.com/resources/install_maintain.asp

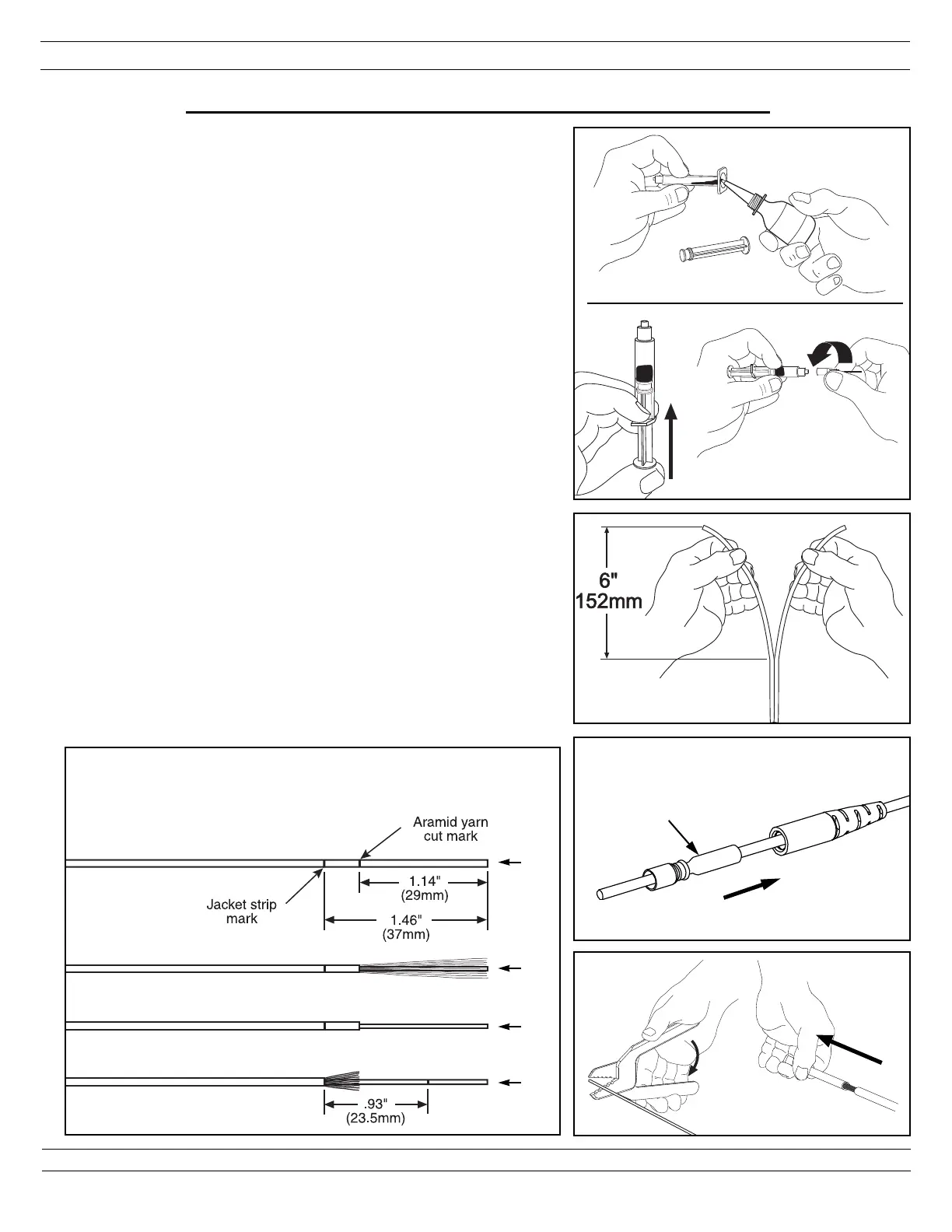

INSTALLATION INSTRUCTIONS
© Panduit Corp. 2018
FS119A
1. PREPARING ADHESIVE AND PRIMER
1.1 Remove the plunger from a syringe. Squeeze about 0.5ml of
FJPXY Anaerobic Adhesive into the back of the syringe barrel.
Insert the plunger. Point opening upward, and squeeze any air
out of the barrel. Attach needle to syringe. Adhesive that is
stored in a syringe may start to harden within 24 hours.
2. STRIPPING 1.6mm - 2.0mm JACKETED
CABLE
2.1 If using duplex cable, split the two cables approximately 6"
(152mm) or as needed.
2.2 Insert cable through the small end of the jacketed boot first,
then through the heat shrink side of the crimp sleeve. Slide
both back out of the way.
2.3 Following the stripping dimensions, use the marking pen to
mark each cable 1.14" (29mm) and 1.46" (37mm) from the end.
2.4 Strip off the cable at the aramid yarn cut mark. To reduce wear
on the jacket stripper blades, do not slide the blades along the
aramid yarn. Instead, use the tool to cut through the jacket,
then pull off the jacket by hand. For 1.6mm - 2.0mm jacketed
fiber, use the first hole (marked “.8MM” or #20AWG) from the
tip of the jacket stripper.
2.5 Cut aramid yarn flush with the end of the jacket.
2.6 Strip off the cable at the jacket strip mark. Mark the buffer
.93" (23.5mm) from the new jacket edge.
Page 7 of 11
1.6mm - 2.0mm JACKETED CABLE STRIPPING DIMENSIONS
IMPORTANT! Due to printing variations, use a rigid scale for stripping
dimensions, or the appropriate Panduit laminated template.
2.3
2.4
2.5
2.6
2.3
2.2
Heat Shrink
2.1
1.1.1
ADHESIVE
1.1
1.6mm - 2.0mm Jacketed Cable Termination
