7

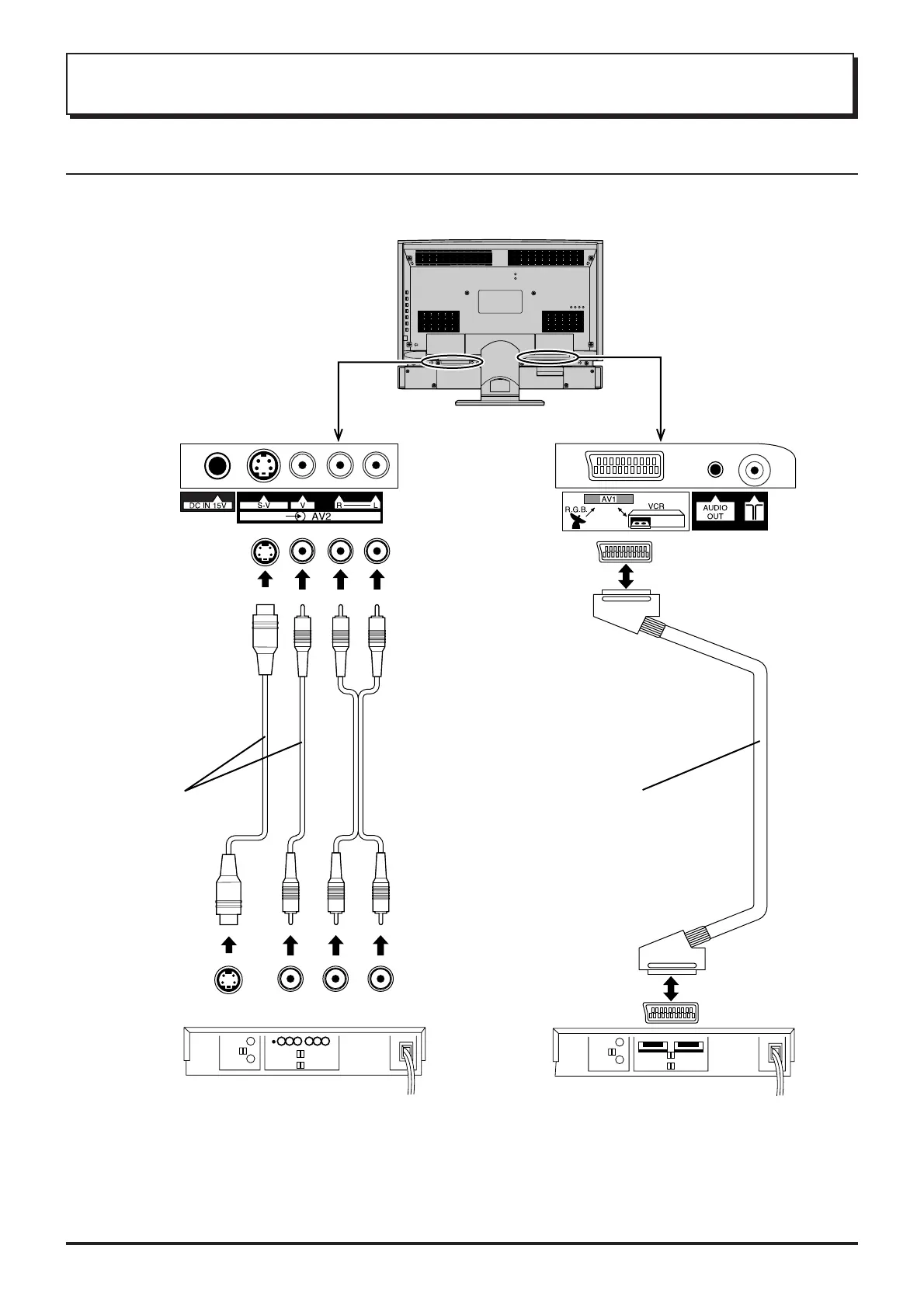

Connections
How to connect the input terminals
Connects VCRs and other peripheral equipment
(Super-VHS VCR)
S VIDEO
cable
Connection example:
AV1 connection
AV1 Scart socket
Connection example:
AV2 connection
VIDEO
cable
AUDIO
cable
Audio
OUT
RL
S Video
OUT
Video
OUT
Connect the S VIDEO or
VIDEO Terminal.
(VCR/DVD/Satellite Receiver)
When connecting 21 pin Scart cables.
Input / Output from
AV1 Scart socket.
Scart socket.
Scart cable
Notes:
• Additional equipment and cables shown are not supplied with this TV set.
• Do not connect a computer with TTL output (5V) to this set.
• Select the desired VIDEO input position by pushing the TV/AV button. (see page 10, 11)
• For Scart socket wiring information see page 27.
