8
Connections

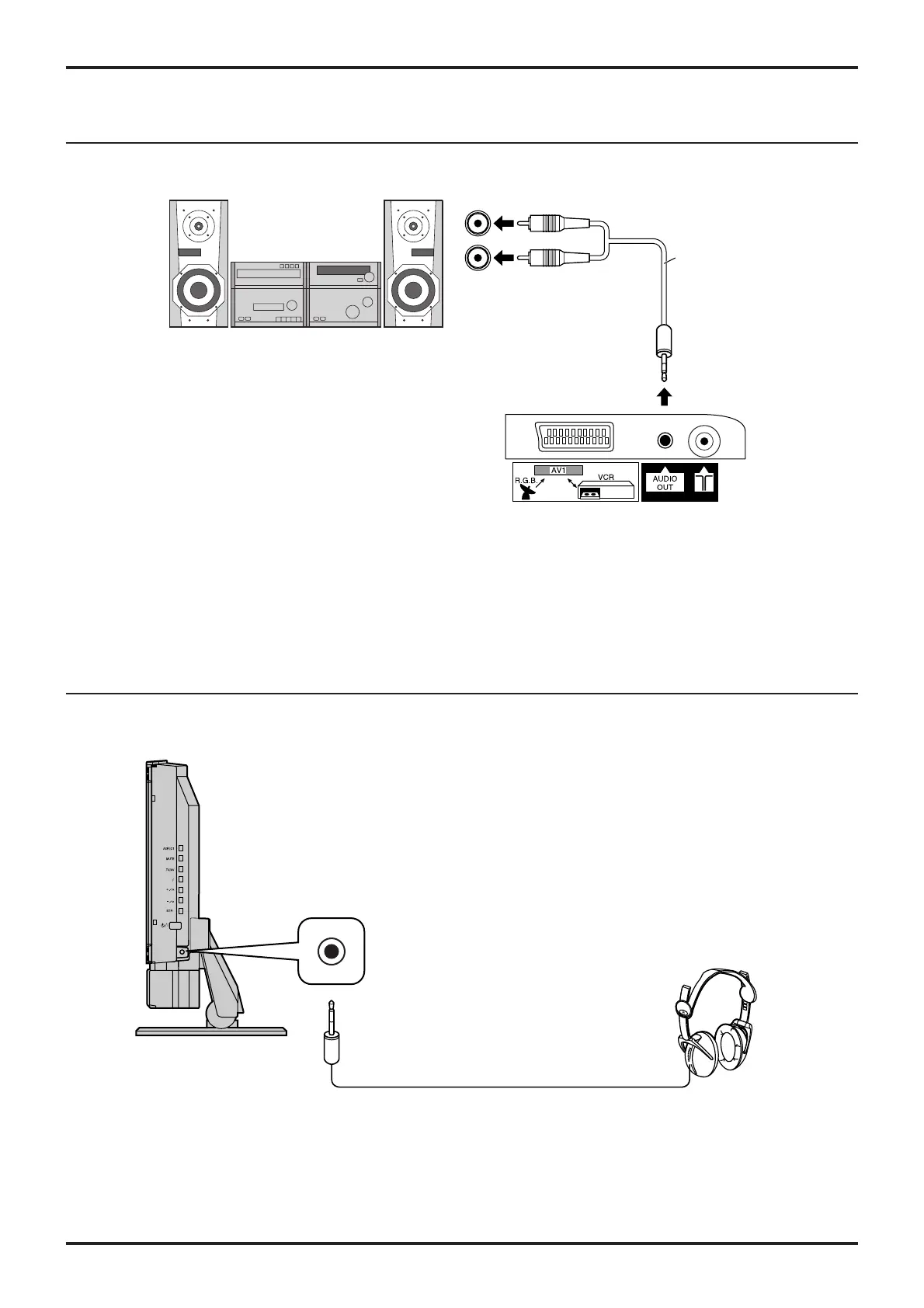

How to connect the AUDIO OUT terminals
AUDIO IN
3.5 mm stereo
plug to stereo
phono lead
L
R
Notes:
• The AUDIO OUT terminal provides a fixed level output only.
(The menu settings and remote control volume controls have no effect.)
• Additional equipment and cables shown are not supplied with this set.
Amplifier to speaker system
Connecting Headphones / Earphones
Connect headphones / earphones as follows.
(Optional)
(Not supplied)
(3.5 mm stereo plug)
Notes:
• The volume level of the headphones can be adjusted by selecting “HEADPHONE VOL.” from the SOUND.
• Additional equipment and cables shown are not supplied with this TV set.
