Electrical Connections

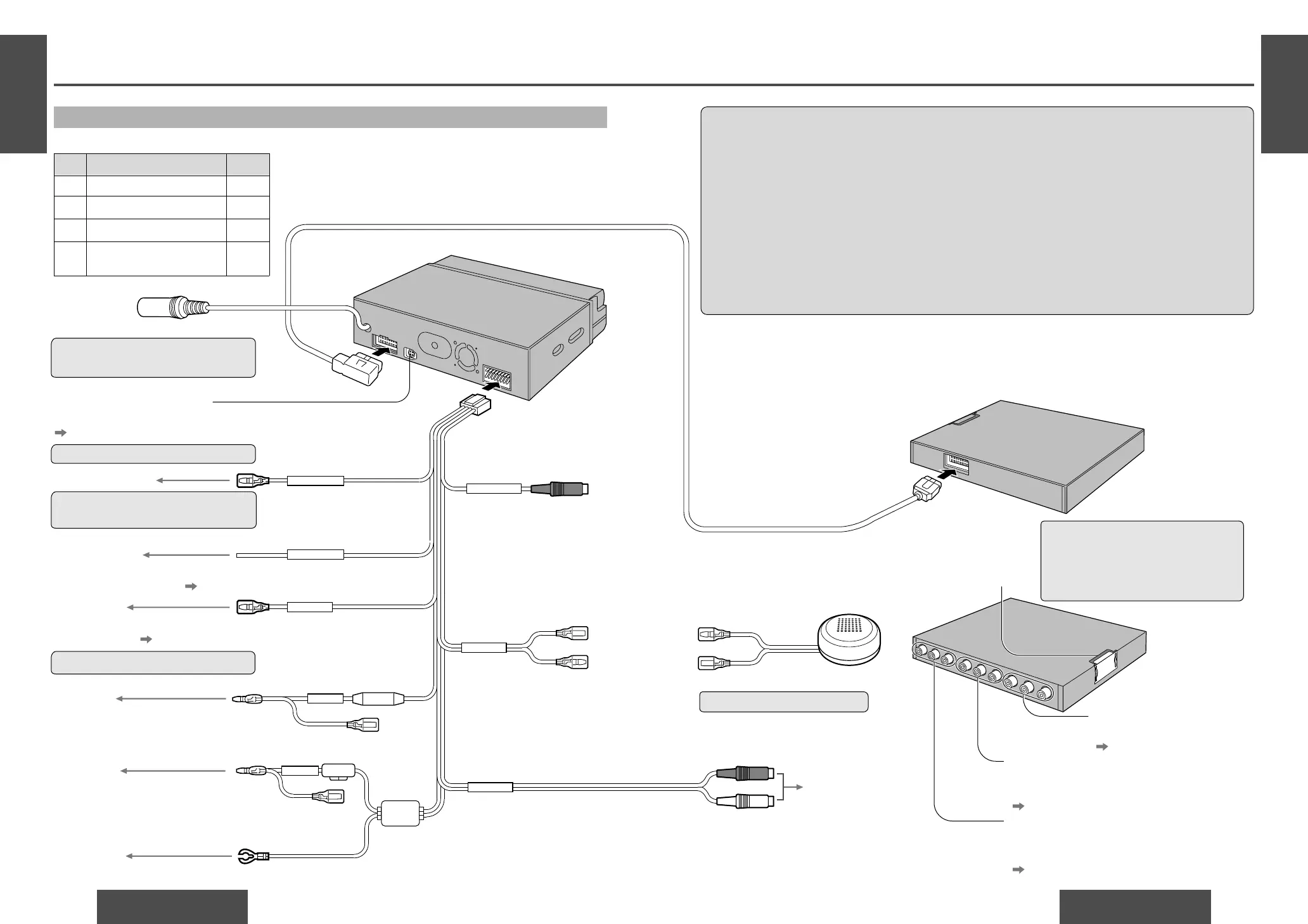

Wiring Diagram
Cautions:
≥ This unit is designed to operate off a 12 V DC, negative ground battery system.
≥ To prevent damage to the unit, be sure to follow the connection diagram below.
≥ Remove approximately
1
/
4
q (5 mm) of protective covering from the ends of the leads before connecting.
≥ Do not insert the power connector into the unit until the wiring is completed.
≥ Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all
cables and keep cable terminals free from touching any metal parts.
≥ Note that if your car has a driving computer or a navigation computer, disconnecting the battery cables
may cause the contents of memory for these computers to be lost.
≥ The side brake (parking brake) connection lead should be connected by a professional installer. In case
of difficulty, please consult your nearest authorized Panasonic Servicenter.
≥ All other installation methods require the use of dedicated metal fittings. Consult with a qualified servic-
ing engineer or your dealer if other methods are required.
Power connector
Video control lead
Digital signal output terminal
Connect the multi channel AV control unit with receiver (CA-TU9000U).
( See the operating instructions of the CA-TU9000U.)
Connector
Connect AV control unit with receiver (CA-TU7000U)
or multi channel AV control unit with receiver (CA-TU9000U).
R (Red)
L (White)
Reverse lead
When connecting the rear view camera,
use the reverse lead. ( page 79)
Use a reverse extension cord if needed.
You need the optical fiber cable (sold separately).
Cannot be used for a center speaker.
Leave the cover unremoved if you
do not connect AV control unit with
receiver (CA-TU7000U) or multi
channel AV control unit with receiver
(CA-TU9000U).
Side brake (parking brake)
connection lead
Be sure to wire the side brake (parking brake) for
safety and preventing accidents. ( page 78)
To the input terminat of
the auxiliary system.
Pre-out cord
Speaker lead
PRE-OUT
Video input terminal 1 (VTR1-IN)
Connect a VCR, camcorder, rear view camera, other
brand’s car navigation system, and so on.
( pages 77, 79)
Video input terminal 2 (VTR2-IN)
Connect a VCR, camcorder, rear view camera,
other brand’s navigation system, and so on.
( pages 77, 79)
Video output terminal
Connect the second monitor.
( page 77)
Panasonic
(Black/green stripe)
(Black)
Supplied speaker
Power lead
To ACC power, _12 V DC.
Ground lead
Battery lead
CY-VMD9000U
Control unit (rear)
Remote control signal
receiver cord
To the REMOTE-IN terminal of the
Panasonic DVD video player
(CX-DV700U).
Use this cord when connected to
CX-DV700U.
CY-VMD9000U Display unit (rear)
@
Display unit/control unit connecting cord
C
To the RGB connector of the Panasonic car
navigation system (not available yet).
(Green/yellow stripe)
(Blue/yellow stripe)
(Violet/white stripe)
A
To the car battery, continuous _12 V DC.
To a clean, bare metallic part of the car chassis.
(Resistor 220 ≠)
(Red)
(Fuse 5 A)
(Yellow)
(Black)
(Black)
-
+
(Black)
(Black/green stripe)
VIDEO-CONT
SIDE BRAKE
REVERSE
ACC
220
Ω
BATTERY 5 A
5 A
SPEAKER
REMOTE-OUT
To the video control lead of the Panasonic
car navigation system (not available yet).
VTR1-IN
VTR2-IN
VIDEO-OUT
Control unit (front)
RGB input cord
Accessory used for wiring
No. Item Q’ty
@ Power connector 1
A Reverse extension cord 1
B Clip connector 1
C Display unit/control unit
connecting cord
1
Notes:
≥ Be sure to fully plug in the connector.
≥Install the cord to avoid high-temperature spots and secure with clamps and tape.
≥When game devices are connected, the image may be unstable.
≥When removing the DIN plug, be sure to press the clip.
