Electrical Connections (Continued)

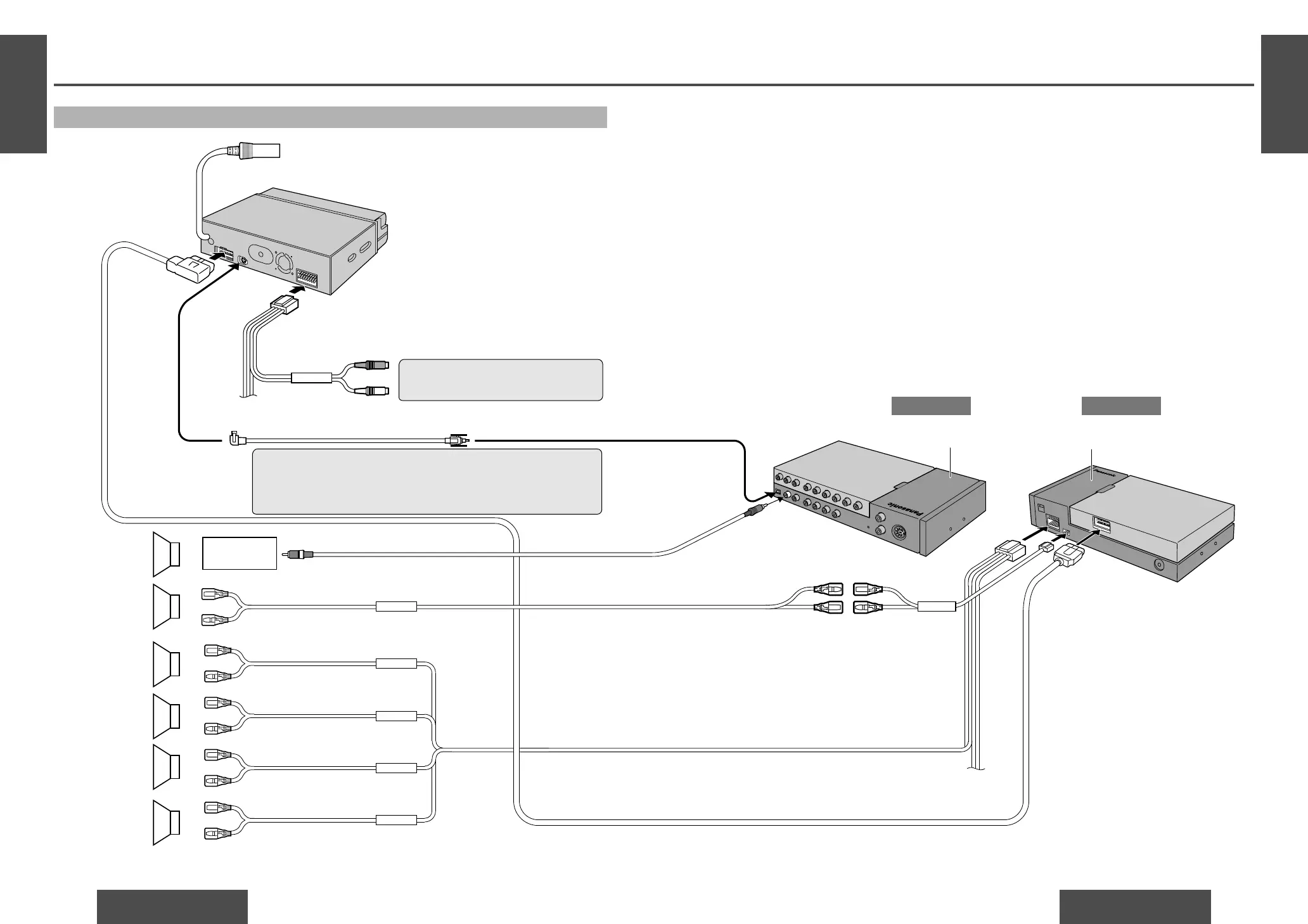

Connection with Multi Channel AV Control Unit with Receiver (CA-TU9000U)
Center speaker extension cord
(supplied to CA-TU9000U)
(Black/green stripe)
To center speaker
To subwoofer
(Green/black stripe)
(Violet)
(White)
(Gray)
(Green)
(Red)
(Violet/black stripe)
Rear speaker cord (left)
(White/black stripe)
(Gray/black stripe)
RCA cord (optional)
(Black)
+
-
+
-
+
-
+
-
(Left)
(Right)
(Left)
(Right)
To front speaker
To rear speaker
+
-
Power amplifier
Power connector
Pre-out cord
R (Red)
Notes on handling optical fiber cable:
•
•
CY-VMD9000U
Display unit (rear)
Center speaker cord
(supplied to CA-TU9000U)
(Black/green stripe)
(Black)
@
L (White)
Optical fiber cable (sold separately, CA-LRD60)
Do not bend the cable sharply.
Do not allow the cable to be damaged by getting it caught in the door, placing a
heavy object on it, etc.
Rear speaker cord (right)
Front speaker cord (left)
Front speaker cord (right)
CY-VMD9000U Control unit
No audio is output from the pre-out cord when
connecting to CA-TU9000U.
CY-VMD9000U Control unit
Multi channel AV control unit
with receiver (front)
(Red)
Multi channel AV control unit
with receiver (rear)
Power connector (supplied to CA-TU9000U)
Display unit/control unit connecting cord
CA-TU9000U CA-TU9000U
PRE-OUT
CENTER
REAR L
REAR R
FRONT L
FRONT R
CENTER
C
Notes:
≥ Refer to the operating instructions for the connected devices, in addition.
≥ Refer to the operating instructions for the CA-TU9000U.
