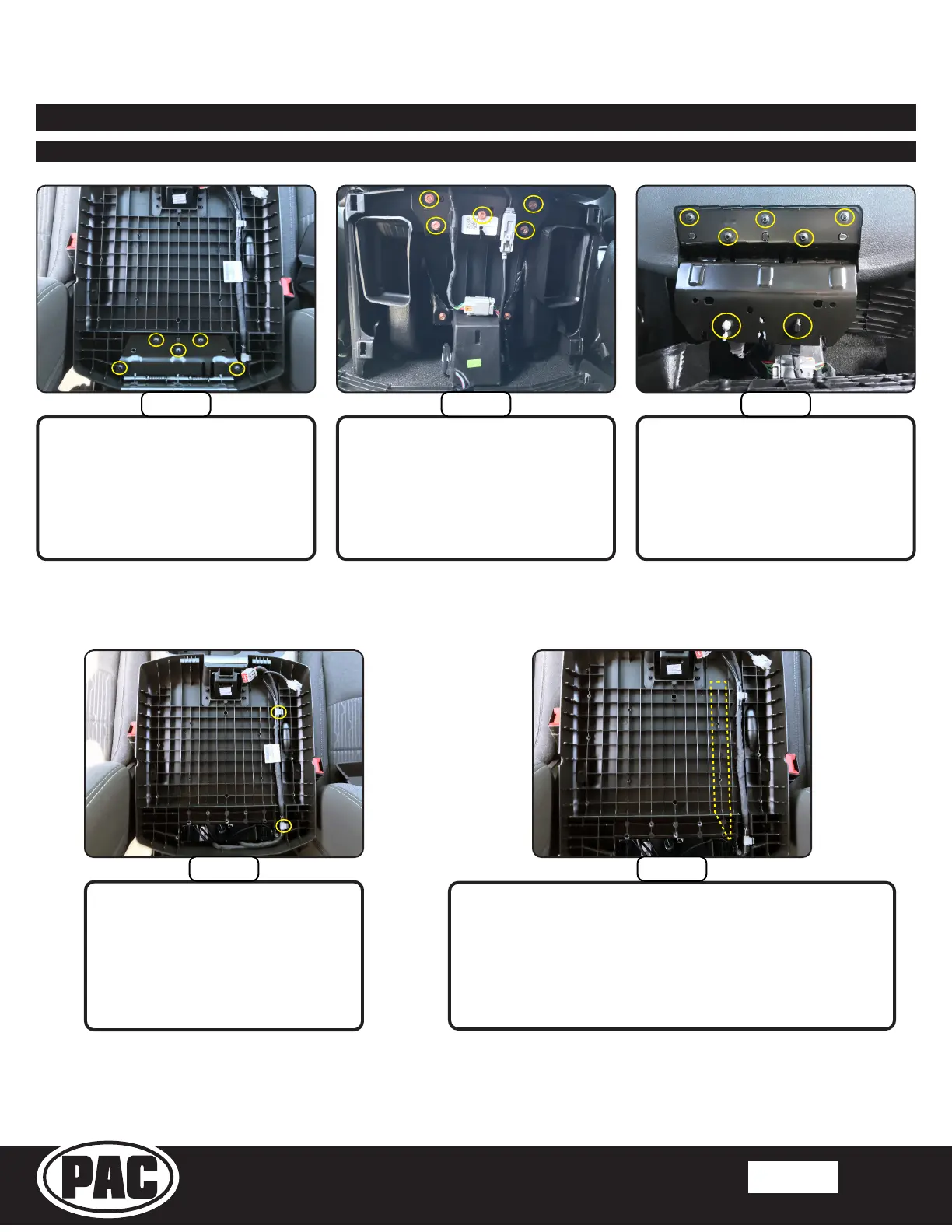

Section 1: Disassembly (continued)
Part Four: Floor Mounted Center Console Disassembly (continued)
RemovetheveTorxT20screws
from the upper lid bracket and
remove the upper console lid.
2016+ models:
Unclip and remove the factory
USB wire harness from the upper
console to allow room to route the
replacement hub cables.
At the rear of the console, remove
the three 7mm screws from the
lower lid bracket. Loosen the two
lower 7mm screws. Unplug the two
connectors and remove the upper
console assembly.
2013-2015 models: For trucks equipped with a 12V
receptacle in the upper console, the factory wire harness
will need to be reconnected. To allow space for routing the
replacement hub cables, the plastic ribs will need to be
trimmedushintheareanexttothefactorywireharness.
On the backside of the upper
console,removetheveTorxT20
screws securing the hinge. Unclip
the console wire harnesses from the
hinge and remove.
OR
Step 6Step 5Step 4
Step 7A Step 7B
