SRK-RAM13HX
Radio Replacement Kit
for 2013-2018 RAM Trucks
and 2019-2024 RAM Classic
Stinger HEIGH10
© 2025 Stinger. All rights reserved. PAC is a Power Brand of Stinger Solutions.
PAC-Audio.com / StingerSolutions.com
Pacific Accessory Corporation
Page 13
Rev: V1
Date: 020725
®

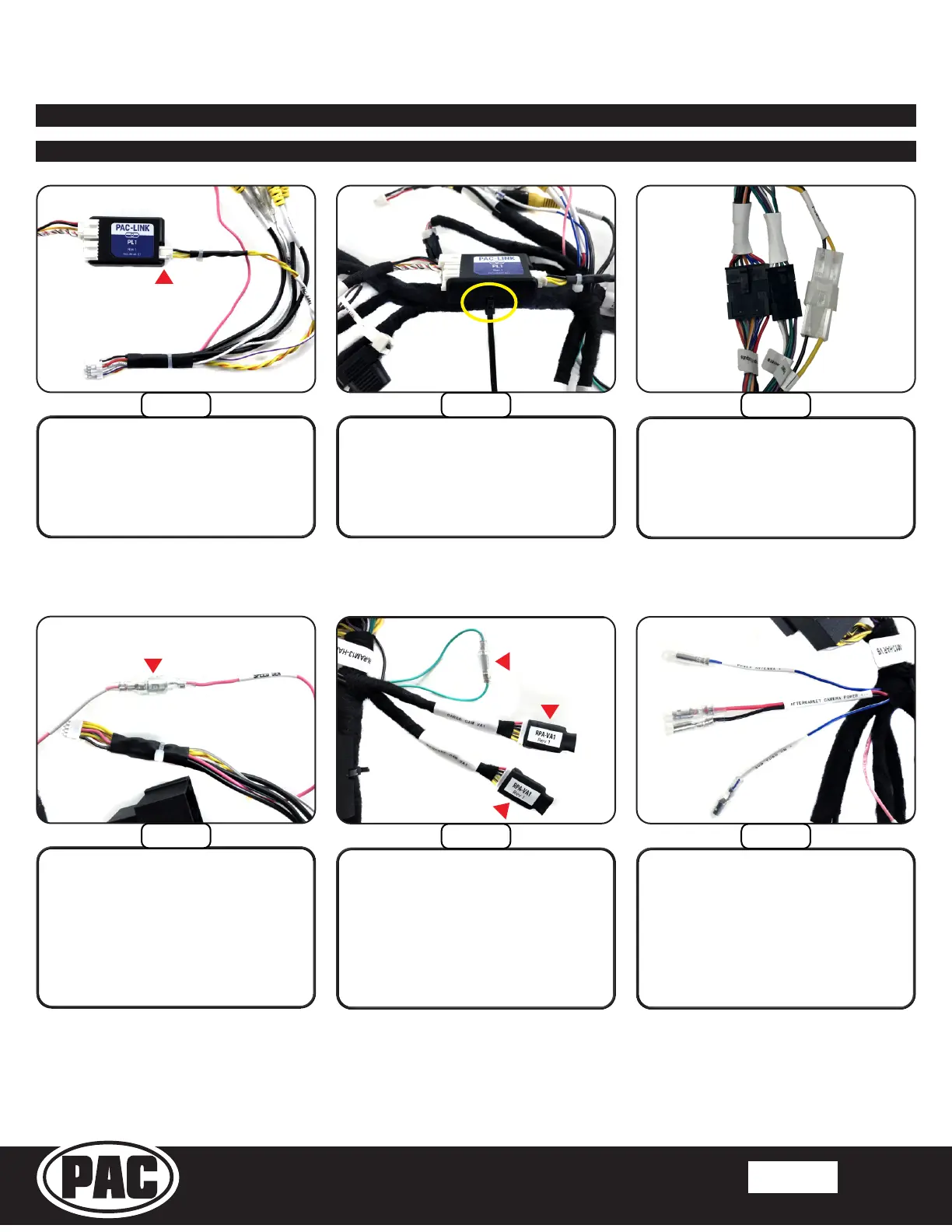

Section 3: Interface and Main Harness Connections and Preparation (continued)
Part Two: Main Harness Connections
From the HEIGH10 wire harnesses,
connect the 3-pin “PAC-Link” lead
from the 10 Pin Multi Camera
Harness (SE-1104) to the PAC-
LINK Interface Module (PL1).
On the Main Wiring Harness,
connect the male and female ends
of the Light Green leads together.
If factory equipped, connect a
Dierential Video Adapter (RPA-
VA1) to the “REVERSE CAM
VA1” and “CARGO CAM VA1”
connectors.
Connect the pink “SPEED SEN”
lead on the Radio Harness
Adapter to the pink “SPEED SEN”
lead on the 10 Pin Multi Camera
Harness.
The Main Wiring Harness also
provides Aftermarket Camera
Power/Ground, Amp Turn On and
Power Antenna leads if needed.
Zip tie the PAC-Link Interface
Module to the Main Wiring
Harness (SRK-RAM13-HAR).
Step 1
Step 4
Step 2
Step 5 Step 6
Connect the Radio Harness
Adapter (SR-SRK-ADAPT-
UN1810) to the Main Wiring
Harness (SRK-RAM13-HAR).
Step 3
