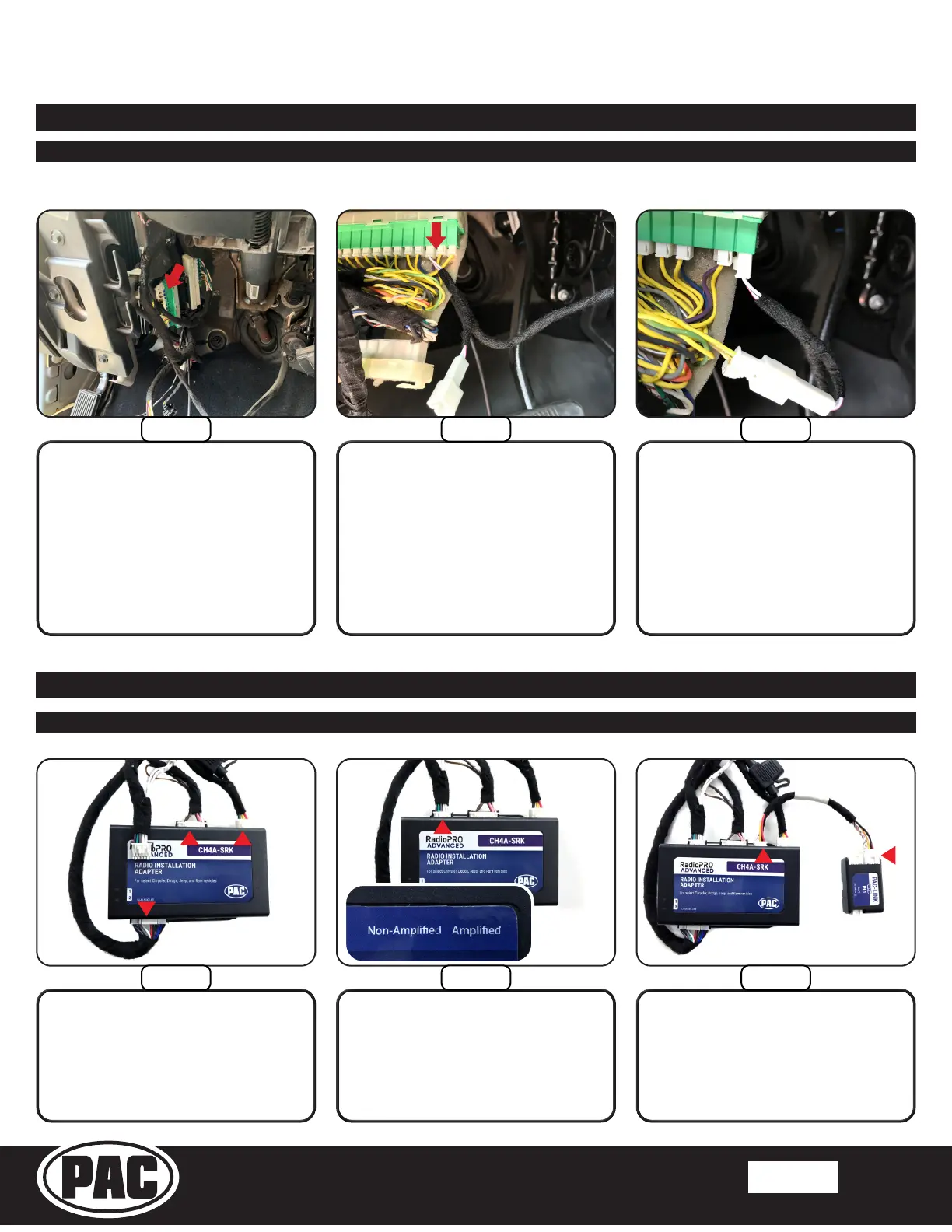

Section 2: In-Vehicle Harness Connections and Preparation (continued)

Part Five: CAN Connection Harness - MQS4PT-CANC (Optional)

Note: Installation of the CAN Harness is only required for 2018 and newer trucks.

To the left of the steering column,

locate the green CAN connection

blocks with white plugs. Route the

white 2-pin connector end of the

CAN-Bus Connector Harness

(MQS4PT-CANC) from the radio

opening to the CAN connection

block.

If there are no open ports on the

CAN junction block, unplug one

factory male connector and insert

it into the female connector on the

CAN-Bus Connector Harness,

then insert the male connector on

the CAN-Bus Connector Harness

into the now empty port on the CAN

junction block.

Plug the male white connector from

the CAN-Bus Connector Harness

into any open spot on the green

CAN junction block.

The female connector on the CAN-

Bus Connector Harness will not

be used.

OR

Section 3: Interface and Main Harness Connections and Preparation

Part One: CH4A-SRK Radio Interface Connections

Connect the three connectors from

the Main Wiring Harness (SRK-

RAM13-HAR) to the indicated

ports on the Radio Replacement

Interface Module (CH4A-SRK).

Referencing the sticker on the

back, connect the fourth connector

to the appropriate port. Amplied

ifthetruckhasafactoryamplier,

Non-Amplied for base audio.

Connect one end of the 6” Data

Harness (10P-2-10P-6-HAR) to

the Expansion Port on the Radio

Replacement Interface Module and

the other end to either port on the

PAC-LINK Interface Module (PL-1).

1

2

3

4

Step 1

Step 2A

Step 2B

Step 1 Step 2 Step 3
