SRK-RAM13HX
Radio Replacement Kit
for 2013-2018 RAM Trucks
and 2019-2024 RAM Classic
Stinger HEIGH10
© 2025 Stinger. All rights reserved. PAC is a Power Brand of Stinger Solutions.
PAC-Audio.com / StingerSolutions.com
Pacific Accessory Corporation
Page 10
Rev: V1
Date: 020725
®
Section 2: In-Vehicle Harness Connections and Preparation (contiued)
Part Two: Media Hub Installation (Seat Mounted Storage Console)

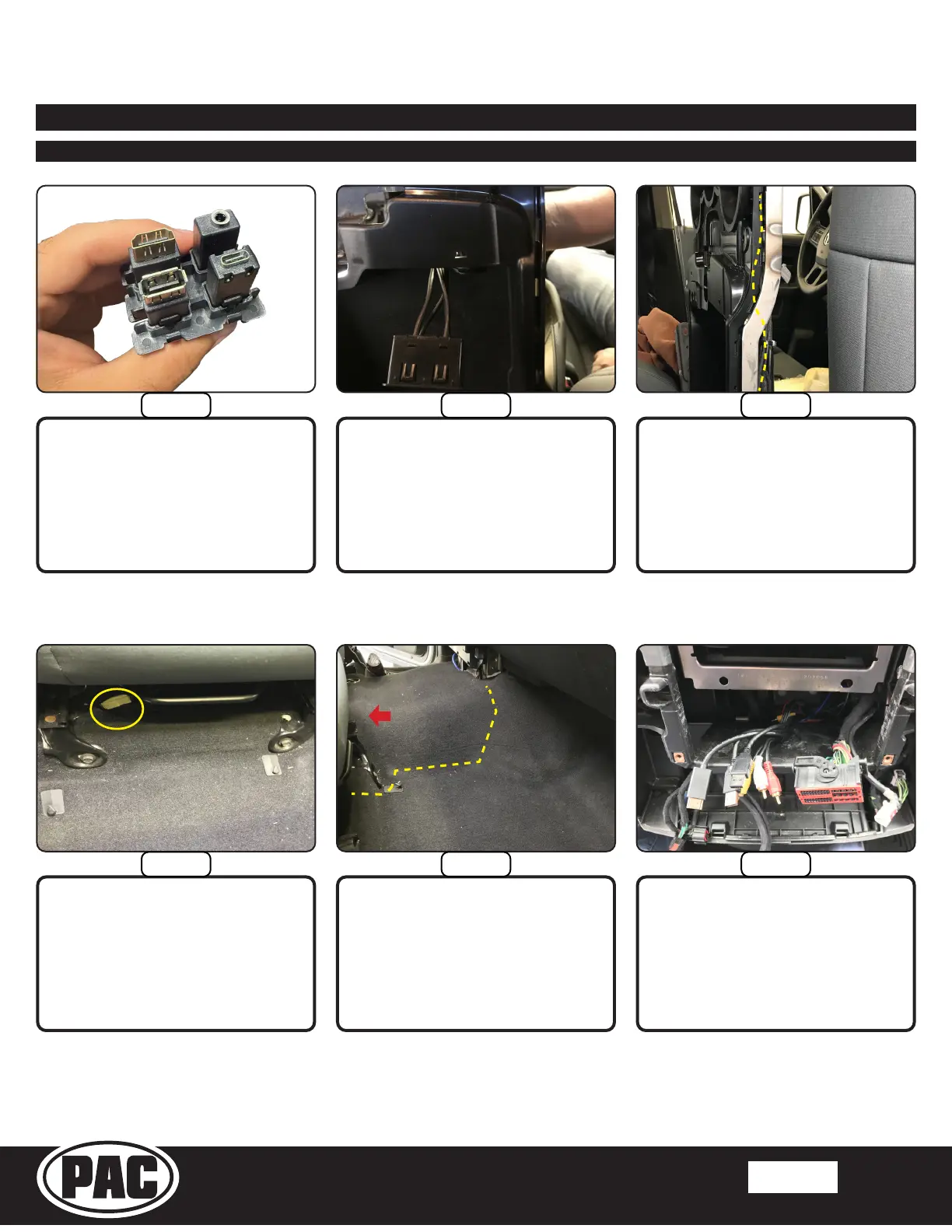

Select the correct Media Hub plastic
assembly for the vehicles console
type and assemble the Media Hub.
Feed the cables under the carpet;
either using the pre-existing hole
for the air bag harness or cutting a
new hole closer to the center of the
vehicle.
Feed the cables through the factory
opening and install the hub into the
console inner tray.
Remove the lower panel under the
center storage drawer (1). Route
the cables (under the carpet) to the
opening at the base of the center
dash area.
Following the factory harness, route
the media cables down under the
passenger seat. Zip tie securely to
the factory harness to ensure console
hingecoverwilltproperlywhen
reinstalled.
Route the media cables up into the
lower radio opening, below the metal
bracket.
1
Step 1
Step 2 Step 3
Step 4 Step 5 Step 6
