2-8
Alignment Using the Ring Laser Pointer
2-4 Alignment Using the Ring Laser
Pointer
The sensor head installation position can be easily adjusted by using the ring laser pointer that is emitted
from the sensor head. The diameter of the ring laser pointer indicates the field of view. Therefore adjust the
sensor head installation position and the measurement target passage position so that the measurement
target is larger than the ring laser pointer.

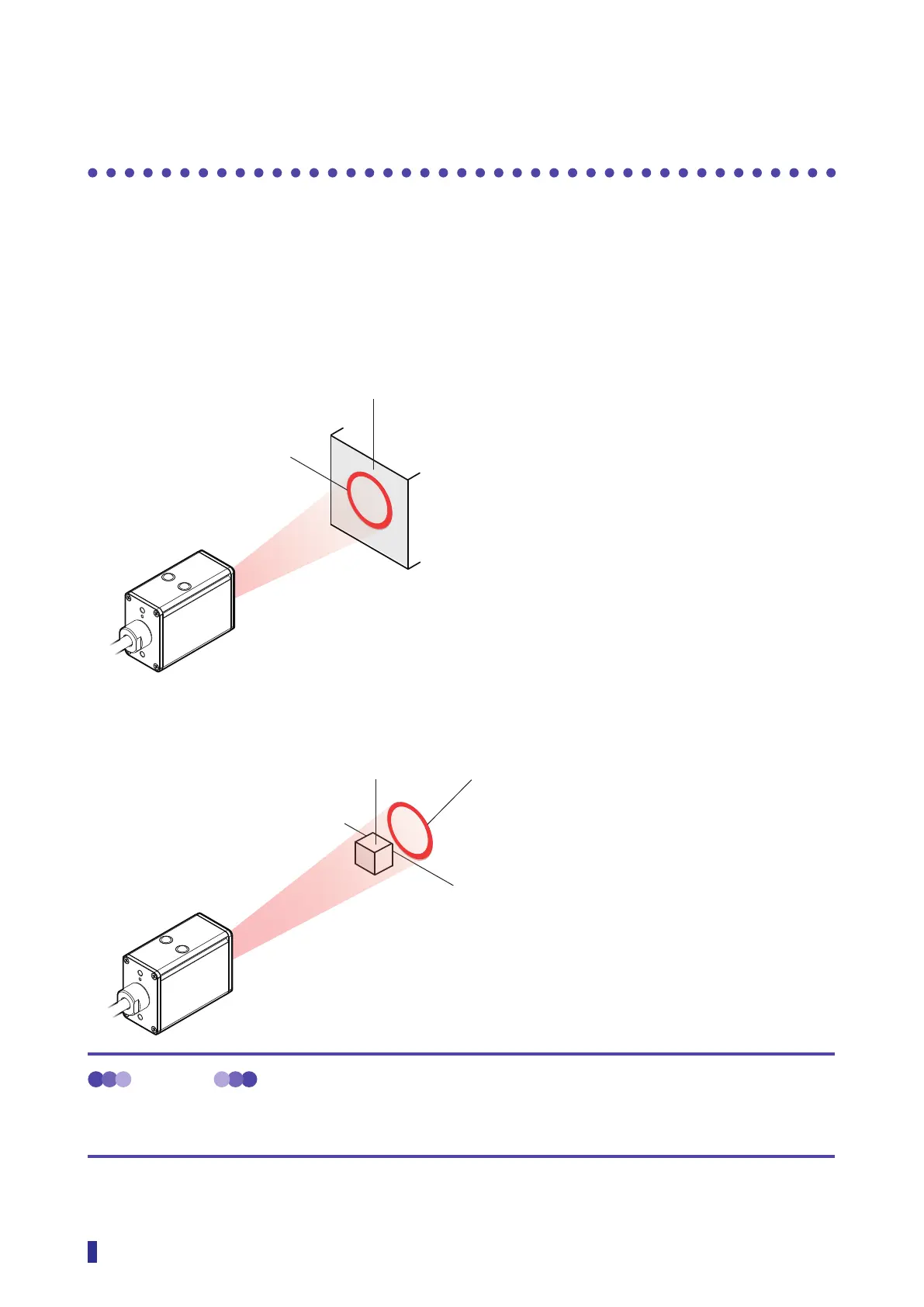

Correct
The ring laser pointer is contained within the measurement target.
Ring laser pointer
Measurement target
Incorrect
The ring laser pointer protrudes from the measurement target.
Ring laser pointer
The temperatures of both the measurement target
and background are measured, preventing accurate
measurement.
Measurement target
MEMO
This ring laser pointer visually indicates the measurement position and field of view.
Because the temperature is not actually measured using the ring laser pointer, measurement is possible even when the
ring laser pointer is turned OFF.
