2-9
1
2
Installation and Connections

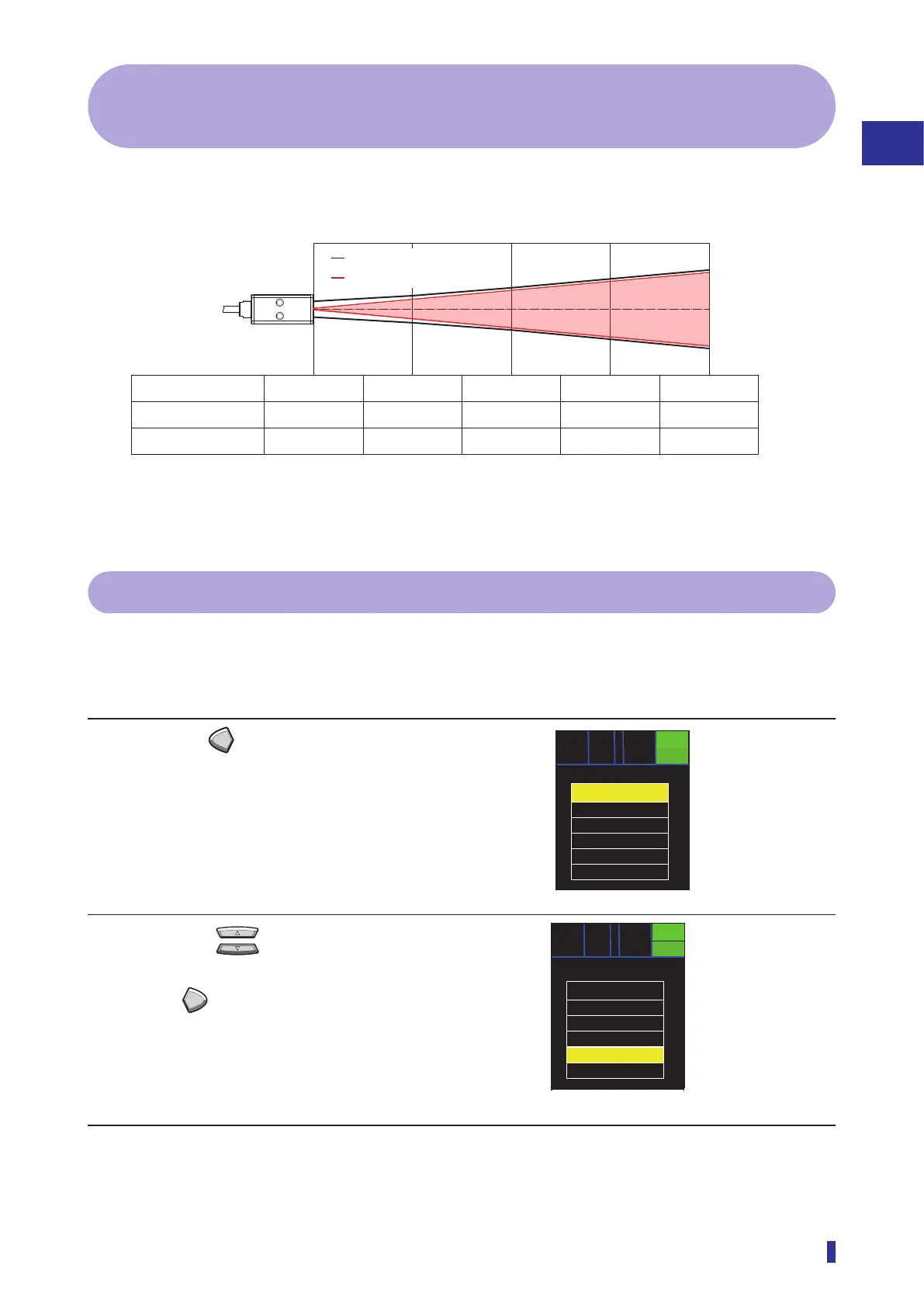

Alignment Using the Ring Laser Pointer
2-4-1 Relationship between the Field of View and
the Ring Laser Pointer
The relationship between the field of view and the laser is shown in the figure below.
• Field of view (TI-S30)
0 250 500 750 1000
Ø12
Ø1
Ø21
Ø15
Ø30
Ø30
Ø45
Ø45
Ø60
Ø60
Distance
Field of view
Ring laser diameter
Field of view
Ring laser diameter
Unit: mm
• The field of view stated above is for an output response of 90%.
• The measurement target must be fit in the ring laser pointer.
2-4-2 Ring Laser Pointer Lighting Methods
Set the ring laser pointer lighting method.
Setting procedure
1 Press
MODE
.
The screen changes to the settings screen.
2 Press the keys and select “Laser
control” from the settings menu, and then
press
SET
.
The screen changes to the laser settings screen.
オフ
オフ
警告
3
設定
バンク
応答時間
測定モード
出力モード
上下限設定
▼
Settings
Bank
Operation mo
Measurement
I/O settings
Alarm
▼
OFF
OFF
BNK
1
オフ
オフ
警告
3
OFF
OFF
BNK
1
Settings
▲
Timer functi
Analog outpu
Emissivity
Laser contro
▼
