Installation
2-axis mounting bracket (when BEF-TISH-AB is used)
BEF-TISH-AB is a mounting bracket consisting of a set of BEF-TISH-A and BEF-TISH-B.
Combining the two mounting brackets allows fine adjustment of the measurement point in two axes: the
vertical direction and horizontal direction.
The typical installation method described here uses BEF-TISH-AB.
In order, first install BEF-TISH-A, then install BEF-TISH-B.
They cannot be installed in the reverse order.

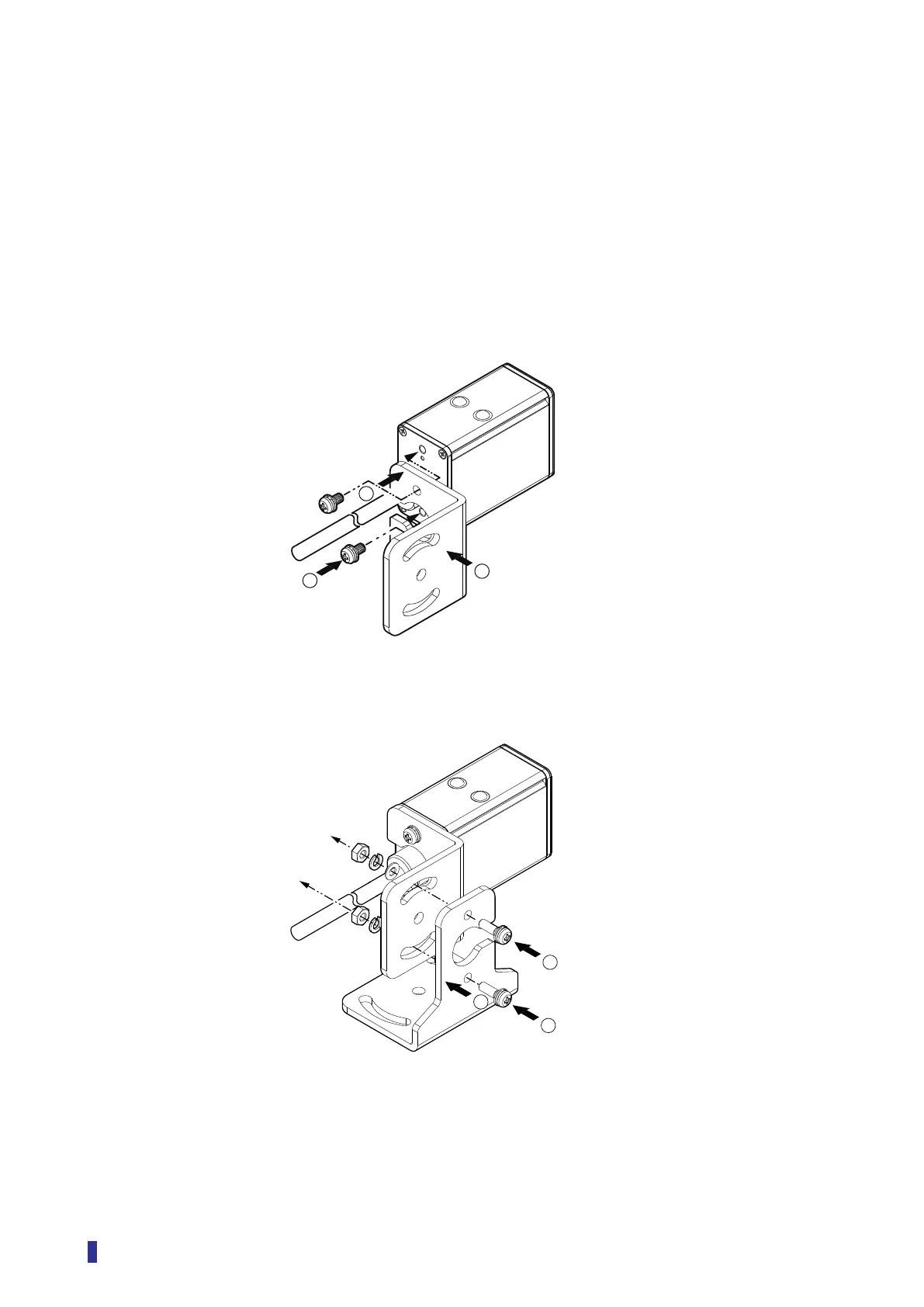

① Pass the cable through the groove in the BEF-TISH-A mounting bracket.
② Place the BEF-TISH-A mounting bracket in contact with the head.
③ Fasten using the screws (M3 × 8) that were provided with the mounting bracket.
④ Place BEF-TISH-B in contact with BEF-TISH-A.
⑤ Fasten using the screws (M3 × 10) and nuts that were provided with the BEF-TISH-B mounting bracket.
Use a tightening torque of 0.6 N·m or less.
2
1
3
4
5
5
