Installation and Connections
Installation
2-2-2 Sensor Head Installation

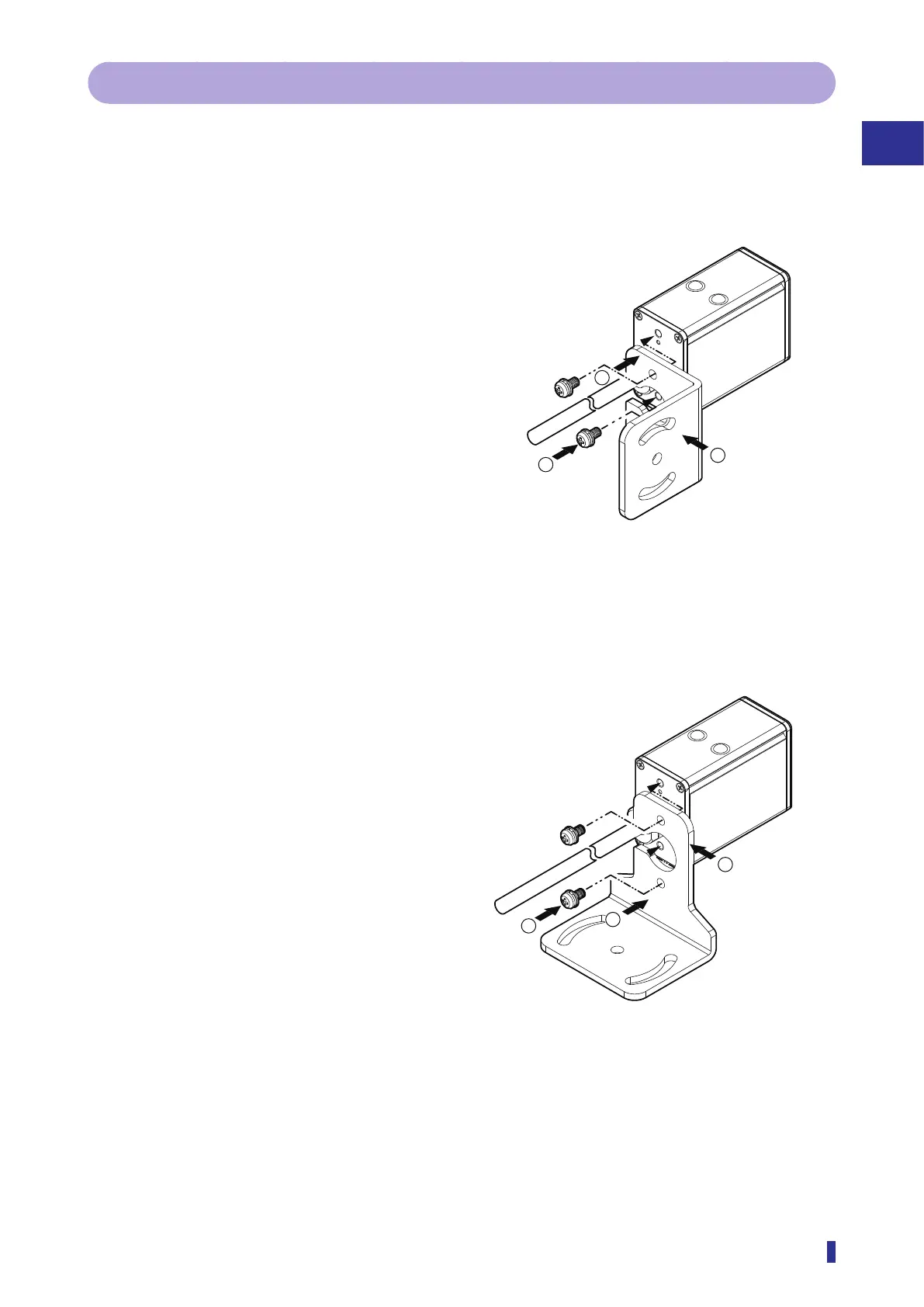

The installation method described here uses the optional mounting bracket.
Wall mounting bracket (when
BEF-TISH-A is used)
① Pass the cable through the groove in the mounting
bracket.
② Place the mounting bracket in contact with the
head.
③ Fasten using the screws that were provided with
the mounting bracket.
Use a tightening torque of 0.6 N·m or less.
Floor mounting bracket (when
BEF-TISH-B is used)
① Pass the cable through the groove in the mounting
bracket.
② Place the mounting bracket in contact with the
head.
③ Fasten using the screws that were provided with
the mounting bracket.
Use a tightening torque of 0.6 N·m or less.
2
1
3
1
2
3
