17User ManualDesigned to Enhance Refrigerator
Adjustment of Upper Drawer Cabinet
Vertical Adjustment:
Rotate the refrigerator adjustment bolts clockwise or
anticlockwise using an Allen key to move the cabinet door
up or down.
Horizontal Adjustment:
Use an Allen key to rotate the lateral set screws on the
refrigerator door clockwise or anticlockwise, moving the cabinet
door left or right.
Front/Back Adjustment:
• Upper Side: Adjust the front/back clearance by moving the
upper side of the cabinet door in relation to the upper fixing
bracket and refrigerator.
• Middle Side: Move the cabinet door front or back until it's in the
desired position, then tighten the hex socket set screw on the
lateral sides of the refrigerator door.
• Lower Side: Adjust the lower fixing bracket based on the
front/rear clearance between the lower fixing bracket and
screws, making sure it's properly aligned.
NOTE: These adjustments should be calibrated repeatedly until
the cabinet doors are perfectly aligned with the refrigerator.

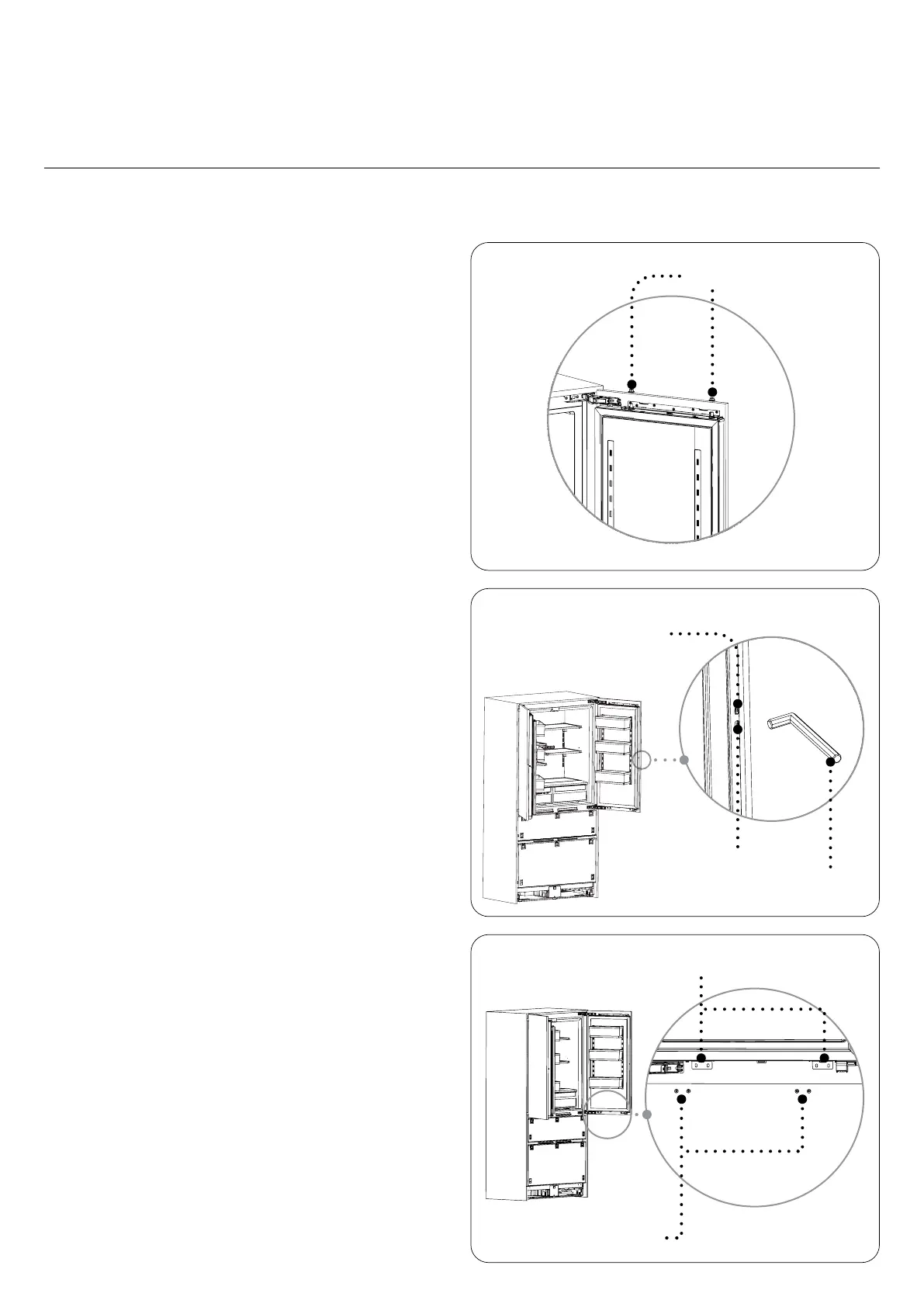

Fixing the Cabinet and Refrigerator Door
Secure the Hexagon Flange Nuts:
Fasten the hexagon flange nuts on the upper fixing bracket.
(Refer to Fig. 15).
Tighten the Set Screws:
Fasten the lateral set screws and hex socket set screws on the
refrigerator door. (Refer to Fig. 16).
Lower Fixing Bracket Adjustment:
Slightly loosen the fixed hex socket set screws on the lower fixing
bracket and refrigerator door to allow the lower fixing bracket to
move in all directions. Then, secure the lower fixing bracket and
cabinet door with flat head self-tapping screws. Once the cabinet
door is properly adjusted, fasten the socket head cap screws to
lock everything in place. (Refer to Fig. 12).
Installing Your Refrigerator
Figure 15
Hexagon Flange Nuts
Hex Socket
Set Screw
Lower Fixing Bracket
Flat Head Fixing Screws
Set Screw
Allen Key
Figure 16
Figure 17
