16 User Manual Refrigerator
Fixing the Cabinet and Refrigerator Door
• Before you align the Cabinet Door and Refrigerator Door, attach
the handle or knob to the cabinet door.
• Measure the distance between the bottom edge of the
refrigerator cabinet plate (once adjusted) and the notch on the
drawer door’s end cover. (Refer to Fig. 10).
Installing the Upper Drawer Door
• To install the Upper Drawer Door, start by loosening and
removing the hexagonal flange nut and the fixing plate from
the drawer. (Refer to Fig. 11)
• Ensure the Fixing Plate on the Drawer from the previous step is
centred of cabinet panel by making sure both sides are showing
the same distance, and the stickers are taped to the cabinet
doors. (Refer to Fig. 12)
• Fix the fixed plate on the drawer and the cabinet fixed plate
in the corresponding position on the sticker, fix the fixed
plate on the drawer and the cabinet fixed plate with flat-head
self-tapping screws, and tear off the sticker after fixing.
(Refer to Fig. 13)
• After fixing all the cabinet fixing plates, hang the cabinet door
onto the refrigerator door. (Refer to Fig. 14)
Installing Your Refrigerator

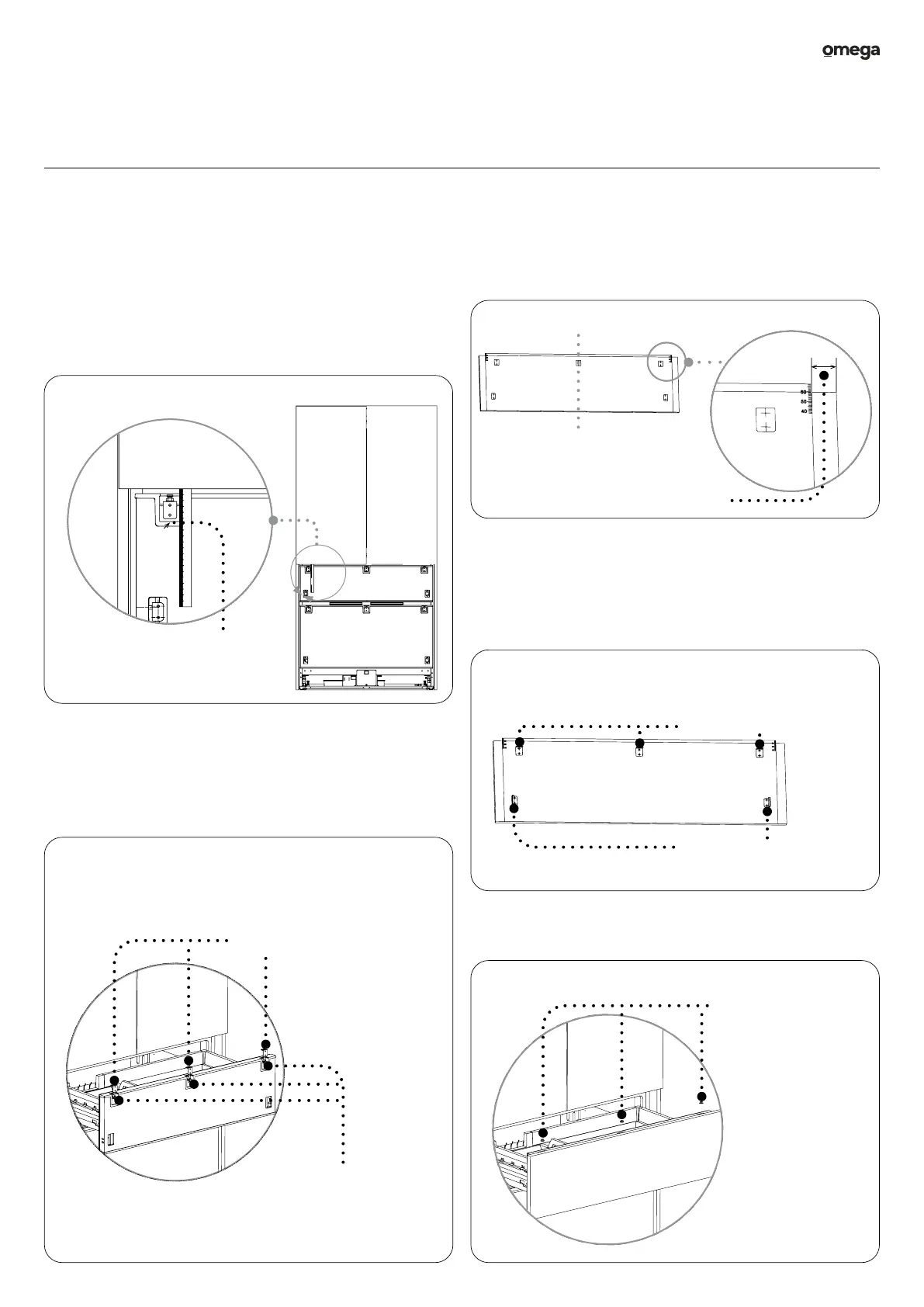

Figure 10
Measure the size of the
adjusted lower edge of the
cabinet to this point
Figure 11
Figure 14
Hexagon Flange Nuts
Figure 12
Centre Aligned
This distance should be
the same on both sides
Fixing Plate on Drawer
Cabinet Fixing Plate
Figure 13
Fixing Plate on Drawer
Hexagon Flange Nuts
