5.5 Additional electric connections

The units must be earthed.

The units are wired internally from factory.

ToconnectthetheCTRL-DSPtothemotherboardusea4polestwisted-paircable:30mmaxlength.

Figures below show the wiring diagram.

Inputs/commands

N°1ACsupplyconnector.

N°3on/offinputs(volt-freecontacts),N°1forambientsensors(namedIAQ),N°1forboostmomentaryswitch(namedBST)and

N°1forremoteON/OFFenable(namedHY/S1).

N°11-10Vanaloginput(namedSLAVE).

N°14-poleconnectorforCTRL-DSP(RS485plus12Vdcsupply).

Outputs

N°1on/offoutputforpre-heating/post-heating(relaycontact–250Vac5A).

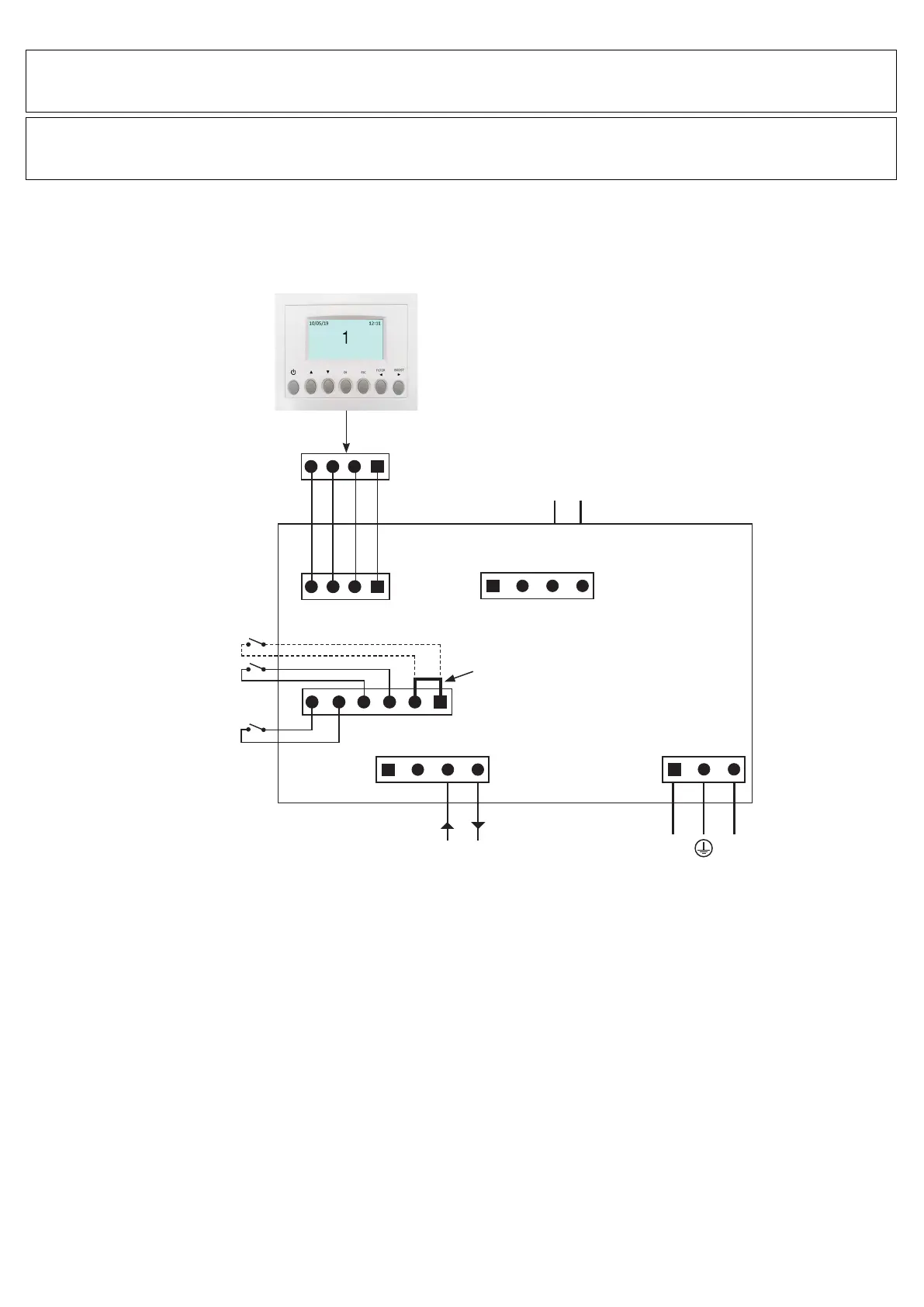

Fig. 5.q Electrical connections on the motherboard ﬁtted in the terminal box.

WARNING

Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or

electrical work!

WARNING

The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in

accordance with local rules and regulations.

CTRL-DSP

N L

-+ +

SLA

1-10V

HEAT/CD

+12V

GND

SLAVE input

1-10V

AC power supply

Heat output

(MAX 250Vac 5A)

Boost momentary

switch (BST)

IAQInput

(AirQualityi.e.SEN-HY)

HY/S1Input

(for remote

ON/OFFenable)

BST

IAQ HY/S1

DONOTREMOVE

(see§7.3 Remote enable)
