5.4 Precabled electric connections

The unit must be earthed.

The units are wired internally from factory.

Unitcomespre-wiredwith:

-mainssupplycable(3-core:brown,blue,yellow/green).

-controlcable,forconnectiontoCTRL-DSP(4-core:green,brown,yellow,white).

-cableforconnectiontoremotesensor(2-core:blue,brown).

To increase the cable length of the CTRL-DSP use a 4 poles twisted-pair cable (30m max length).

WARNING

Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or

electrical work!

WARNING

The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in

accordance with local rules and regulations.

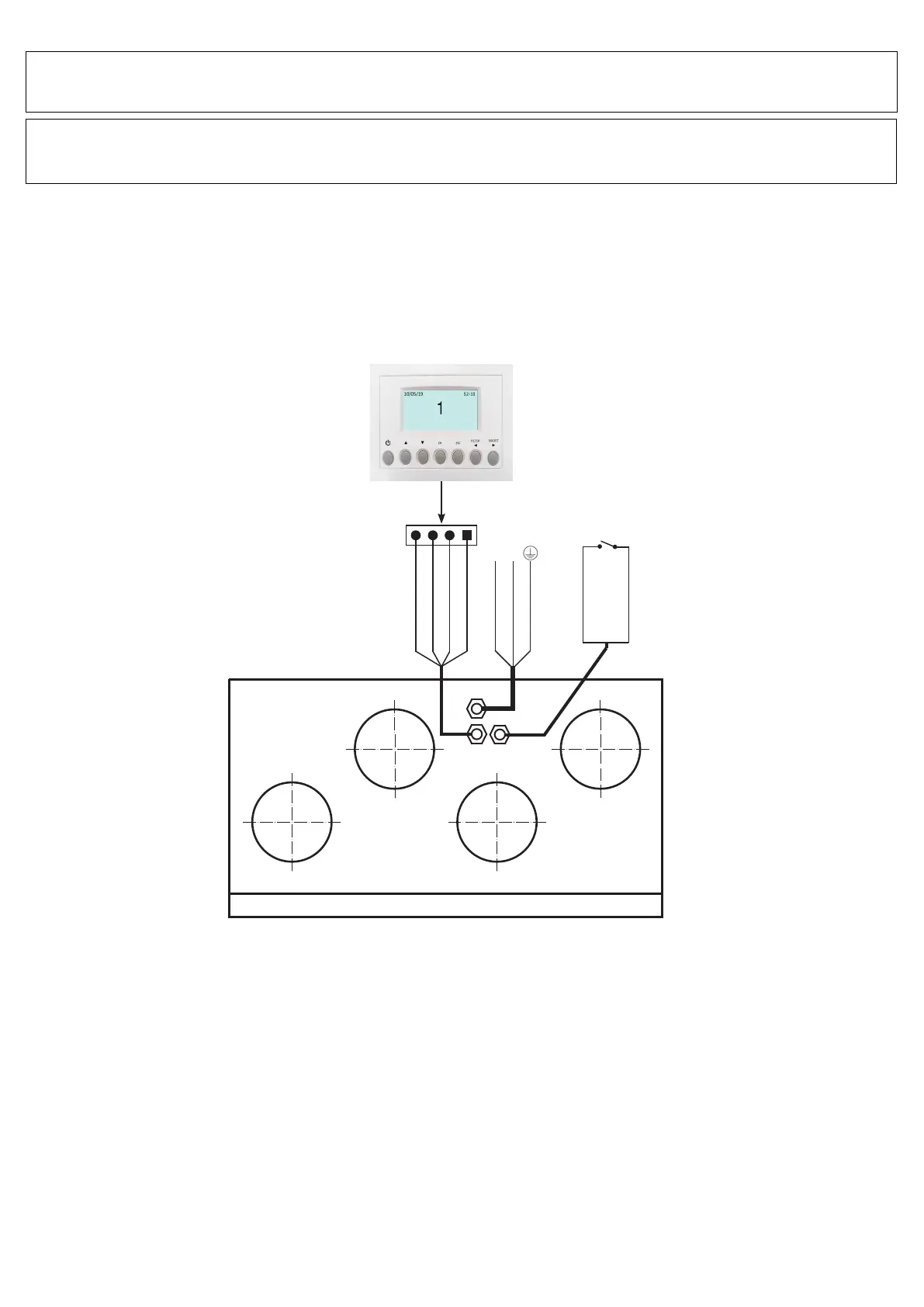

Fig. 5.p Electric connections

YELLOW-GREEN

BLUE

BROWN

SUPPLYCONTROL

YELLOW (A)

WHITE (B)

BROWN (+12V)

GREEN (GND)

REMOTE SENSOR

BLUE

BROWN
