DOLCECLIMA COMPACT S & DOLCECLIMA SLIM

EN - 11

ENGLISH

2 - INSTALLATION

2.1 - HOW TO TRANSPORT THE CONDITIONER

• Transport and handling of the appliance must be carried out in vertical position.

• If it is transported in a horizontal position, wait at least one hour before starting it.

• Before moving or transporting the appliance, completely drain condensation by

working as described in paragraph 4.2.a

CAUTION

 Movingtheairconditionerondelicateooring(e.g.woodenooring):

• Completely drain condensation.

 • Takegreatcarewhenmovingtheconditionerasthewheelscouldmarktheooring.

Although the wheels are made from a rigid material and are swivelling, they could get

damaged by use or excessive dirt.

It is recommended to check that the wheels are clean and that they can move freely.

2.2 -

WARNINGS

A failure to respect what follows may cause damages to the appliance.

a. Install the air conditioner on at and stable surfaces and on the

oor.

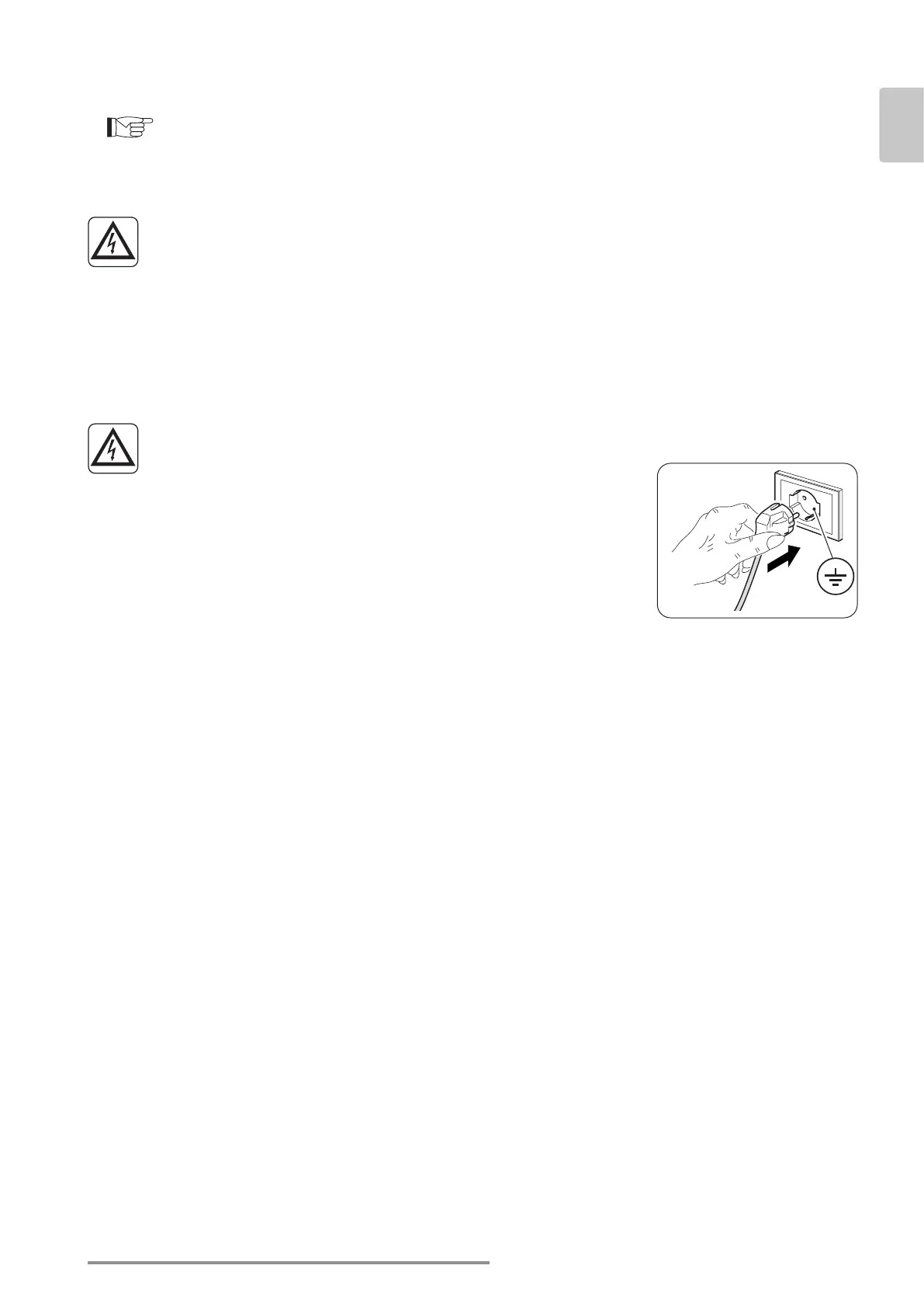

b. Only connect the air conditioner to power sockets equipped with

a ground system.

c. Make sure that curtains or other objects do not obstruct the air

suction lters (Fig.7).

d. Make sure to keep a minimum distance of 50 cm (Fig.1) between

the air conditioner and the adjacent gures.

e. The appliance must always be activated paying attention that there are no obstacles for air

suction and output.

f. The air conditioner must not be used in laundries.

g. The air conditioner must be installed in a dry place only.

h. The air conditioner must not be started in presence of dangerous materials, steams or liquids.

i. Clean the air lters at least once a week.

2.3 - MOBILE INSTALLATION

The air conditioner must be installed in a suitable environment.

It is recommended to reduce solar radiation through curtains, Venetian blinds and to keep doors and windows

closed.

Before proceeding with the mobile installation, it is necessary to assemble the “SLIDER KIT” as follows (Fig. 11a):

a. Assemble the “SLIDER KIT” by slotting in the two plastic slabs.

b. Make the smaller slab slide until the desired length is reached.

c. Tighten the interlocking screws to lock the slabs.

Proceed with the mobile installation as described:

a. Position the air conditioner in front of a window or French window.

b. Position the machine side terminal (2) on the exible hose (1) as shown by Fig.8.

c. Position the terminal (3) on the opposite side of the exible hose (1) (Fig.8).

d. Insert the machine side terminal (2) on the air outlet grid of the appliance (26) as shown in gure 9.

e. Position the terminal (3) in such a way as to make air exit to the exterior (Fig.10)

f. If you possess a sliding window (vertical or horizontal) or a shutter, it is possible to use the supplied

“SLIDER KIT” (4) which allows a more efcient installation.

For the installation with KIT SLIDER, proceed as shown in gures 11 and 12.

g. Apply the adhesive seal (8) (Fig.12)

h. Position the “SLIDER KIT” (4) and adapt it (Fig.12)
