EN - 10

ENGLISH

of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned

to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note ar-

ranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or

compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to

make certain that ammable refrigerant does not remain within the lubricant. The evacuation process

shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the com-

pressor body shall be employed to accelerate this process. When oil is drained from a system, it shall

be carried out safely.

1 - DESCRIPTION OF THE APPLIANCE

1.1 - LIST OF THE COMPONENTS SUPPLIED (Fig.5)

The appliance is packaged singularly in a cardboard packaging.

The packaging can be transported by hand by two operators or loaded on a forklift.

Store the packaging singularly; do not stack it.

1. Flexible hose for air expulsion (cooling and

automatic mode)

2. Terminal for exible hose machine side

3. Terminal for exible hose for xed / slider

installation

4. SLIDER for installation on sliding / roller window

5. Terminal for slider / window installation

6. Flange for xed installation

7. Condensation discharge pipe

(dehumidication mode only)

8-9. Seal for Slider installation

10. Plugs for xed installation ange

10a. Interlocking screw

11. Remote control

12. Manual

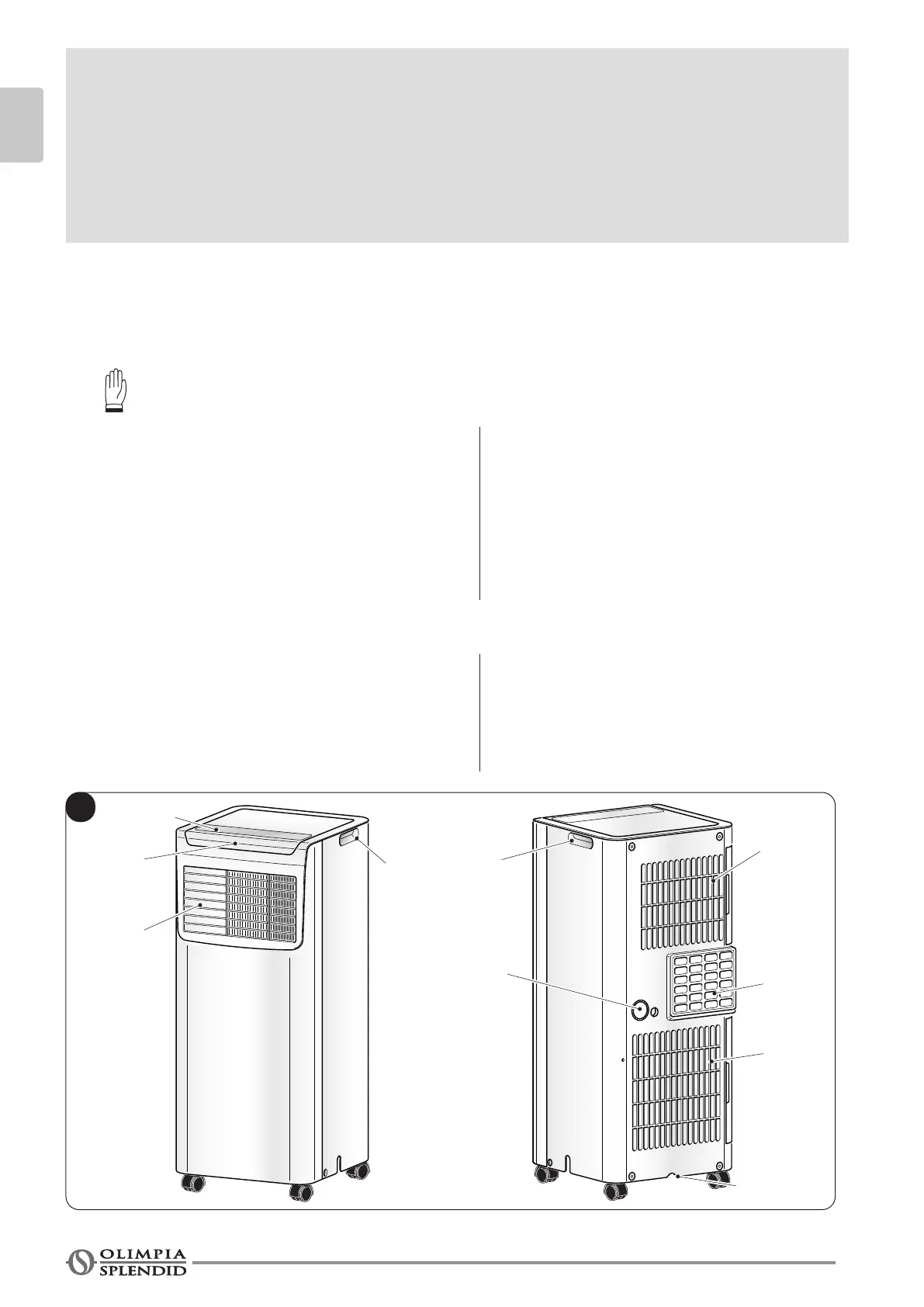

1.2 - IDENTIFICATION OF THE MAIN COMPONENTS (Fig.A)

21. Control panel

22. Air outlet grille

23. Air lter with grille

24. Plug for draining condensation water (in case

of transport, maintenance or excessive build-

up of water)

25. Air inlet

26. Air outlet

27. Handle for moving

28. Cap for condensate drain (dehumidication

mode only)

29. IR remote control receiver
