EN - 12

ENGLISH

i. Position the exible hose (1) and apply the seal (9) (Fig.12)

Extend the pipe only to the necessary extent, so that the air conveyor remains closed between

the xture shutters.

2.4 - FIXED INSTALLATION

The air conditioner can also be installed with xed holes in windows or walls.

Air ow must not be obstructed by protective mesh or similar.

Any forms of protection must have a total cross-section for air ow of not less than 140 cm

a. Position the machine side terminal (2) on the exible hose (1) as shown by Fig.8.

b. Drill a 127 mm hole in the glass or in the wall at a height above the oor included between 300 and 1200

mm (Fig.13).

c. Position the terminal (6) in the wall hole and mark the drilling points (Fig. 14-a, 14-b).

d. Remove the terminal (6) and drill 6 mm holes (Fig. 14-c, 14-d).

e. Insert the supplied wallplugs (10) in the holes (Fig. 14-e).

f. Position the terminal (6) in the hole of the wall and x it with the supplied screws (10) (Fig. 14-f, 14-g).

g. Insert the machine side terminal (2) on the air outlet grid of the appliance (26) as shown in gure 9.

h. Connect the other extremity of the exible hose (1) on the terminal (6) (Fig.14-i).

i. Close the cap (6a) when the appliance is not running (Fig.14-h).

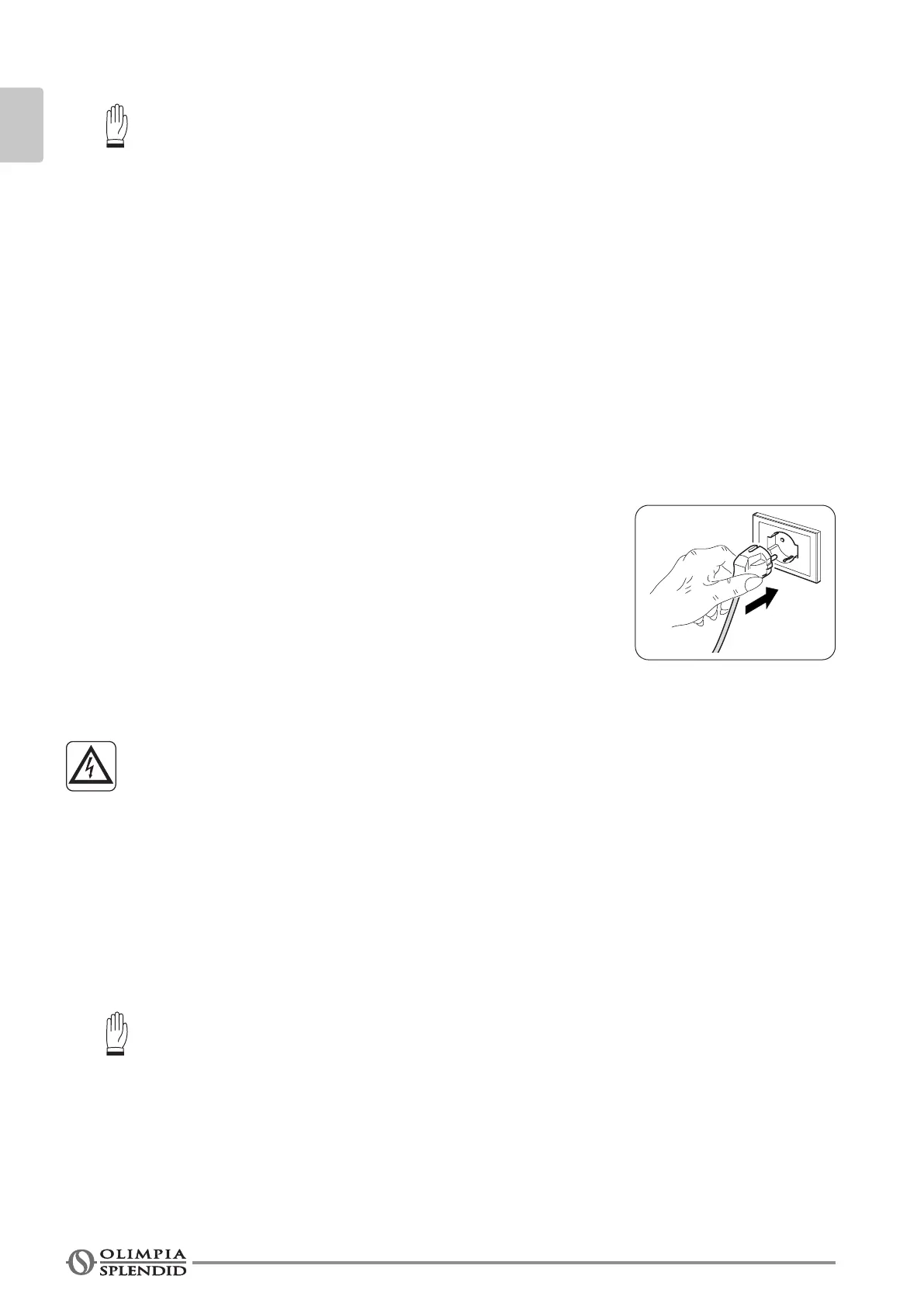

2.5 - ELECTRICAL CONNECTION

The appliance is tted with a power cable with plug.

Before connecting the air conditioner ensure that:

• The voltage and power frequency values match those specied on the

appliance plate data.

• The power line is equipped with an effective earth connection and is

correctly sized for maximum power consumption of the air conditioner.

• The appliances power network must be equipped with a suitable omnip-

olar disconnection device compliant with national installation regulations.

• The appliance is powered solely through a socket compatible with the plug provided.

• The appliance shall be installed in accordance with national wiring regulation.

CAUTION

Any replacement of the power cable must be carried out solely by Olimpia Splendid

technicalsupportorbysimilarlyqualiedpersonnel.

2.6 - DRAINAGE

Depending on the modality of use of the appliance, it is necessary to connect the condensation discharge pipe.

2.6.a-Useasdehumidier

For the correct use of the appliance, work as follows (gures 15 and 16):

a. Remove the cap (28).

b. Insert the supplied pipe (7) in the connector.

Make sure the end of the discharge pipe (7) is positioned on a drain well or in a container.

Make sure the pipe (7) is not clogged.

3 - USE OF THE APPLIANCE

The functioning modes if the air conditioner can be selected both through the remote control and through the

control panel located on board of the air conditioner.

The reception of the selected function is conrmed by the emission of a “beep” by the buzzer.
