9
12
14
15
13
23
21
22
14
19
31
30
122
Grease
5
6
118

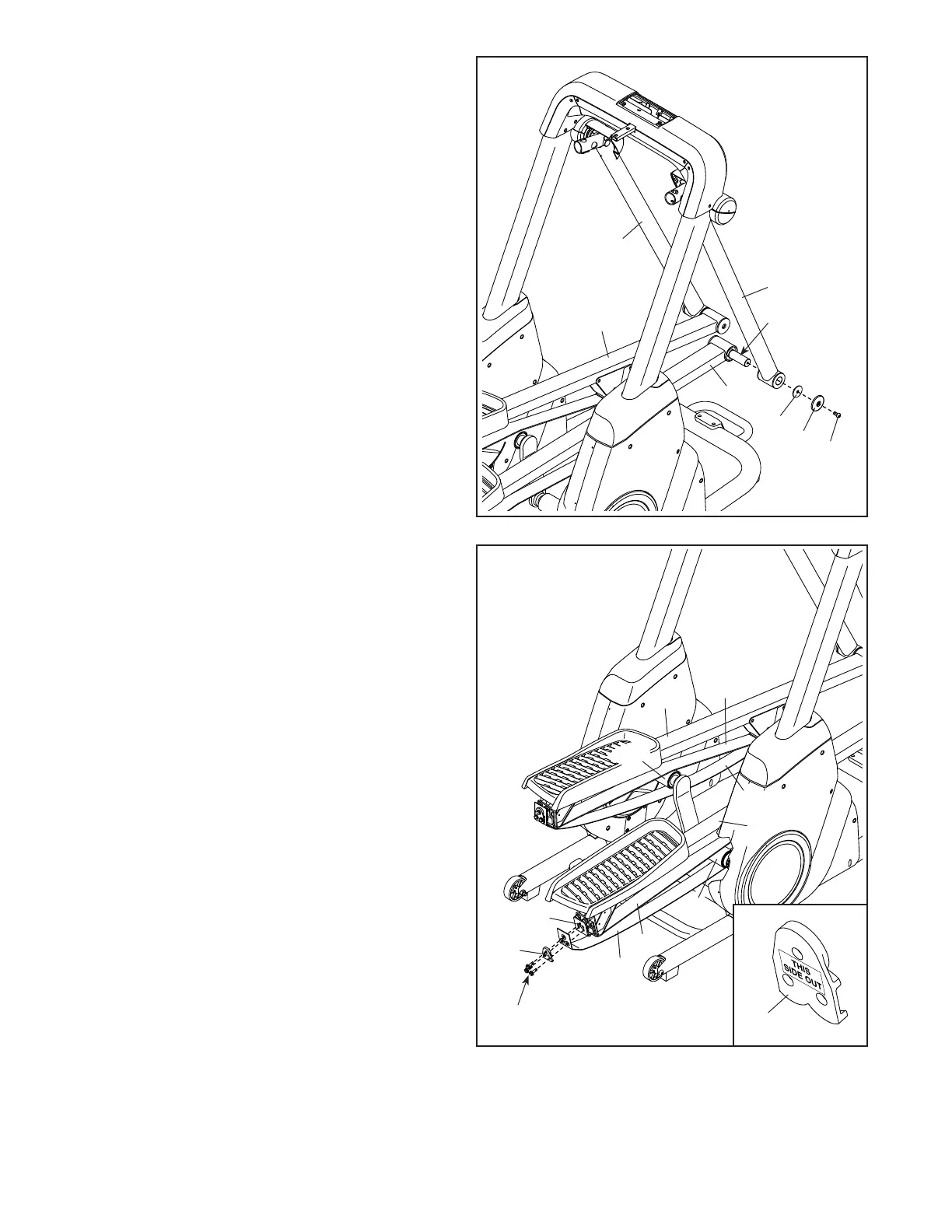

5. Identify the Right Pedal Arm (15). Using a plastic
bag to keep your fingers clean, apply a generous
amount of the included grease to the axle on the
Right Pedal Arm.
Next, insert the axle on the Right Pedal Arm (15)
into the Right Pivot Leg (13) from the direction
shown.
Attach the Right Pedal Arm (15) with an
M8 x 14mm Shoulder Screw (122), an Axle
Cover (30), and an Axle Washer (31).
Attach the Left Pedal Arm (14) to the Left
Pivot Leg (12) in the same way.
6. Identify the Strap (21) on the Right Pedal Arm
(15). Route the Strap under the Roller (89);
make sure that the Strap is not twisted.
Make sure that the Glide Belt (19) on the
Right Pedal Arm (15) is resting on top of the
Roller (89) and that the Strap (21) is routed
under the Roller.
Note: It may be helpful to have a second
person press downward on the Right Pedal
Arm (15) while you perform the following
action.
Orient a Strap Clamp (23) as shown in the
inset drawing. Attach the Strap (21) to the
Strap Bracket (22) on the Right Pedal Arm (15)
with three M6 x 20mm Screws (118) and the
Strap Clamp; start all three Screws, and then
tighten them.
Repeat this step for the Left Pedal Arm (14).
19
89
23
21
15
89
