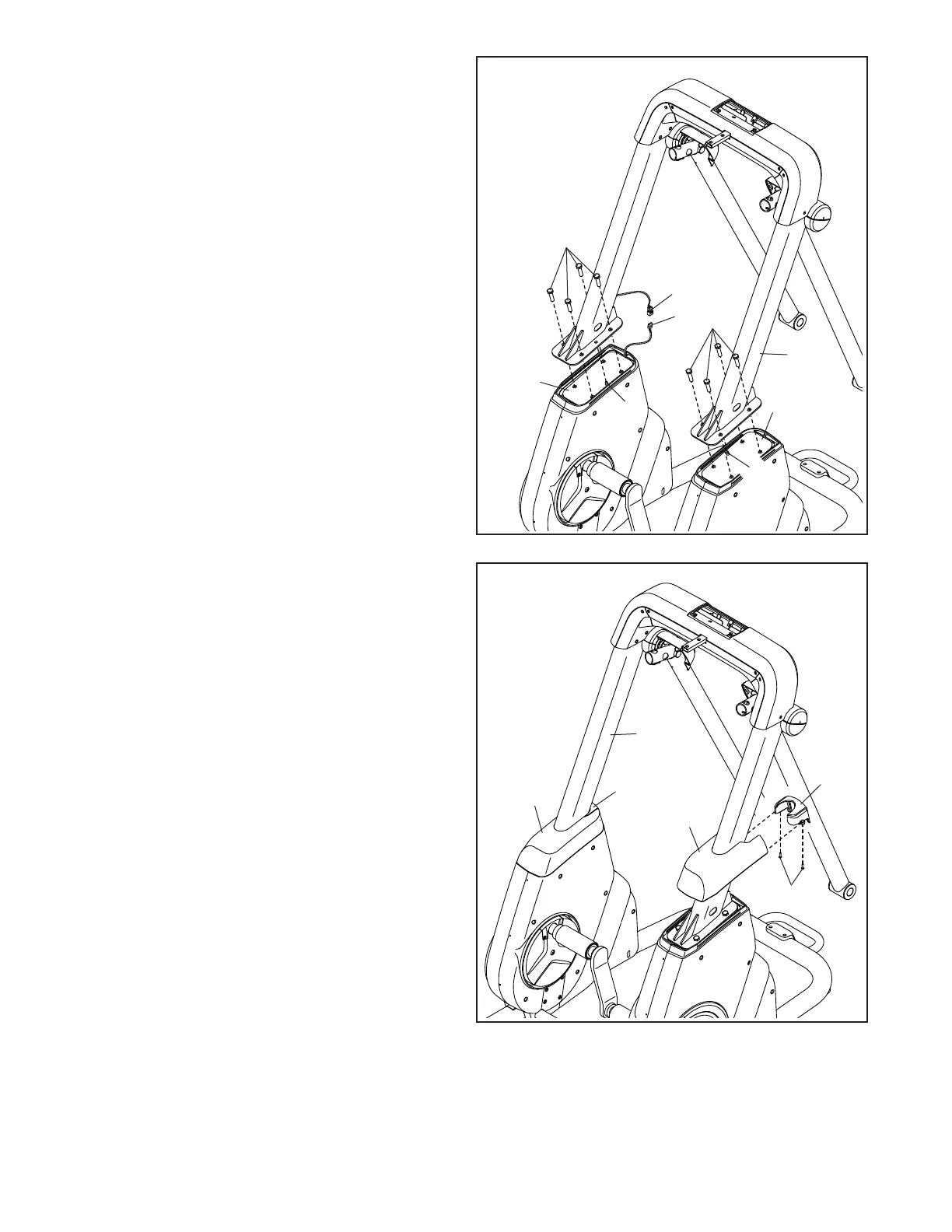

3. Do not pinch the wires. With the help of one or
two other people, set the Upright (4) on the pins
(A) on the Frame (2).
Attach the Upright (4) with eight M10 x 35mm
Screws (123); start all eight Screws, and then
tighten them.
Then, connect the 41" Wire (52) in the Upright
(4) to the 17" Wire (51) in the Frame (2).
IMPORTANT: The wire connectors should
slide together easily and snap into place
with an audible click. You must connect the
wires properly for your console to function
properly.
4. Identify the Right Shield Cover (36) and the
Right Front Shield Cover (47). Attach them
around the right side of the Upright (4) with
two M4 x 16mm Screws (141). Then, press the
Shield Covers into place.
Do not pinch the wires. Attach the Left Shield
Cover (35) and the Left Front Shield Cover
(43) around the left side of the Upright (4) in
the same way.
4
35
36
47
141
43
3
4
4
2
2
A
52
51
123
123
A
Do not
pinch the
wires
Do not
pinch the
wires
